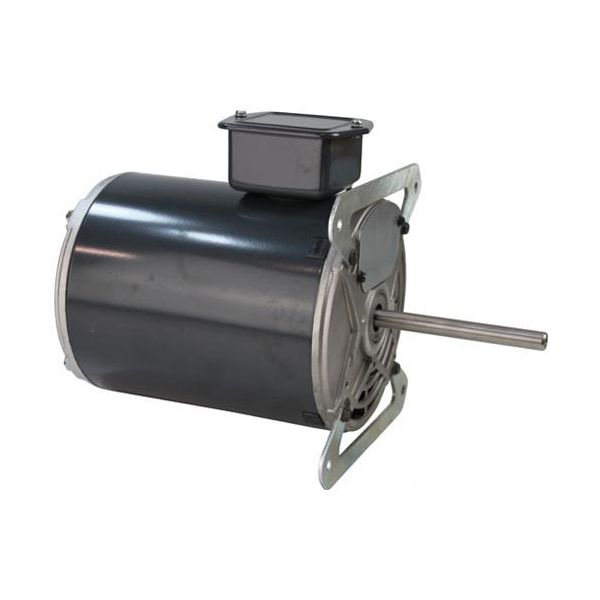

Southbend 1177452 Oven Motor W/ 2 Flats 1PH 7.2/4.5AMP CW
Special Price $556.54 Regular Price $832.82
In stock
SKU
1177452
The Southbend 1177452 Convection Oven Motor is a durable and powerful part intended for usage in equipment of the commercial kitchen. It has a voltage of 115V with power of 0.5- 0.25 HP, has two speeds and clockwise action, therefore suitable for most cooking uses. This 7.2/4.5 AMP rating performance, and the build makes it more long-lasting. Among the advantages obtained are better ventilation and high thermal stability, which plays an essential role in baking and roasting processes. This is compatible with several Southbend oven series, making it easy to replace and maintain in the most demanding commercial kitchens.
Manufacturer:
Dimensions
- Length: 10.4 In
- Width: 8.15 In
- Height: 7 In
- Weight: 23 lbs
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
