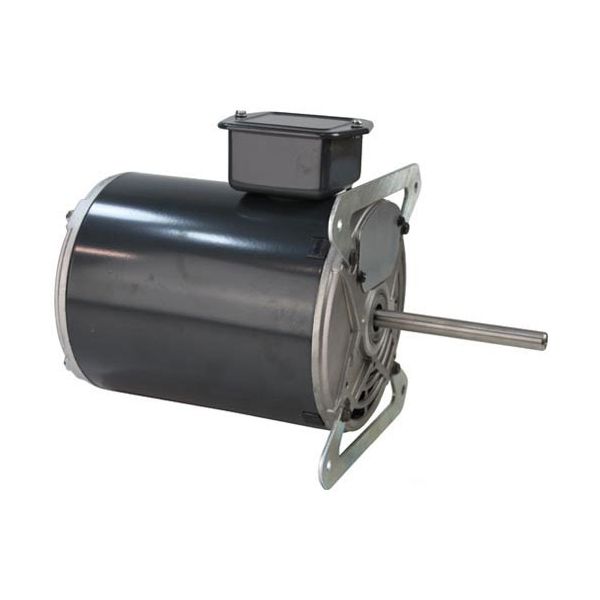

Southbend 1188523 Oven Motor W/ 2 Flats 1PH 7.2/4.5AMP CW

Be the first to review this product
Special Price $589.30 Regular Price $763.94
In stock
SKU
1188523
Add to Wish List
Electrical & Hardware, Motors & Pumps,
Manufacturer:
The Southbend 1188523 Convection Oven Motor is a heavy-duty, two-speed blower motor. It is 115V power with 0.5/0.25 HP and 7.2/4.5 amps that provide proper air circulation and proper cooking. It has a 1/2” x 4-1/2” shaft with two flats for easy installation and turns in a clockwise direction from the rear. It has dual speed control for the flexibility of cooking applications, improving heat convection and shortening cooking time. This component has the function of keeping constant temperatures, which without a doubt enhances the quality of food as well as of economical and strict working procedures in the professional kitchen.

Dimensions

  • Length: 10.4 In
  • Width: 8.15 In
  • Height: 7 In
  • Weight: 23 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1188523-oven-motor-w-2-flats-1ph-7-2-4-5amp-cw-38734-2.jpg

Product Notes

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
Reviews
Write Your Own Review
You're reviewing:Southbend 1188523 Oven Motor W/ 2 Flats 1PH 7.2/4.5AMP CW
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1188523 Motor?

Regularly inspect the motor for dust buildup and clean ventilation openings to prevent overheating. Check electrical connections for tightness and wear. Lubricate moving parts if applicable and ensure proper alignment. Always disconnect power before servicing to ensure safety.

What are common issues with the Southbend 1188523 Motor?

  • Motor overheating during operation.
  • Unusual noise or vibration.
  • Failure to start or inconsistent running.
  • Reduced airflow or weak performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power supply and check oven is cool to prevent electrical or burn hazards.

Step2: Remove rear panel and note wiring and mounting orientation of old motor.

Step3: Detach electrical connectors and unbolt motor assembly carefully.

Step4: Install new motor, aligning shaft and mounting brackets, secure firmly.

Step5: Reconnect wiring, ensure correct clockwise rotation, replace panel, restore power and test operation.

Step6: Wear insulated gloves and ensure lockout/tagout is applied for safety.
