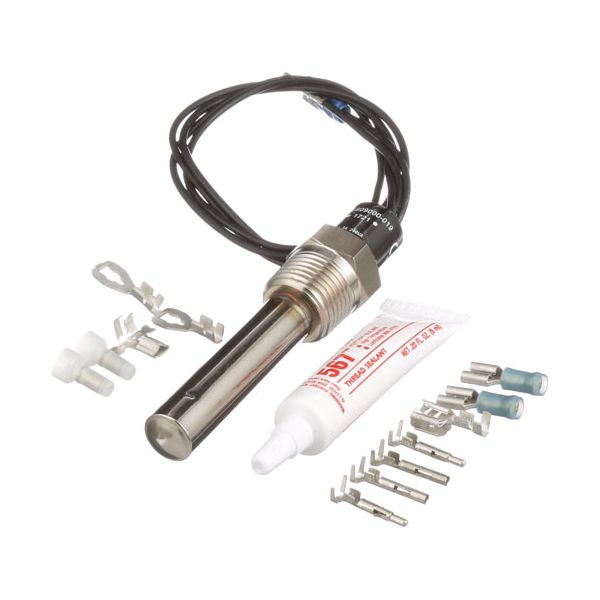

Garland 1292800 Fryer High-Limit/Safety Thermostat Kit 425°F 2-1/4" Bulb 1/2" MPT
Special Price $105.68 Regular Price $223.91
In stock
SKU
1292800
Manufacturer:
The Garland 1292800 Fryer High-Limit/Safety Thermostat Kit protects commercial equipment by interrupting power to the heating system, if the oil temperature rises beyond the proper operating limit. It uses a 2-1/4-inch bulb to sense fryer oil temperature and is normally rated to activate at 425°F, supporting the prevention of overheating during operation. Designed with a 1/2-inch MPT connection, the part is installed in the fryer's temperature sensing position to monitor heat conditions continuously. It is commonly used during routine maintenance and servicing to support proper fryer operation.
Dimensions
- Length: 10 In
- Width: 1 In
- Height: 10 In
- Weight: 0.5 lbs
Product Notes
- [ Fenwal Hi-Limit Kit 826-1177 ] [ Temp 425 Fixed ]
- [ Bulb 2-1/4" ] [ Size 1/2" Mpt ]
- Kit Includeds: 806-7545 Hi-Limit T'Stat. 807-0280 Adp
- Thermocouple, 807-1050 Split-Pin Male Terminals, 807-3448
- Piggy-Back Terminals, 807-3479 Push-On Terminals, 807-3481
- Nylon Bobtail Terminals, 807-3482 Female Disconnect Pins,
- 807-3523 Spade Terminals, 807-3524 Pin Receptacle Terminals,
- 815-8000 Loctite 567 Tube,
- 819-5393 Instruction Sheet.
- Does Not Come W/Lead Wire Adapter H-132A, # 38-1524.
- Frymaster Fryer Bimh-52, Fh-50-Sc, Fph-250-Sd (2Nd High
- Limit), Gf14, Mac(50,51,150,151,250,251,350,351 All 2Nd
- Hi-Limit), Fm45 Mach52, Mj35, Mj45, Mj56, Mj235,
- Series: H50, Mjh-(50,250) Hi Effeciency.
- Mjcf/Mjcfe, Series: Fm35,Biph14, Bire14, Fph17, H14, H14
