Montague 2038-9 Air Shutter
Special Price $8.74 Regular Price $9.33
In stock
SKU
2038-9
Manufacturer:

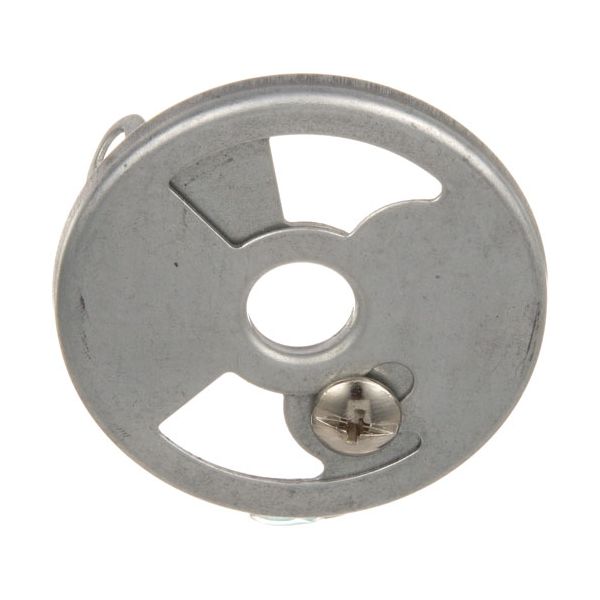

The Montague 2038-9 Air Shutter is used to control combustion by changing the air opening that combines with gas before ignition to allow the flame to be established with a regulated proportion of air to fuel. The size of the intake is adjusted by rotation or positioning of the shutter, which varies the amount of primary air that reaches the burner. The element is fitted on the venturi of the burner of compatible gas cooking equipment, which connects to standard burner fittings and is clamped down when installed.
Dimensions
- Length: 0.806 In
- Width: 0.806 In
- Height: 0.124 In
- Weight: 0.146 lbs
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
