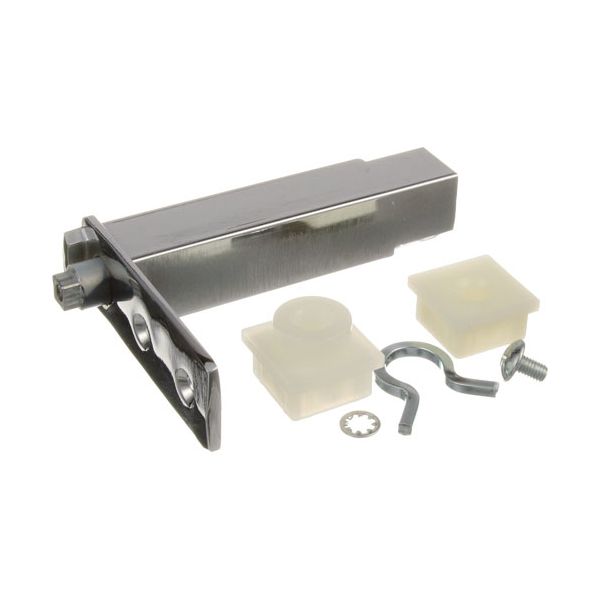

Glenco 2HAH0700-001 Concealed Cartridge Door Hinge

Rating:
5 5 1
1  Review Add Your Review
Special Price $13.70 Regular Price $51.89
In stock
SKU
2HAH0700-001
Add to Wish List
Electrical & Hardware, Hinge Parts, Shop by manufacturers
Manufacturer:
The Glenco 2HAH0700-001 Concealed Cartridge Door Hinge is a system that regulates the movement of the door with the assistance of an internal spring assembly that regulates the force used in the process of door opening and closing. The cartridge mechanism controls the movement of the door by following a fixed pivot. This hinge is fitted in the door frame either on the top or bottom of the cabinet opening and is not visible. It is intended to fit on the doors of commercial equipment, and it aligns the door with the frame structure.

Dimensions

  • Length: 4.5 In
  • Width: 3.125 In
  • Height: 4.5 In
  • Weight: 0.52 lbs
https://partsfe.com/media/catalog/product/g/l/glenco-2hah0700-001-power-cartridge-concealed-hinge-14324-2.jpg

Product Notes

  • Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
  • Body 3-13/16" Long
  • Used Wih Left Or Right Mounting Brackets
  • Series Chg R56, Standard Kiel 2856,
  • Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
  • Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
  • Kr36, Kr48, Kr74, Ucr27
  • Norlake Refrigerator Nr(211,482,763), Lr(152,192)
  • Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
  • T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
  • Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
  • Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc
BEVERAGE AIR:
00C34-030D-01, 00C34030D01, 401-216A-01, 401-454A-01, BEV401-216A-01, BEV401-454A-01
CHG:
A1808, CHGR56-1010, GR56-1010, R56-1010
HOSHIZAKI:
3A6258-01, HOS3A6258-01
KAIRAK:
KROWNE:
NORLAKE:
SILVER KING:
43425, 99467, SVK99467
STANDARD KEIL:
STAR MFG:
TRAULSEN:
VICTORY:
Reviews 1
Write Your Own Review
You're reviewing:Glenco 2HAH0700-001 Concealed Cartridge Door Hinge
Your Rating
FAQS
Customer Questions
What maintenance is required for the Glenco 2HAH0700-001 Hinge?

Clean the hinge and the surrounding cabinet area regularly to remove dust and debris. Lubricate moving parts lightly to ensure smooth concealed operation. Check screws and cartridge alignment and tighten if needed.

What are common issues with the Glenco 2HAH0700-001 Hinge?

  • Misalignment is causing uneven door closure.
  • Stiff or noisy hinge movement.
  • Loose mounting screws or instability.
  • Cartridge wear is leading to inconsistent operation.
  • Door sag or uneven alignment over time.
  • Reduced smoothness in the concealed mechanism.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the equipment and support the door to prevent sudden movement.

Step2: Remove the worn hinge and inspect the mounting brackets for damage.

Step3: Position the new concealed hinge in the mounting location, aligning the mounting holes.

Step4: Secure the hinge with the original fasteners and tighten evenly.

Step5: Verify proper door alignment and smooth self-closing operation.
