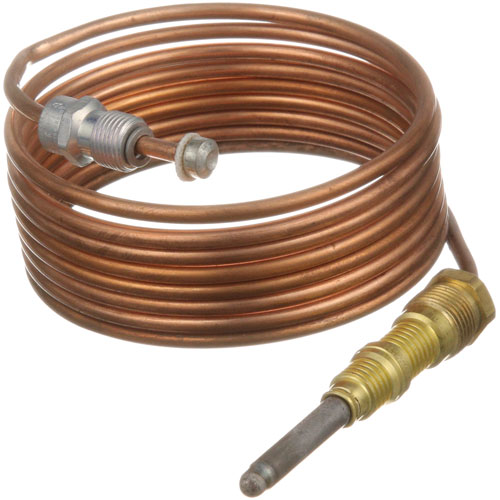

Vulcan Hart 412788-60 Oven Thermocouple 72"

SKU: 412788-60 1-412788-60 Brand:
Vulcan Hart
Availability:
In Stock
(3)
$41.38 Price reduced from $53.75
Save $12.37
Have a Question? +1 (866) 863-0907

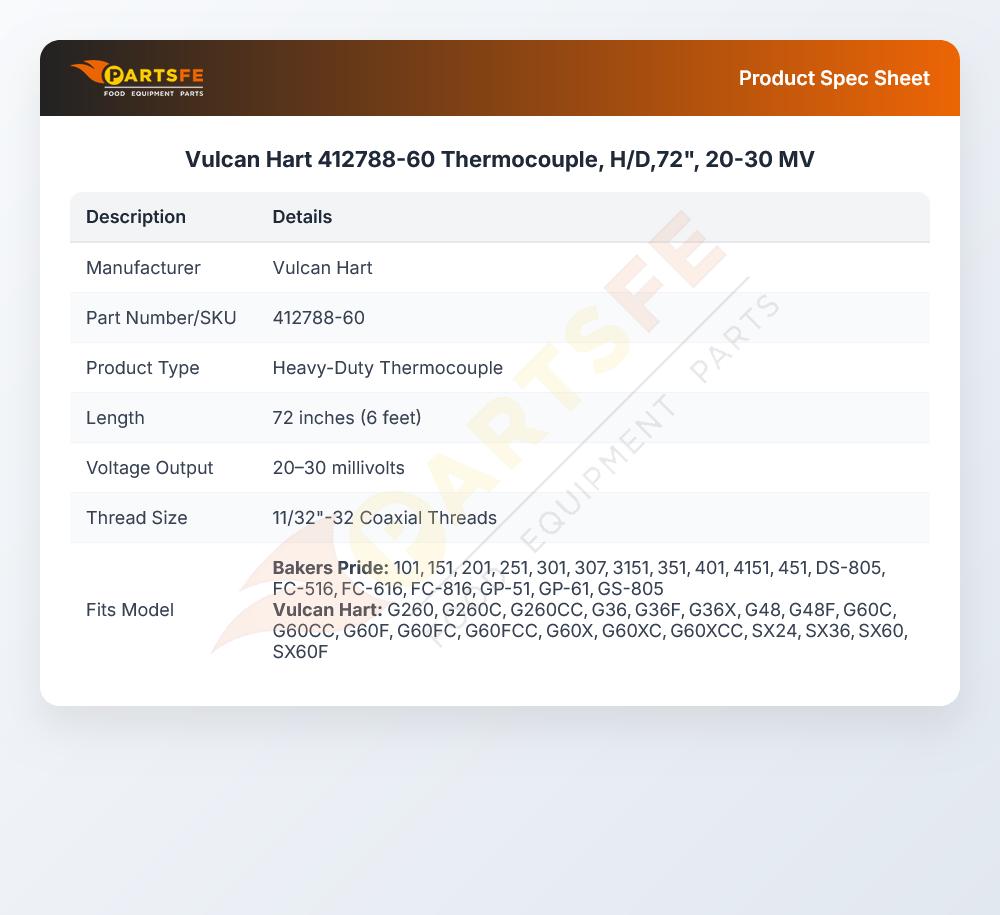

Specifications:

  • Heavy-Duty 72" Thermocouple, 20-30 Milevolt.
  • Coaxial Thermocouple Threads = 11/32"-32

Description

The Vulcan Hart 412788-60 Oven Thermocouple 72" works on the concept of detecting the temperature change by producing a small electrical voltage in the presence of heat to detect and regulate the flow of gas through appliances. It operates by generating a thermoelectric current, which makes the gas valve either open or close depending on changes in temperature. This thermocouple is built to be constructed directly into the burner assembly of commercial cooking equipment, so that it is placed near the flame to detect the presence of heat, and can be properly operated.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 3 in
  • Height: 1 in
  • Width: 2.5 in

BAKERS PRIDE:

AS-M1296A BKPM1296A BKPM1296X M1296A M1296X

COOKING PERFROMANCE GROUP:

351302170058

HOBART:

00-428305-00001 428305-00001 428305-1 HOB00-428305-00001 HOB428305-00001 HOB428305-1

VULCAN HART:

00-412788-00060 00-428305-00001 428305-00001 428305-1 VH00-428305-00001 VH428305-00001 VH428305-1

Step1: Turn off the gas supply and unplug the appliance.

Step2: Remove the old thermocouple from the pilot assembly.

Step3: Inspect the pilot bracket and gas fittings for wear or damage.

Step4: Insert the new thermocouple into the pilot flame bracket.

Step5: Secure with the mounting screw provided.

Step6: Attach the thermocouple nut to the gas valve inlet.

Step7: Turn on the gas and test the pilot flame to ensure proper detection.

Step8: Verify the thermocouple shuts off the gas when the flame is extinguished.

  • What maintenance is required for the Vulcan Hart 412788-60 Thermocouple?

    Regularly inspect the thermocouple for corrosion, soot buildup, or loose connections. Ensure it is properly aligned with the pilot flame for accurate temperature sensing. Always follow safety precautions when handling gas components.

  • What are common issues with the Vulcan Hart 412788-60 Thermocouple?

    • Failure to detect or maintain the pilot flame.
    • Intermittent or inconsistent flame ignition.
    • Corrosion or buildup affecting signal accuracy.
    • Loose or damaged connections causing system shutdown.
