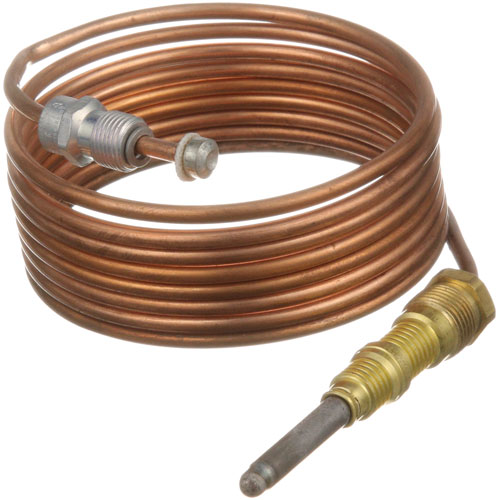

Bakers Pride M1296X Oven Thermocouple 72" Long

Flame Temperature Sensing:
Responding to heat produced by the burner flame, the thermocouple generates a small electrical signal based on the temperature at its sensing junction. This signal provides the connected gas control with information about the flame condition during normal oven operation.

Gas Safety Signal:
Providing a flame-status signal to the connected safety control, the thermocouple supports the gas system's response to the detected flame condition. This interaction allows the gas control circuit to distinguish between an operating flame condition and the absence of sufficient heat at the sensing end.

Replacement Guidelines:
Replace the Bakers Pride M1296X Pizza Oven Thermocouple when it is damaged, physically deteriorated, or no longer provides the required flame-sensing function. Select the replacement by matching the thermocouple configuration, connection arrangement, length, and applicable Bakers Pride pizza oven model.

Common Failure Symptoms:

• Pilot flame does not remain properly established.
• Burner operation is interrupted after the pilot is lit.
• Thermocouple shows visible damage or deterioration.
• Sensing end is damaged or deformed.
• Thermocouple connection is loose or physically compromised.

Equipment Compatibility:
The Bakers Pride M1296X Pizza Oven Thermocouple 72" is an OEM component designed for compatible Bakers Pride commercial pizza ovens using the corresponding thermocouple and gas-control arrangement. Verify the equipment model and thermocouple configuration before selecting the component.

Technical Specifications:
Part Number: M1296X
Brand: Bakers Pride
Component Type: Pizza Oven Thermocouple
Length: 72"

Step1: Turn off the gas supply and disconnect the oven from power.

Step2: Remove the old thermocouple from the burner assembly.

Step3: Clean the burner connection area to ensure proper contact.

Step4: Install the new thermocouple, inserting it securely into the pilot flame bracket.

Step5: Reconnect the thermocouple wiring to the gas valve.

Step6: Restore gas and power, then test for proper pilot operation and flame safety.

• What maintenance is required for the Bakers Pride M1296X Thermocouple?

  Inspect the thermocouple regularly for physical damage, corrosion, or loose connections that may affect flame detection. Ensure the 72-inch lead is properly routed and not pinched or exposed to excessive heat. Clean the sensor tip gently to remove grease buildup for accurate millivolt readings. Always shut off gas and power before servicing to maintain safety.

• What are common issues with the Bakers Pride M1296X Thermocouple?

  • Erratic or inaccurate temperature readings.
  • Open or shorted wiring.
  • Corroded or burned tip.
  • Intermittent oven ignition failure.

• What does the Bakers Pride M1296X Pizza Oven Thermocouple sense?

  The Bakers Pride M1296X Pizza Oven Thermocouple senses temperature at the designated sensing point within the pizza oven.

• How does a thermocouple provide input to an oven control system?

  A thermocouple generates a temperature-related electrical signal that provides the control system with information about the sensed temperature.

• What does the 72" specification indicate for the M1296X?

  The 72" specification identifies the thermocouple's length, defining the physical reach available for routing between its sensing point and connection point.

• Why is a thermocouple used in a pizza oven?

  A thermocouple provides temperature-sensing input that allows the pizza oven's heating control system to respond to the sensed operating temperature.

• When can maintenance be relevant for a pizza oven thermocouple?

  Maintenance can be relevant when the thermocouple or its connections require inspection because temperature sensing or control behavior is no longer consistent.
