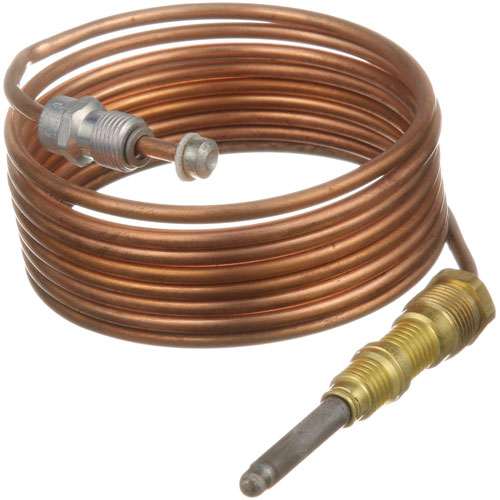

Vulcan Hart 00-428305-00001 Range Thermocouple 72" 20-30mV

SKU: 00-428305-00001 1-00-428305-00001 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$41.38 Price reduced from $53.75
Save $12.37
Have a Question? +1 (866) 863-0907

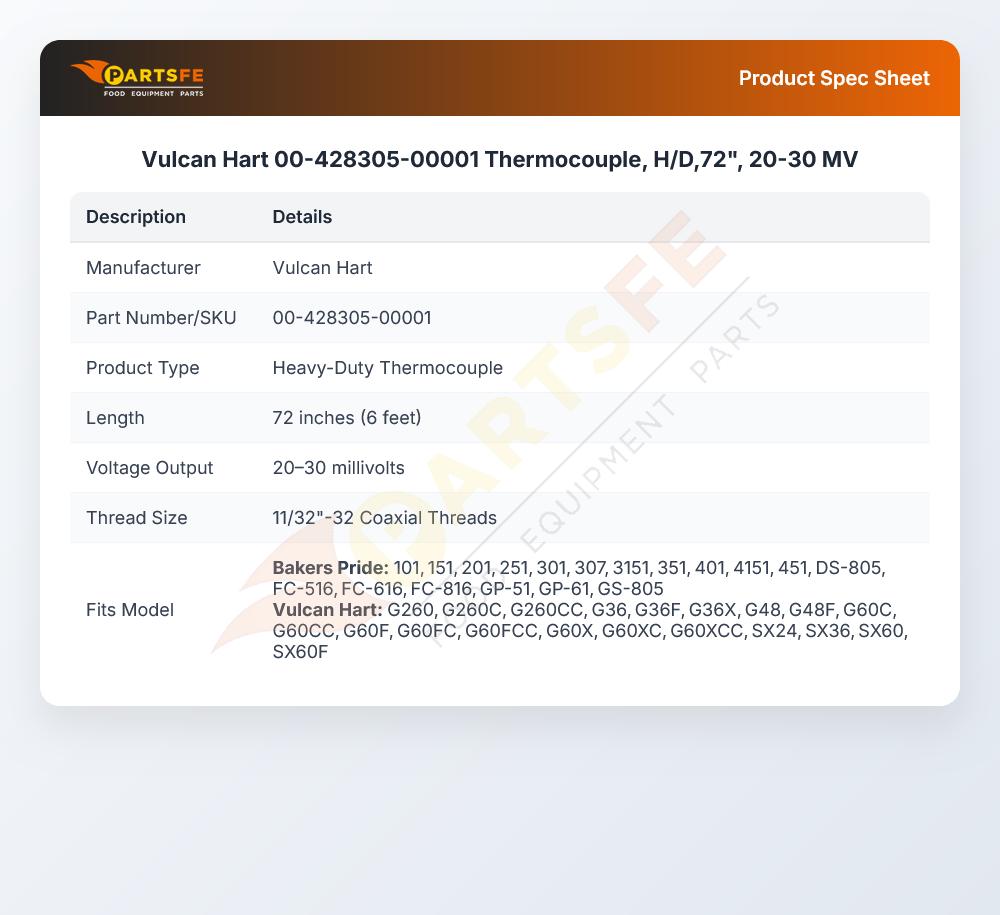

Specifications:

  • Heavy-Duty 72" Thermocouple, 20-30 Milevolt.
  • Coaxial Thermocouple Threads = 11/32"-32

Description

The Vulcan Hart 00-428305-00001 Thermocouple is designed to provide accurate and reliable flame sensing on commercial ranges to keep them safe and operating consistently. This 72-inch thermocouple produces 20-30 millivolts of electrical current when a pilot flame is present the gas valve to stay open and permitting your range to operate safely. It is designed to withstand high temperatures in the kitchen and even when the pilot is off it does not allow the flow of gas which is a preventative measure against accidents. This thermocouple is simple to install making it a vital part of the kitchen, as it is both accurate and durable.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 3 in
  • Height: 1 in
  • Width: 2.5 in

BAKERS PRIDE:

AS-M1296A BKPM1296A BKPM1296X M1296A M1296X

COOKING PERFROMANCE GROUP:

351302170058

HOBART:

428305-00001 428305-1 HOB00-428305-00001 HOB428305-00001 HOB428305-1

VULCAN HART:

00-412788-00060 412788-60 428305-00001 428305-1 VH00-428305-00001 VH428305-00001 VH428305-1

Step1: Turn off gas supply and electrical power to range, allow appliance to cool completely before servicing.

Step2: Remove burner assembly or access panel to reach existing thermocouple connection at safety valve.

Step3: Disconnect old thermocouple from gas valve and pilot bracket, noting routing path.

Step4: Install thermocouple in same position, secure tip in pilot flame area, tighten connection to valve.

Step5: Restore gas supply, test ignition, and check for proper flame and no gas leaks using soapy water.

  • What maintenance is required for the Vulcan Hart 00-428305-0000 Thermocouple?

    Regularly inspect the thermocouple for signs of damage, corrosion, or loose connections. Clean the tip gently to remove grease or debris that may affect flame sensing. Ensure proper alignment with the pilot flame for accurate operation. Always turn off gas supply before servicing.

  • What are common issues with the Vulcan Hart 00-428305-00001 Thermocouple?

    • Range failure to detect pilot flame properly.
    • Weak or inconsistent millivolt output.
    • Burner not staying lit after ignition.
    • Loose or damaged connection points.
    • Corrosion or buildup on thermocouple tip.
