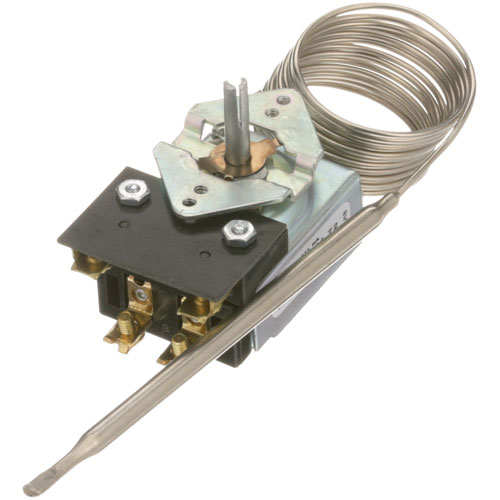

APW 56743 Thermostat 100°-550°F 1/4" X 5-9/16" Bulb 72" CAP KA

SKU: 56743 1-56743 Brand:
APW
Availability:
In Stock
(0)
$115.76 Price reduced from $147.52
Save $31.76
Have a Question? +1 (866) 863-0907

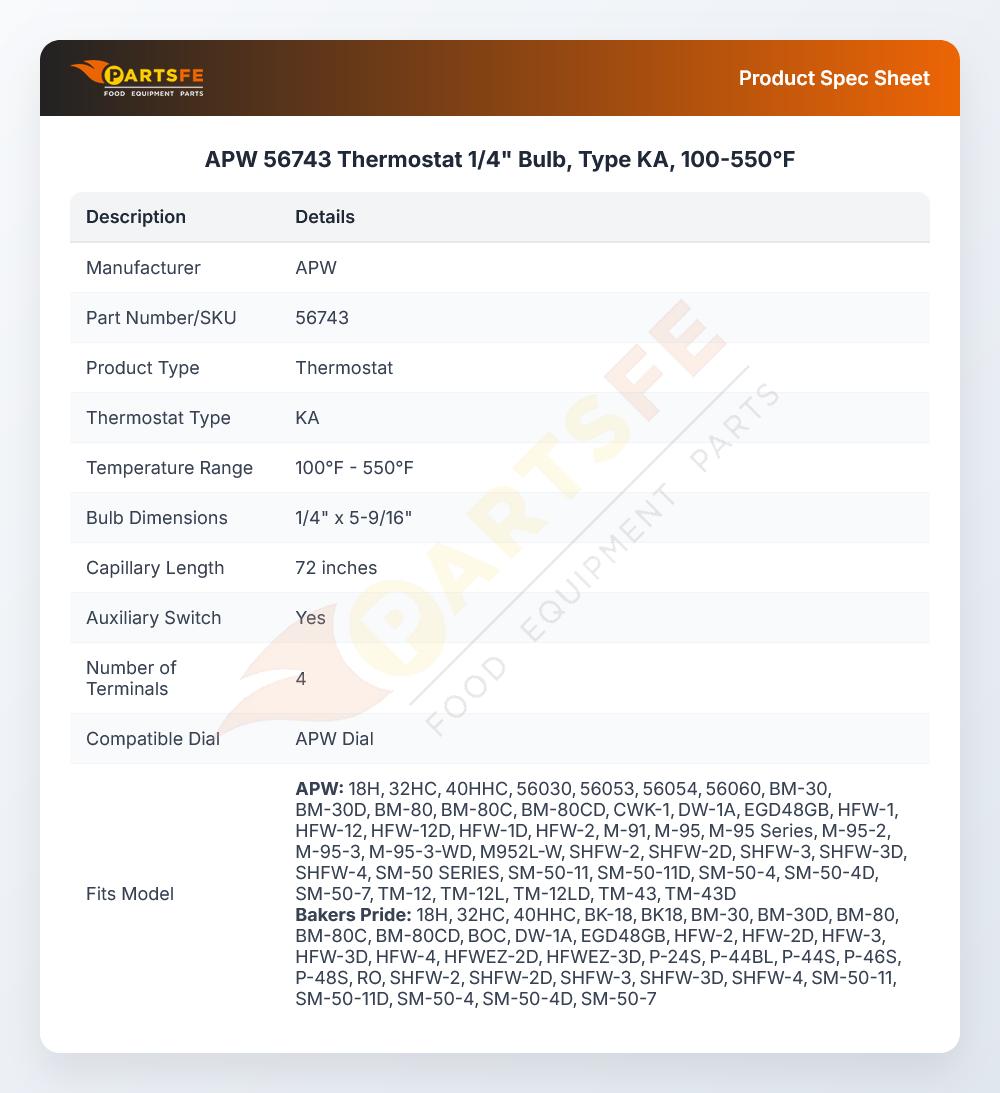

Specifications:

  • [ Type - Ka ] [ Temp 100-550 ] [ Bulb 1/4" X 5-9/16" ]
  • [ Cap 72" ] Has Auxillary Switch. 4 Terminals.
  • Apw Dial Is # 22-1219, 550-100
  • Bakers Pride Includes Knob, Ap Sells Separate As # 22-1204
  • Apw Toaster M9502, M95-3
  • Apw Warmer Hfw(2,2D,3,3D,4,4D,5,5D) Bm-30D,
  • Series: Bm-80 & Bw & Sm-50 & Sw & Tm-43D Needing 72" Cap.
  • Bakers Pride Model ?

Description

The APW 56743 Thermostat establishes an adjustable temperature control point for heating equipment. The thermal changes reach the sensing bulb, initiating a response that travels through the capillary to the switching section. The bulb measures 1/4" across and 5-9/16" along its length, whereas the capillary extends 72". The selectable range covers 100°-550°F, and KA identifies the type. When the sensed condition reaches the preset setting, internal contacts change state, altering electrical continuity through the heater circuit and controlling heat passage.

Dimensions:

  • Weight: 0.7 lbs
  • Length: 6.5 in
  • Height: 2.5 in
  • Width: 1.75 in

APW WYOTT:

56427 56428 56540 APW56427 APW56428 APW56540 APW56743

BAKERS PRIDE:

AS-M1110A BKPM1020X BKPM1110X M1020X M1024X M1110A M1110X

U-LINE:

5300-015 5300-088 5300-08H KA1048-36 KA601-72 TA125A028
