Frymaster 8072274 Fryer High-Limit/Safety Thermostat Kit 425°F 2-1/4" Bulb 1/2" MPT
Special Price $105.68 Regular Price $223.91
In stock
SKU
8072274
Manufacturer:
The Frymaster 8072274 High-Limit/Safety Thermostat Kit operates by monitoring fryer oil temperature and opening the electrical circuit when the temperature reaches 425°F, stopping power to the heating elements during high-temperature conditions. Its 2-1/4-inch sensing bulb responds to changes in oil temperature, while the 1/2-inch MPT fitting provides a secure connection within the fryer assembly. This kit is installed in the fryer's temperature control system, where it operates alongside the heating elements to oversee high-limit operation. It includes the thermostat and related installation parts required for compatible commercial fryers, supporting consistent temperature management throughout cooking cycles.
Dimensions
- Length: 10 In
- Width: 1 In
- Height: 10 In
- Weight: 0.5 lbs
Product Notes
- [ Fenwal Hi-Limit Kit 826-1177 ] [ Temp 425 Fixed ]
- [ Bulb 2-1/4" ] [ Size 1/2" Mpt ]

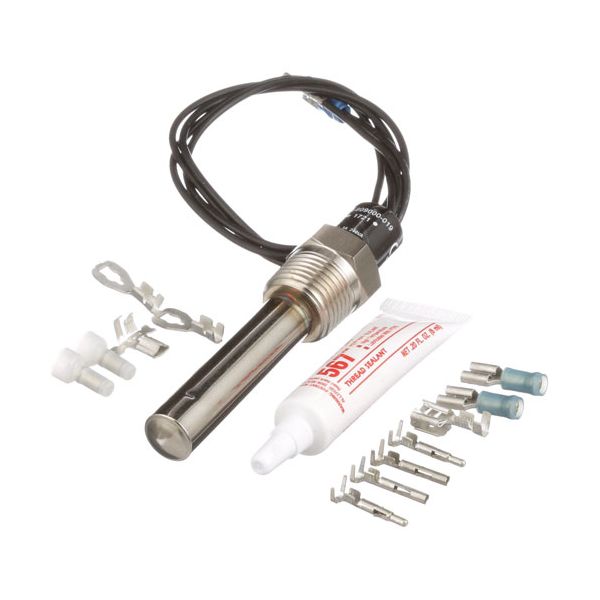

- Kit Includeds: 806-7545 Hi-Limit T'Stat. 807-0280 Adp
- Thermocouple, 807-1050 Split-Pin Male Terminals, 807-3448
- Piggy-Back Terminals, 807-3479 Push-On Terminals, 807-3481
- Nylon Bobtail Terminals, 807-3482 Female Disconnect Pins,
- 807-3523 Spade Terminals, 807-3524 Pin Receptacle Terminals,
- 815-8000 Loctite 567 Tube,
- 819-5393 Instruction Sheet.
- Does Not Come W/Lead Wire Adapter H-132A, # 38-1524.
- Frymaster Fryer Bimh-52, Fh-50-Sc, Fph-250-Sd (2Nd High
- Limit), Gf14, Mac(50,51,150,151,250,251,350,351 All 2Nd
- Hi-Limit), Fm45 Mach52, Mj35, Mj45, Mj56, Mj235,
- Series: H50, Mjh-(50,250) Hi Effeciency.
- Mjcf/Mjcfe, Series: Fm35,Biph14, Bire14, Fph17, H14, H14
