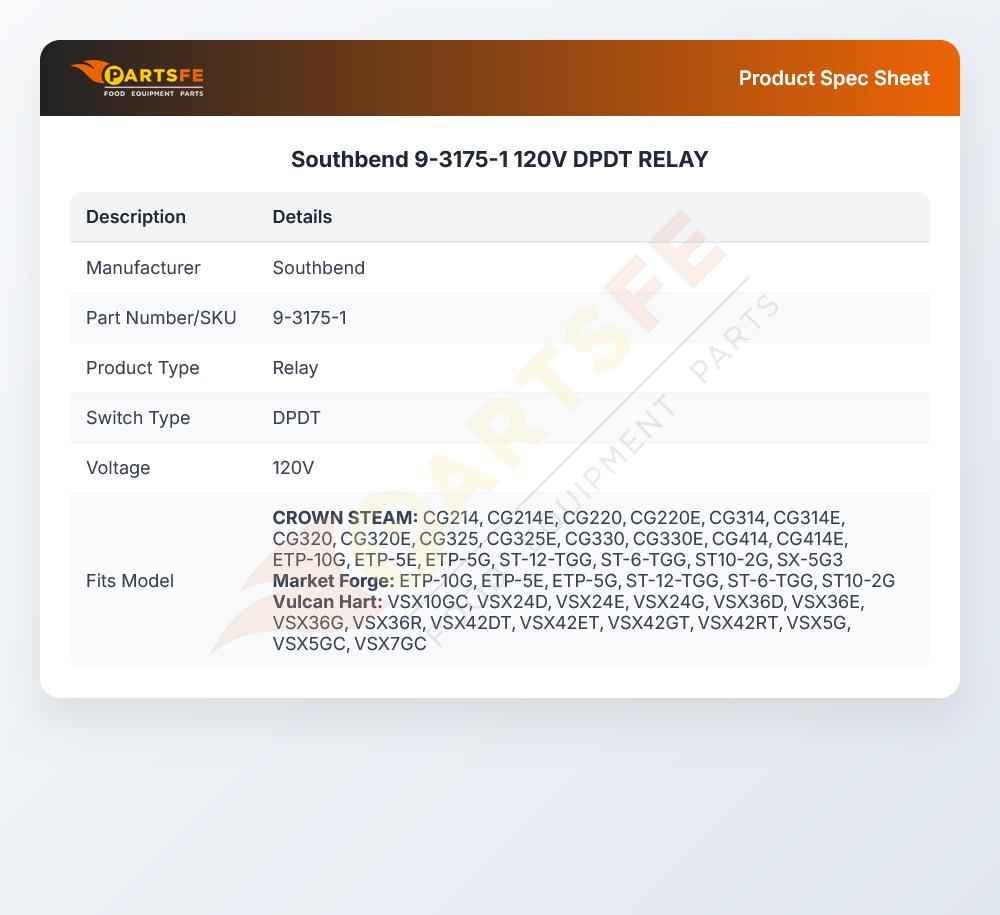

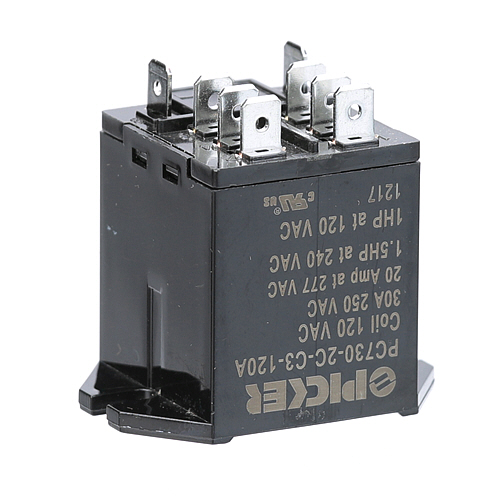

Southbend 9-3175-1 Gas Broiler Relay DPDT 120V

The Southbend 9-3175-1 Gas Broiler Relay directs electrical connections between control circuits through mechanically shifted contacts. A 120V coil receives the specified electrical input, creating the magnetic field required to reposition the internal contact set. Two poles operate separately within the double-pole double-throw arrangement, with each section selecting between two terminal paths. This configuration allows separate wiring circuits to switch through one energized relay. The contact positioning establishes the required electrical route for connected controls, while de-energization returns the contacts to the corresponding resting state.
