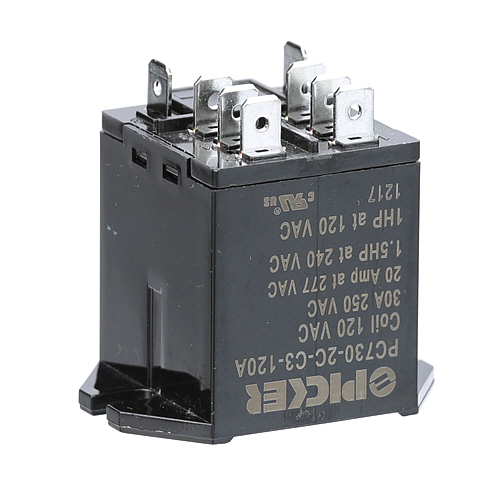

Vulcan Hart 00-843947 DPDT Relay 120V

SKU: 00-843947 1-00-843947 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$301.37 Price reduced from $346.40
Save $45.03
Have a Question? +1 (866) 863-0907

Description

The Vulcan Hart 00-843947 DPDT Relay is a reliable double-pole, double-throw for an electrical circuit of 120V. This flexible component offers the ability to control the circuits in high-end kitchen appliances and enables smooth transitions between circuits. Designed to be rugged it provides for effective and safe use in commercial food service operations with minimal breakdown time. Its strong construction guarantees its long-term work in conditions that are as severe as possible, which makes it an indispensable component of maintaining the best performance and energy efficiency in commercial kitchens.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 2 in
  • Height: 1.4 in
  • Width: 1.95 in

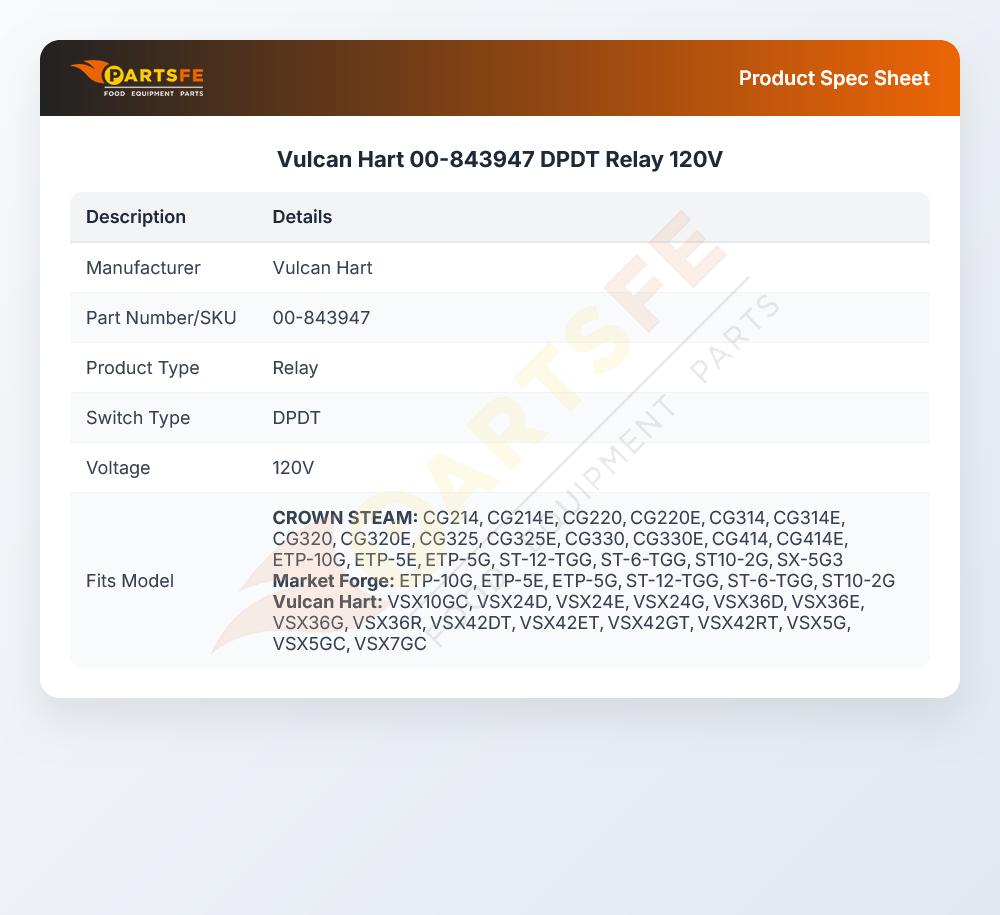

Manufacturer Name: Vulcan Hart
Product Number: 00-843947
OEM Part Number: 00-843947
Product Description: Relay, Dpdt, 120V
Similar Models:843947 - Hobart, 97-5991 - Market-Forge, 97-5992 - Market-Forge, 979079 - Market-Forge, 97-9079 - Market-Forge, 9-3174-1 - Southbend, 9-3175-1 - Southbend, 93321 - Southbend, 9332-1 - Southbend, 843947 - Vulcan-Hart
Dimensions:
Length:2in/5.08cm
Width:1.95in/4.95cm
Height:1.4in/3.56cm
Weight:0.5lbs/226.8g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

CROWN STEAM:

9332-1

HOBART:

843947

MARKET FORGE:

97-5991 97-5992 97-9079 979079

SOUTHBEND:

9-3174-1 9-3175-1 9332-1 93321

VULCAN HART:

843947

Step1: Disconnect power at breaker and check zero voltage, using lockout/tagout procedure.

Step2: Remove access panel and label existing wiring connections, referencing wiring diagram.

Step3: Pull out old relay and match terminal layout safely.

Step4: Insert new relay securely into socket, ensuring proper alignment.

Step5: Reconnect wires as labeled and tighten.

Step6: Reassemble panel, restore power, test appliance operation safely and monitor initial cycle.

  • What maintenance is required for the Vulcan Hart 00-843947 Relay?

    Inspect the relay periodically for signs of overheating, corrosion, or burnt contacts to ensure accurate switching. Tighten all terminal connections to prevent loose wiring and intermittent operation. Keep the relay clean and dry, and verify correct input to avoid coil stress or failure.

  • What are common issues with the Vulcan Hart 00-843947 Relay?

    • Relay not switching due to coil failure.
    • Pitted or welded contacts causing constant on/off state.
    • Intermittent operation from loose or corroded terminals.
    • Overheating leading to burnout or reduced performance.
    • Electrical noise or control signal failure affecting actuation.
