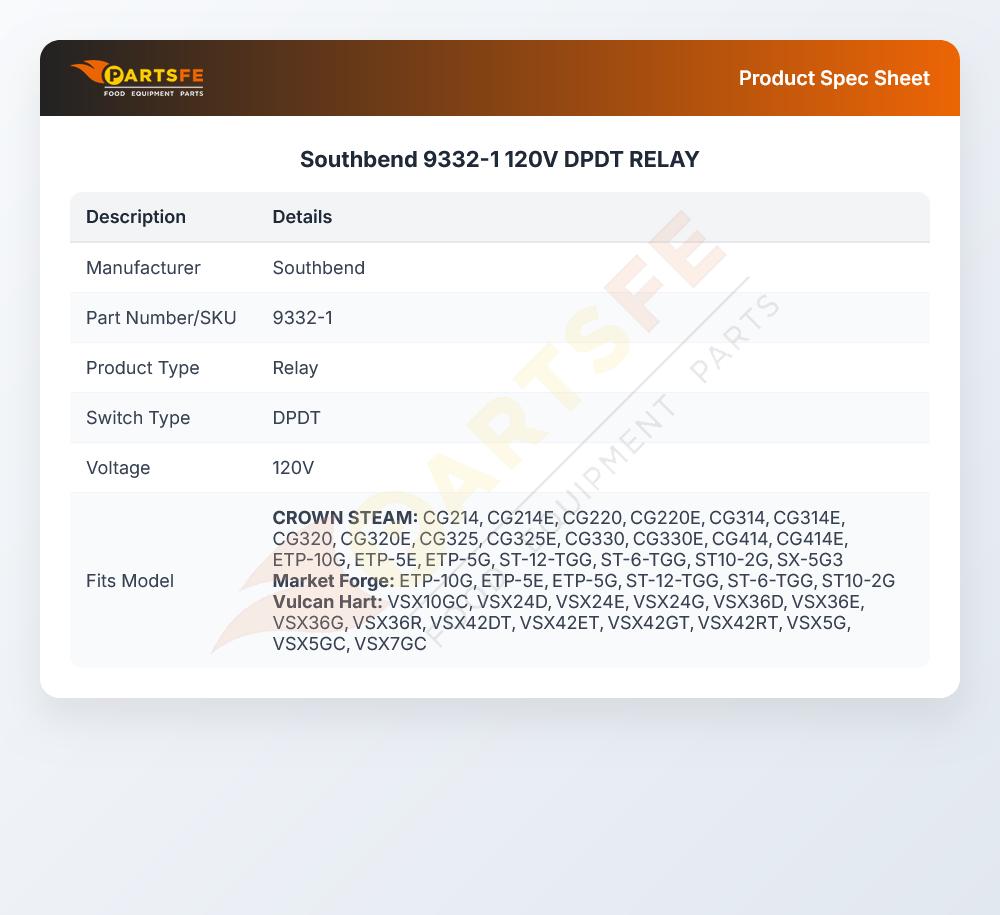

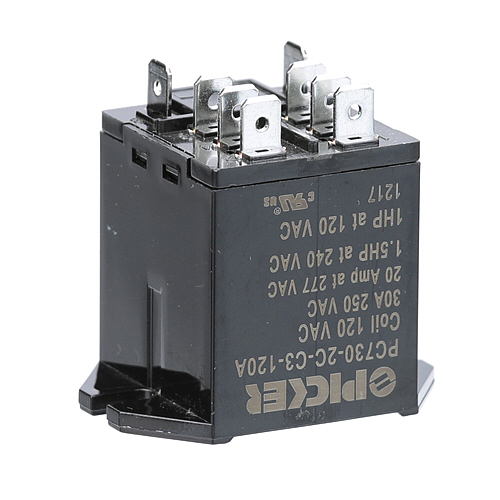

Southbend 9332-1 Gas Broiler Relay DPDT 120V

The Southbend 9332-1 Gas Broiler Relay regulates electrical transfer within the heating control wiring. A 120V coil receives electrical input and creates the magnetic force needed to shift internal contacts. The double-pole double-throw arrangement contains two separately switched poles, with each pole selecting between two terminal positions. This layout allows separate circuit paths to change state through one relay. The contact movement redirects current between connected terminals, linking control signals with associated heating circuitry and establishing the electrical state required by the control circuit.
