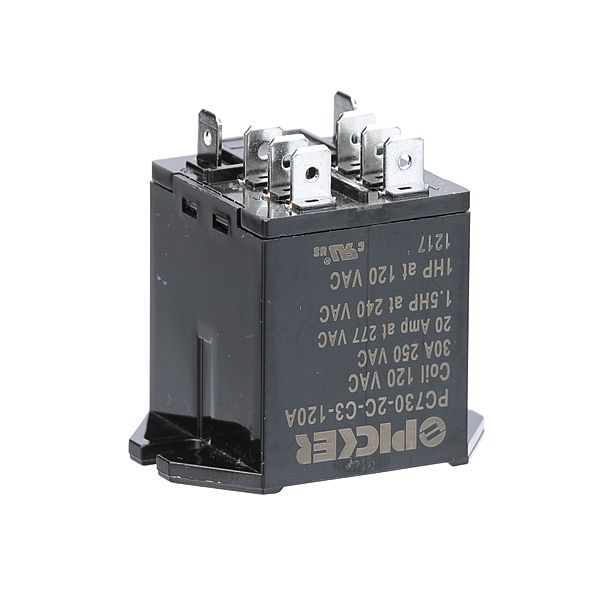

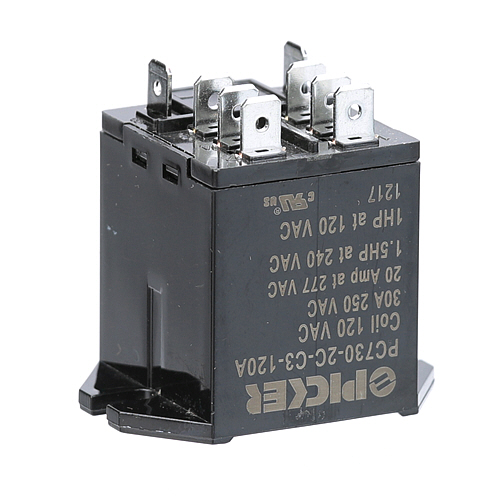

Southbend 93321 Gas Broiler Relay DPDT 120V

The Southbend 93321 Gas Broiler Relay incorporates a 120V coil and double-pole double-throw contact arrangement for electrical switching. The coil energization creates a magnetic field that changes the position of internal contacts, transferring connections between designated terminals. Two poles operate within the same housing, with each pole providing two selectable contact points for separate circuit paths. The arrangement supports simultaneous switching across independent wiring sections. Once coil voltage is removed, magnetic force ceases and the internal contacts return toward the resting position, restoring the corresponding electrical connections.
