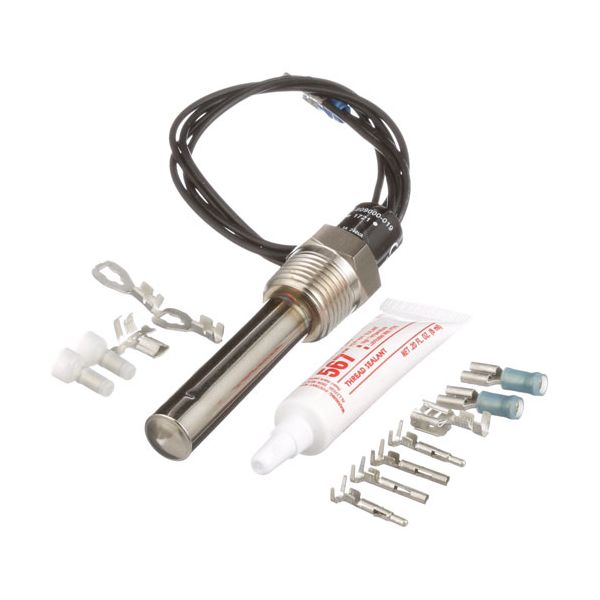

Garland GL1292800 Fryer High-Limit/Safety Thermostat Kit 425°F 2-1/4" Bulb 1/2" MPT
Special Price $105.68 Regular Price $223.91
In stock
SKU
GL1292800
Manufacturer:
The Garland GL1292800 Fryer Hi-Limit/Safety Thermostat Kit is a temperature safety part designed to support and protect compatible commercial systems by interrupting the heating circuit when oil reaches the maximum allowable operating temperature. It supports safe and consistent operation by monitoring heat levels throughout extended cooking periods. Featuring a 2-1/4-inch sensing bulb, a 425°F high-limit temperature setting, and a 1/2-inch MPT threaded connection, the kit is intended for installation in designated system assemblies. It is commonly used during maintenance and equipment servicing the thermostat allows for maintaining accurate temperature.
Dimensions
- Length: 10 In
- Width: 1 In
- Height: 10 In
- Weight: 0.5 lbs
Product Notes
- [ Fenwal Hi-Limit Kit 826-1177 ] [ Temp 425 Fixed ]
- [ Bulb 2-1/4" ] [ Size 1/2" Mpt ]
- Kit Includeds: 806-7545 Hi-Limit T'Stat. 807-0280 Adp
- Thermocouple, 807-1050 Split-Pin Male Terminals, 807-3448
- Piggy-Back Terminals, 807-3479 Push-On Terminals, 807-3481
- Nylon Bobtail Terminals, 807-3482 Female Disconnect Pins,
- 807-3523 Spade Terminals, 807-3524 Pin Receptacle Terminals,
- 815-8000 Loctite 567 Tube,
- 819-5393 Instruction Sheet.
- Does Not Come W/Lead Wire Adapter H-132A, # 38-1524.
- Frymaster Fryer Bimh-52, Fh-50-Sc, Fph-250-Sd (2Nd High
- Limit), Gf14, Mac(50,51,150,151,250,251,350,351 All 2Nd
- Hi-Limit), Fm45 Mach52, Mj35, Mj45, Mj56, Mj235,
- Series: H50, Mjh-(50,250) Hi Effeciency.
- Mjcf/Mjcfe, Series: Fm35,Biph14, Bire14, Fph17, H14, H14
