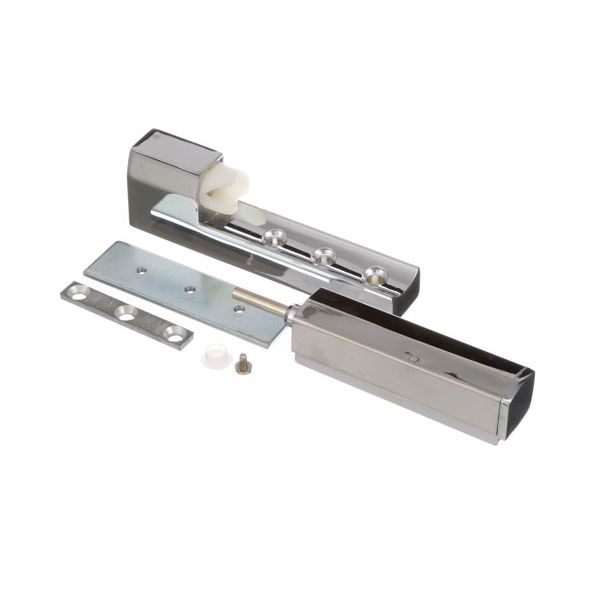

Fogel HA349 Hinge Assembly

Rating:
5 5 1
1  Review Add Your Review
Special Price $103.66 Regular Price $195.22
In stock
SKU
HA349
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Fogel HA349 Hinge Assembly uses a cam-lift design, which literally lifts the door during the door opening process and uses gravity to support the door closing itself. This interior design applies a helical rising surface to allow the smooth swing and the door to resume its fully seated position once released. The assembly is attached to the side of the refrigeration unit and the door panel with a clearance. This hardware allows commercial coolers and merchandisers to have a pivot point to hold the weight of the door when used at high frequency.

Dimensions

  • Length: 6 In
  • Width: 2 In
  • Height: 1.5 In
  • Weight: 1.08 lbs
https://partsfe.com/media/catalog/product/f/o/fogel-ha349-hinge-assembly-35401.jpg
BAKERS AID:
CHG:
CHGR50-2850, R50-2850
FOGEL:
FRANKLIN CHEF:
HOBART:
01-3PB045, HOB01-3PB045
STANDARD KEIL:
STAR MFG:
Reviews 1
Write Your Own Review
You're reviewing:Fogel HA349 Hinge Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Fogel HA349 Hinge Assembly?

Inspect the hinge assembly regularly for loose mounting hardware, wear, or misalignment. Apply a food-safe lubricant to moving hinge components when needed to maintain smooth door operation. Check that the door opens and closes properly without excessive resistance. Disconnect equipment power and support the door securely before performing any hinge adjustments or repairs.

What are common issues with the Fogel HA349 Hinge Assembly?

  • Door misalignment causing improper sealing.
  • Loose mounting hardware leading to wobbling or instability.
  • Squeaking or stiff movement due to lack of lubrication.
  • Wear or cracking of hinge components under heavy use.
  • Failure to close properly results in uneven door operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the unit and support the door to prevent it from shifting.

Step2: Remove the mounting screws from the damaged hinge assembly and carefully detach old hinge from the door and cabinet.

Step3: Position the new hinge assembly in the original mounting location.

Step4: Secure all mounting screws and verify the hinge is properly aligned.

Step5: Open and close the door several times to check smooth operation.
