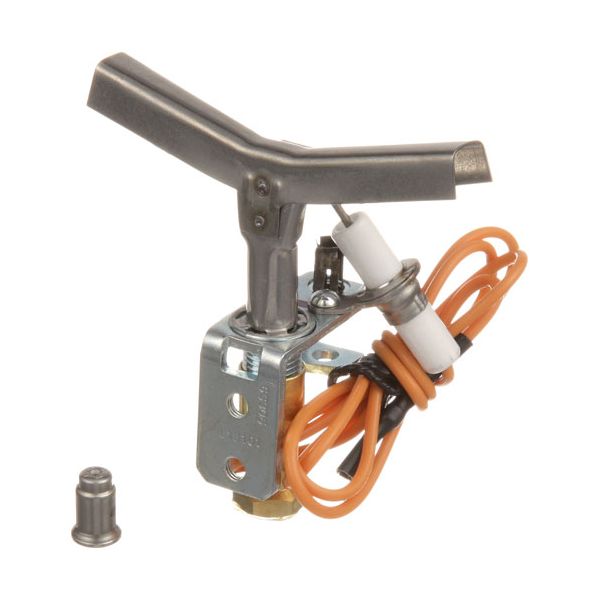

main product photo

Tri-Star 340131 Oven Pilot Assembly W/ Spark Plug End & No Orifice 1/4" Tube

Be the first to review this product
Special Price $57.62 Regular Price $117.59
In stock
SKU
340131
Add to Wish List
Griddle & Grill Parts, Pilot Assembly,
Manufacturer:
The Tri-Star 340131 Pilot Assembly Natural Gas works by offering a small continuous flame that is used as the ignition source by the main burner in heating cycles. It operates by controlling the flow of gas to the pilot tip where the flame is kept alive so that when the system requires heat and the burner is ignited. This assembly is mounted close to the burner compartment of the appliance and is attached to the gas supply line to provide a steady stream of ignition as the appliance is used.

Dimensions

  • Length: 7 In
  • Width: 4 In
  • Height: 1 In
  • Weight: 0.18 lbs
https://partsfe.com/media/catalog/product/t/r/tri-star-340131-oven-pilot-assembly-w-spark-plug-end-no-orifice-1-4-tube-58226-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 6S306, 3" Top Hood, Tube Size 1/4",
  • Flame Pattern 3 Way, W/Electrode 30" Wire, 1/4" Cct Long
  • Nut, Used W/ T-Couple Only, 30" Orange Wire
  • With 1/8" Flat Push-On.
  • Includes Lp Orifice, .016", # 26-1556
  • Includes Nat Orifice, .026", # 26-1557
  • Henny Penny Oea-(341, 342), Ofe-(321, 322, 323, 341, 342),
  • Ofg-(321, 322, 323, 341, 342)
  • Imperial Oven Series: Icv, Icvd.
  • Tri-Star
HENNY PENNY:
IMPERIAL:
MARKET FORGE:
TRI-STAR:
Reviews
Write Your Own Review
You're reviewing:Tri-Star 340131 Oven Pilot Assembly W/ Spark Plug End & No Orifice 1/4" Tube
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Tri-Star 340131 Pilot Assembly?

Regularly check the pilot assembly and spark plug end for grease or debris buildup. Clean gently with a soft brush and ensure the tube connections are secure. Proper maintenance ensures accurate ignition, consistent flame, and reduces the risk of gas leaks.

What are common issues with the Tri-Star 340131 Pilot Assembly?

  • Sparking stops intermittently.
  • Oven fails to light consistently.
  • Pilot tube may become blocked.
  • Electrical connections may loosen or corrode.
  • Irregular flame or ignition delays.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the oven gas supply before starting.

Step2: Remove the old pilot assembly by disconnecting the spark plug connection.

Step3: Position the new assembly and attach the spark plug end securely.

Step4: Connect the pilot tubing and ensure all fittings are tight.

Step5: Restore gas and test the oven for proper ignition.
