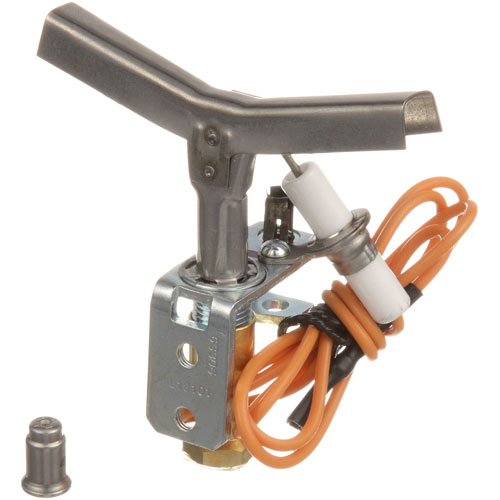

Tri-Star 340131 Oven Pilot Assembly W/ Spark Plug End & No Orifice 1/4" Tube

SKU: 340131 1-340131 Brand:
Tri-Star
Availability:
In Stock
(0)
$59.07 Price reduced from $117.59
Save $58.52
Have a Question? +1 (866) 863-0907

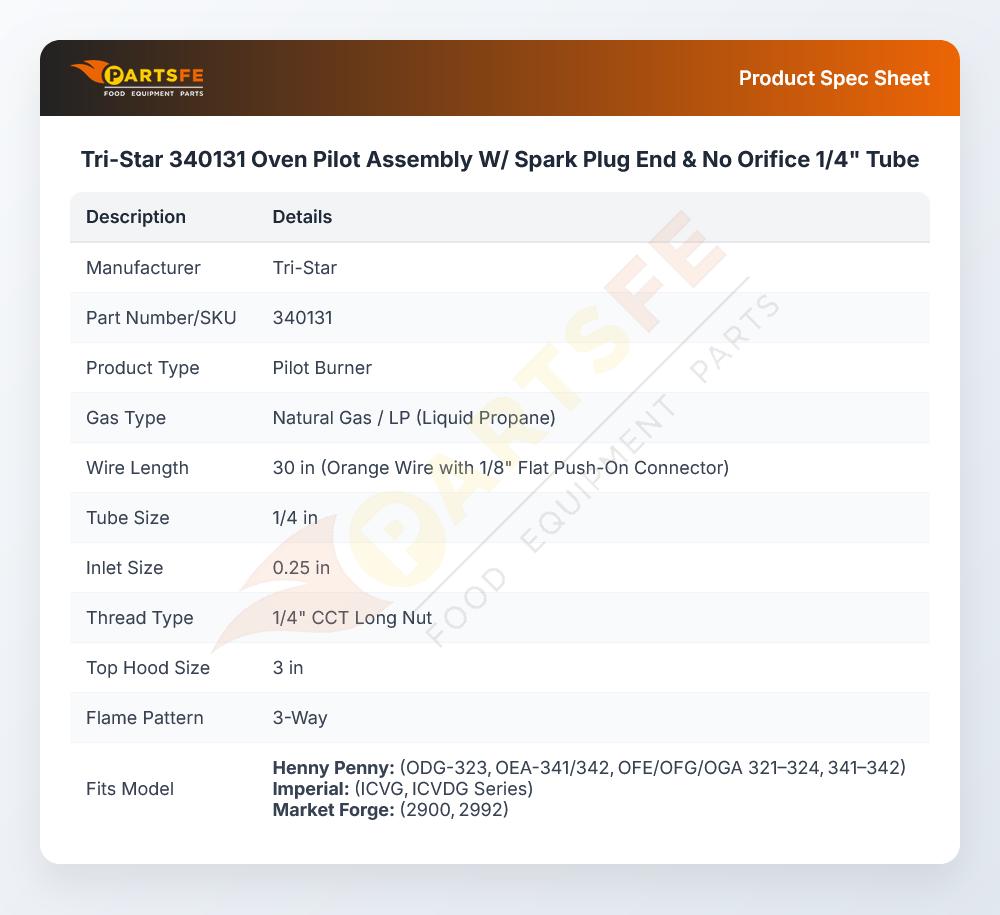

Specifications:

  • Nat/Lp Pilot, Factory # 6S306, 3" Top Hood, Tube Size 1/4",
  • Flame Pattern 3 Way, W/Electrode 30" Wire, 1/4" Cct Long
  • Nut, Used W/ T-Couple Only, 30" Orange Wire
  • With 1/8" Flat Push-On.
  • Includes Lp Orifice, .016", # 26-1556
  • Includes Nat Orifice, .026", # 26-1557
  • Henny Penny Oea-(341, 342), Ofe-(321, 322, 323, 341, 342),
  • Ofg-(321, 322, 323, 341, 342)
  • Imperial Oven Series: Icv, Icvd.
  • Tri-Star

Description

The Tri-Star 340131 Pilot Assembly Natural Gas works by offering a small continuous flame that is used as the ignition source by the main burner in heating cycles. It operates by controlling the flow of gas to the pilot tip where the flame is kept alive so that when the system requires heat and the burner is ignited. This assembly is mounted close to the burner compartment of the appliance and is attached to the gas supply line to provide a steady stream of ignition as the appliance is used.

Dimensions:

  • Weight: 0.18 lbs
  • Length: 7 in
  • Height: 1 in
  • Width: 4 in

HENNY PENNY:

60266 71981

IMPERIAL:

1097 1098

MARKET FORGE:

93-0009 93-0010

TRI-STAR:

AS-340131

Step1: Turn off the oven gas supply before starting.

Step2: Remove the old pilot assembly by disconnecting the spark plug connection.

Step3: Position the new assembly and attach the spark plug end securely.

Step4: Connect the pilot tubing and ensure all fittings are tight.

Step5: Restore gas and test the oven for proper ignition.

  • What maintenance is required for the Tri-Star 340131 Pilot Assembly?

    Regularly check the pilot assembly and spark plug end for grease or debris buildup. Clean gently with a soft brush and ensure the tube connections are secure. Proper maintenance ensures accurate ignition, consistent flame, and reduces the risk of gas leaks.

  • What are common issues with the Tri-Star 340131 Pilot Assembly?

    • Sparking stops intermittently.
    • Oven fails to light consistently.
    • Pilot tube may become blocked.
    • Electrical connections may loosen or corrode.
    • Irregular flame or ignition delays.
