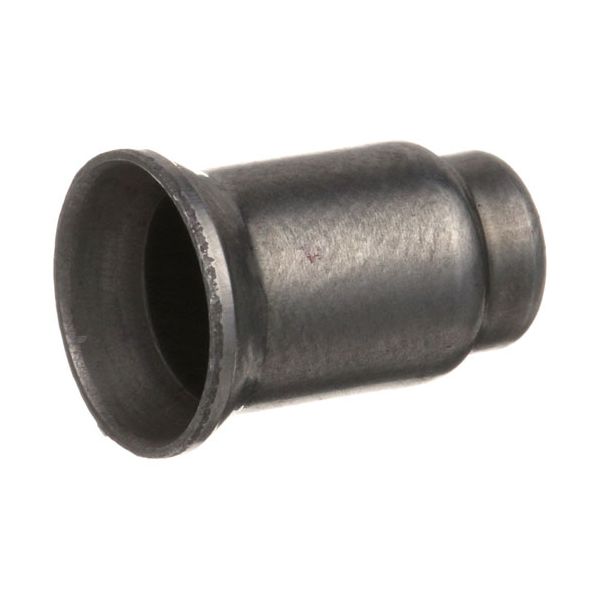

Frymaster 8102400 LP Pilot Orifice #16

SKU: 8102400 1-8102400 Brand:
Frymaster
Availability:
In Stock
(1)
$9.14
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice, For 1/4" Pilots,
  • .016" Or #78 Hole,
  • .372" Dia X .530" Long
  • American Range Fryer
  • Blodgett Oven
  • Imperial Fryer Series If, Ihr, Ir

Description

The Frymaster 8102400 LP Pilot Orifice #16 works by controlling the amount of liquid propane entering the valve burner assembly to have a steady, standing flame. It is a component that uses a certain-sized internal opening to meter the gas pressure to ensure that the ignition system gets the precise volume of air required to burn. This brass fitting is installed by the technicians directly into the first fuel line connection that is placed below the main tanks. This is used in a flammable propane configuration, and that does not necessitate complicated changes to the existing gas manifold to be used.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

This Part Fits the Following Models

100 models
Frymaster 1824/2424G Frymaster 1824G Frymaster 2424G Frymaster 24G Frymaster SCF Frymaster SCFC Frymaster SR52 American Range AF 35/40 American Range AF 35/50 American Range AF-25 American Range AF25/25 American Range AF-2545 American Range AF-45 American Range AF-75 American Range AFM-35/50 American Range AFM-85 American Range ARSB American Range ARSM American Range ARSM-24 American Range ARSM-36 American Range M-1 American Range M-2 American Range MA-1 American Range MA-2 American Range MSD-1 American Range MSD-2 Blodgett ZEPHAIRE G Blodgett ZEPHAIRE G PLUS Blodgett Zephaire-200-G Henny Penny 500 Henny Penny 600 Henny Penny CFA-600 Henny Penny OG-301 Henny Penny OG-302 Henny Penny OG-303 Henny Penny OG-30X Henny Penny PFE-500 Henny Penny PFE-500-CFA Henny Penny PFE-561 Henny Penny PFE-600 Henny Penny PFG-500 Henny Penny PFG-561 Henny Penny PFG-600 Imperial ICVDG SERIES Imperial ICVG Imperial IDR-61 Lang 0-2-10-3 Lang 0-2-10-4 Lang 0-2-10-5 Lang 236CM Lang 248CM Pitco 24RUFM Pitco AW-SG14R Pitco AW-SG14R-2 Pitco AW-SG14R-3-FD Pitco AW-SG14R-4-FD Pitco AW-SGF14R Pitco BK-SG14RS-PCFM Pitco PH-SG14R Pitco PH-SG14R-2 Pitco PH-SG14R-3 Pitco PH-SG14R-4 Pitco PH-SGF14R Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SG14 Pitco SG14DI Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14SD Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18DI Pitco SG18F Pitco SG18S Pitco SG18SD Pitco SGC Pitco SGF18 Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SRTG14 Pitco SSH55 Pitco SSH55-2FD Pitco SSH55SSTC-2FD Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60W/C-S/FD Pitco SSH75
Showing of 100.0

AMERICAN RANGE:

11107 A11109

BLODGETT:

20193

FRYMASTER:

2172 810-2400

GARLAND:

1093316

HENNY PENNY:

32407

IMPERIAL:

1059

LANG:

2A-80401-09 80401-09

PITCO:

P6071665 PTP6071665

ROYAL RANGE:

3206

SOUTHBEND:

1054111

STAR MFG:

2A-80401-09

Step1: Shut off gas supply and allow the fryer to cool completely.

Step2: Disconnect the pilot tubing from the pilot burner assembly using a proper tool.

Step3: Remove the old orifice and insert the new orifice into the fitting.

Step4: Hand-tighten the pilot line, then secure firmly with a tool.

Step5: Turn on gas and perform a leak test using soapy water.

Step6: Relight the pilot and verify a steady flame.

  • What maintenance is required for the Frymaster 8102400 Pilot Orifice?

    Clean the pilot orifice regularly to prevent clogging from grease and debris. Inspect gas flow and alignment to ensure consistent ignition performance. Use proper tools and shut off gas supply before servicing for safety.

  • What are common issues with the Frymaster 8102400 Pilot Orifice?

    • Clogging causing weak pilot flame.
    • Inconsistent ignition or delayed startup.
    • Gas flow restriction or uneven flame.
    • Orifice wear leading to poor performance.
    • Blocked gas passage reducing heating output.
