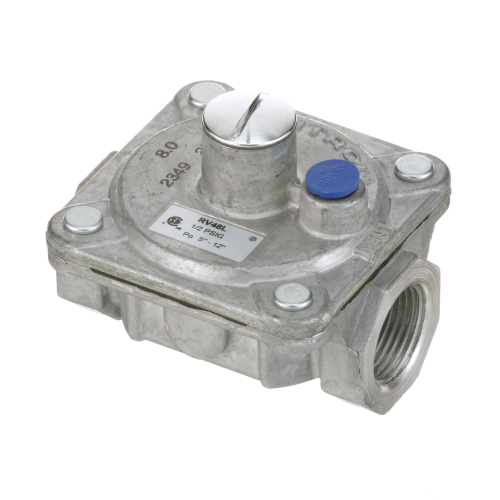

American Range A80011 Gas Pressure Regulator 3/4" LP

SKU: A80011 1-A80011 Brand:
American Range
Availability:
In Stock
(0)
$32.63 Price reduced from $44.60
Save $11.97
Have a Question? +1 (866) 863-0907

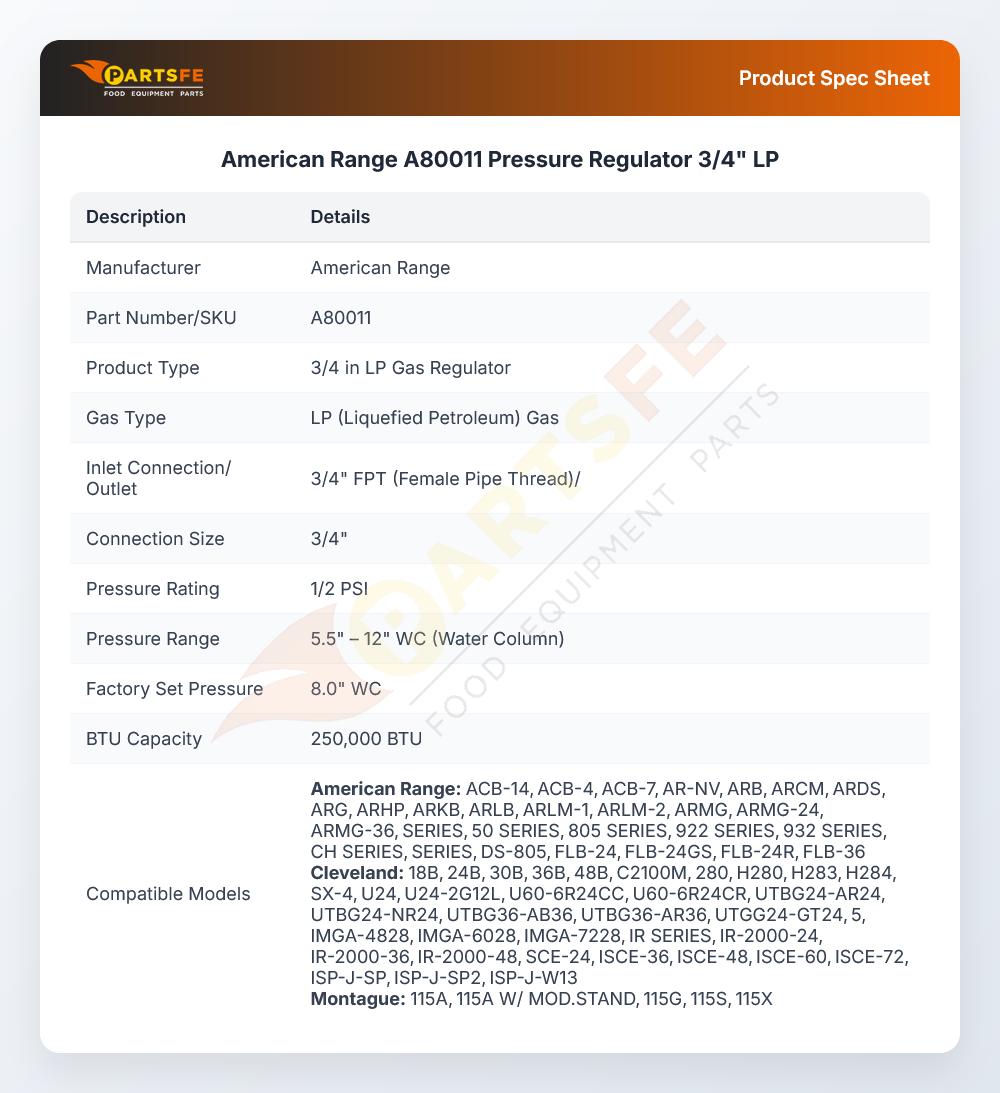

Specifications:

  • Lp Gas, 3/4" Fpt Gas In/Out, 5.5" - 12" Wc
  • 1/2"Psi, 250,000 Btu, Maxitrol Rv48L-66-0033 Preset At
  • Factory To 8.0
  • American Range
  • Bakers Pride Oven Where Applicable.
  • Blodgett Oven Series: 900, 999, 1000, Bcg, Fa, Gzl.
  • Garland Griddle Series: Gd
  • Imperial Oven Ir,Ihr
  • Keating Fryer Bb, Cc & Ts: 18" & Up.
  • Southbend
  • Oven Series: 300.
  • Griddle Series: Sg Counter Top
  • Vulcan Broiler, Grill, Warmer Where Applicable.
  • Fryer 7594G, Oven Series 7000
  • Range 24L, 36L/Lc, 48L/Lc, 148L/Lc, 60L/Lc/Lcc, 161L/Lc,

Description

The American Range A80011 Gas Pressure Regulator is a high-quality component that is used in the regulation of liquefied petroleum gas pressure in a commercial cooking system. The regulator regulates the flow of gases to ensure that the burner remains stable when used normally. It is mounted in line with the supply of gas and connected to the range manifold to control pressure and then distributed. This is a field in the installation or replacement of the service to adjust the uneven flame output and to reduce the damage of the inappropriate pressure.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.5 in
  • Height: 3.5 in
  • Width: 3 in

AMERICAN RANGE:

10481

BAKERS PRIDE:

AS-M1009A BKPM1009A M1009A M1009X

BLODGETT:

10248 10441 11504 BL10441 BL11504 Z1160206

CECILWARE:

GML203A GML203F L203A L203F

CLEVELAND:

2127500 KE54618-1

DORMONT:

R48P42-0512-10 R48P42-0512-10R

GARLAND:

1019004 1019011 2127500 228052-14 4516401 G01740-2 GL1019004 GL1019011 GL2127500

GRINDMASTER:

L203A

GROEN:

003548 101570B 3548 GR3548 Z003548

HOBART:

00-408279-00003 00-408279-00010 00-408279-00021 00-408279-00023 108279-10 108279-21 108279-23 108279-3 20025 408279-00003 408279-00010 408279-00021 408279-00023 408279-10 408279-21 408279-23 408279-3 720025 720065

IMPERIAL:

1051 38734 IMP1051

JADE RANGE:

4613400000

LANG:

80501-05 LG80501-05

MAGIKITCH'N:

2701-0028300 270100283 27010028300 37LP MK2701-0028300 MK270100283 MK27010028300 MK37LP MKRP1010 RP1010

MONTAGUE:

1040-5 2140-7 43B MON1040-5 R96-2

RANDELL:

RDLR-06D RDLR06A3/4

RANKIN DELUX:

RDLR-06D RDLR06A3/4

ROYAL RANGE:

1619

SOUTHBEND:

1160173 1160206

STAR MFG:

2J-39284 2J-Z3199 2J-Z7092 2J39284 59284 WS-59284

STERO:

WEL2J-39284 WEL2J39284

VULCAN HART:

00-408279-00003 00-408279-00010 00-408279-00021 00-408279-00023 108279-10 108279-21 108279-23 108279-3 20025 408279-00003 408279-00010 408279-00021 408279-00023 408279-10 408279-21 408279-22 408279-23 408279-3 720025 720065 VH108279-3 VH408279-21 VH408279-22 VH408279-3

Step1: Turn off the gas supply and disconnect appliance power before installation.

Step2: Remove the old regulator and clean the pipe threads thoroughly.

Step3: Apply approved gas-rated thread sealant to the male threads only.

Step4: Install the new regulator with the gas flow arrow pointing toward the appliance.

Step5: Tighten fittings securely without overtightening.

Step6: Restore gas supply and check all connections with a leak-detection solution before operating the equipment.

  • What maintenance is required for the American Range A80011 Pressure Regulator?

    Inspect the regulator regularly for leaks, loose fittings, or signs of wear around connections. Keep the vent opening clear of grease or debris to maintain accurate pressure control. Periodically verify outlet pressure using proper tools. Always isolate the gas supply before performing any servicing for safety.

  • What are common issues with the American Range A80011 Pressure Regulator?

    • Fluctuating gas pressure causing uneven burner output.
    • Gas leaks at threaded connections or seals.
    • Blocked vent interfering with pressure regulation.
    • Internal diaphragm wear leading to inconsistent flow.
    • Reduced gas supply affecting appliance performance.
