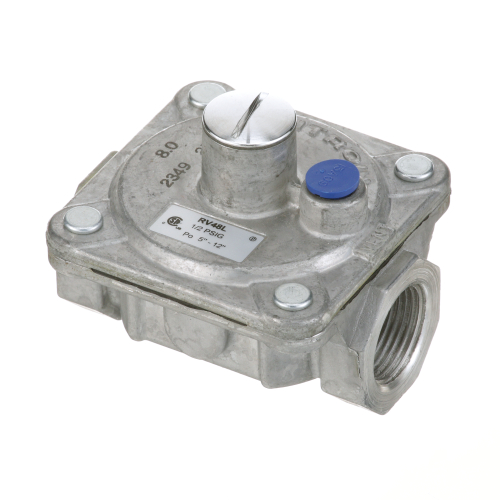

Imperial 38734 Gas Pressure Regulator 3/4" LP

SKU: 38734 1-38734 Brand:
Imperial
Availability:
In Stock
(0)
$32.63 Price reduced from $44.60
Save $11.97
Have a Question? +1 (866) 863-0907

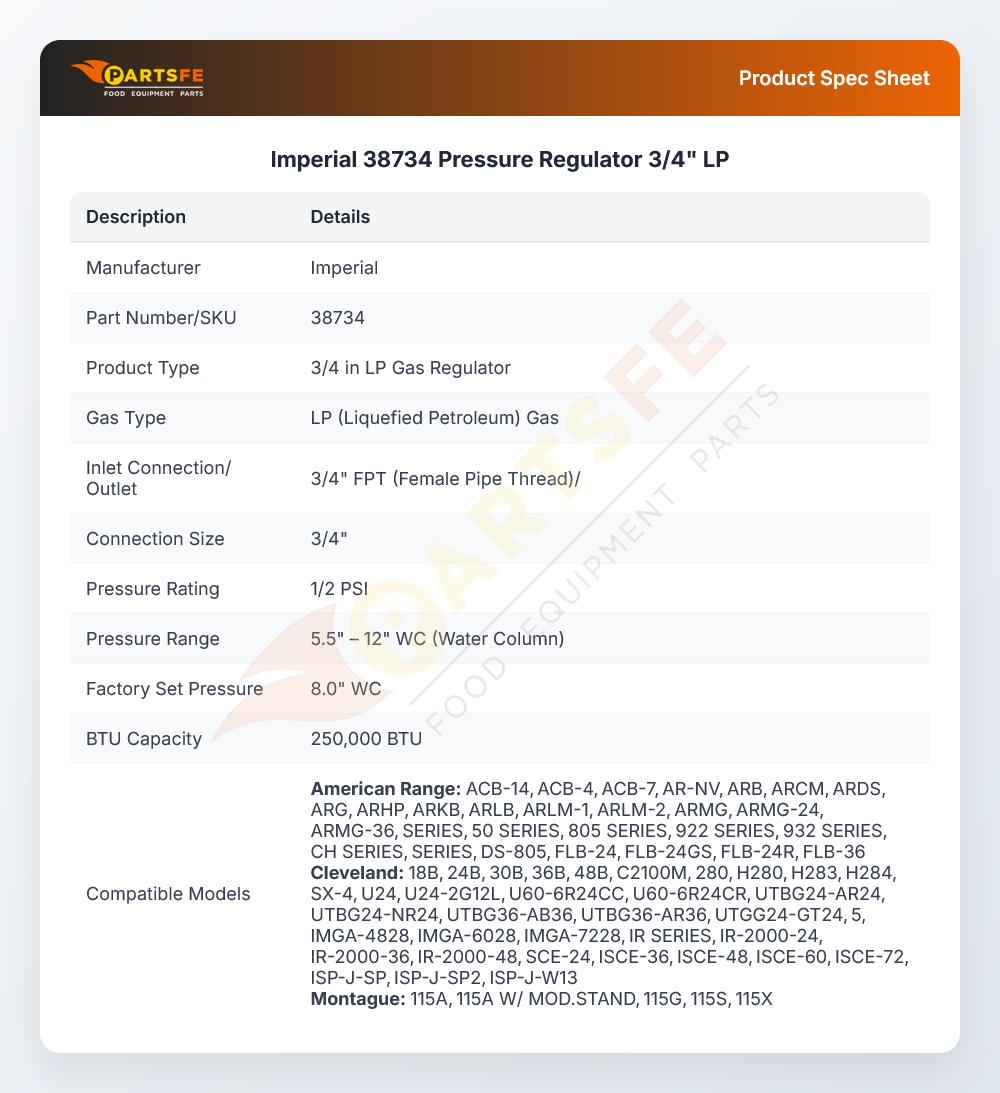

Specifications:

  • Lp Gas, 3/4" Fpt Gas In/Out, 5.5" - 12" Wc
  • 1/2"Psi, 250,000 Btu, Maxitrol Rv48L-66-0033 Preset At
  • Factory To 8.0
  • American Range
  • Bakers Pride Oven Where Applicable.
  • Blodgett Oven Series: 900, 999, 1000, Bcg, Fa, Gzl.
  • Garland Griddle Series: Gd
  • Imperial Oven Ir,Ihr
  • Keating Fryer Bb, Cc & Ts: 18" & Up.
  • Southbend
  • Oven Series: 300.
  • Griddle Series: Sg Counter Top
  • Vulcan Broiler, Grill, Warmer Where Applicable.
  • Fryer 7594G, Oven Series 7000
  • Range 24L, 36L/Lc, 48L/Lc, 148L/Lc, 60L/Lc/Lcc, 161L/Lc,

Description

The Imperial 38734 Gas Pressure Regulator 3/4" LP regulates the pressure of liquid propane in the supply line to the appliance and decreases it to a safe level to operate a burner. It is mounted on the gas inlet, and it links the LP source to the internal gas distribution system. It is used as part of the fuel system of the cooking equipment to ensure a steady flow of gas to keep the flames steady and the heat production consistent. The regulator constantly balances supply and demand and makes work properly when cooking on a commercial basis.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.5 in
  • Height: 3.5 in
  • Width: 3 in

AMERICAN RANGE:

10481 A80011

BAKERS PRIDE:

AS-M1009A BKPM1009A M1009A M1009X

BLODGETT:

10248 10441 11504 BL10441 BL11504 Z1160206

CECILWARE:

GML203A GML203F L203A L203F

CLEVELAND:

2127500 KE54618-1

DORMONT:

R48P42-0512-10 R48P42-0512-10R

GARLAND:

1019004 1019011 2127500 228052-14 4516401 G01740-2 GL1019004 GL1019011 GL2127500

GRINDMASTER:

L203A

GROEN:

003548 101570B 3548 GR3548 Z003548

HOBART:

00-408279-00003 00-408279-00010 00-408279-00021 00-408279-00023 108279-10 108279-21 108279-23 108279-3 20025 408279-00003 408279-00010 408279-00021 408279-00023 408279-10 408279-21 408279-23 408279-3 720025 720065

IMPERIAL:

1051 IMP1051

JADE RANGE:

4613400000

LANG:

80501-05 LG80501-05

MAGIKITCH'N:

2701-0028300 270100283 27010028300 37LP MK2701-0028300 MK270100283 MK27010028300 MK37LP MKRP1010 RP1010

MONTAGUE:

1040-5 2140-7 43B MON1040-5 R96-2

RANDELL:

RDLR-06D RDLR06A3/4

RANKIN DELUX:

RDLR-06D RDLR06A3/4

ROYAL RANGE:

1619

SOUTHBEND:

1160173 1160206

STAR MFG:

2J-39284 2J-Z3199 2J-Z7092 2J39284 59284 WS-59284

STERO:

WEL2J-39284 WEL2J39284

VULCAN HART:

00-408279-00003 00-408279-00010 00-408279-00021 00-408279-00023 108279-10 108279-21 108279-23 108279-3 20025 408279-00003 408279-00010 408279-00021 408279-00023 408279-10 408279-21 408279-22 408279-23 408279-3 720025 720065 VH108279-3 VH408279-21 VH408279-22 VH408279-3

Step1: Turn off gas supply and ensure no ignition sources nearby.

Step2: Remove old regulator from the gas line carefully.

Step3: Inspect pipe threads and clean debris or old sealant.

Step4: Apply approved gas-rated thread sealant or tape to threads.

Step5: Attach new regulator ensuring correct flow direction arrow.

Step6: Tighten securely with wrench without over-tightening connections.

Step7: Perform leak test using soapy water, check pressure stability.

  • What maintenance is required for the Imperial 38734 Pressure Regulator?

    Check the regulator periodically for leaks, corrosion, or damage to fittings. Ensure the vent remains unobstructed to allow proper pressure adjustment. Test gas pressure output during routine inspections to confirm stable operation. Shut off the gas line before maintenance to reduce risk of exposure or accidents.

  • What are common issues with the Imperial 38734 Pressure Regulator?

    • Irregular gas pressure affecting appliance efficiency.
    • Leakage from joints or worn seals.
    • Vent blockage leading to improper regulation.
    • Diaphragm failure causing unstable gas flow.
    • Weak or delayed gas delivery to burners.
