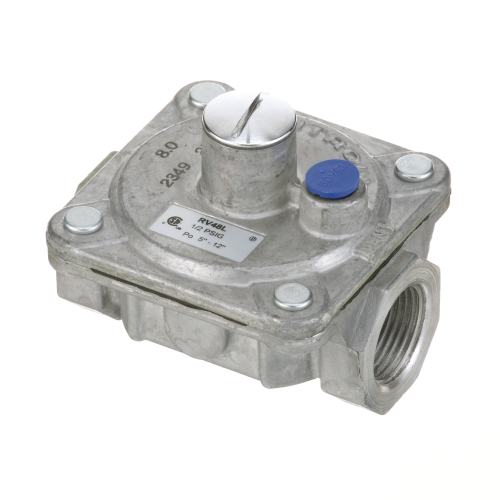

Jade Range 4613400000 Gas Pressure Regulator 3/4" LP

SKU: 4613400000 1-4613400000 Brand:
Jade Range
Availability:
In Stock
(1)
$32.63 Price reduced from $44.60
Save $11.97
Have a Question? +1 (866) 863-0907

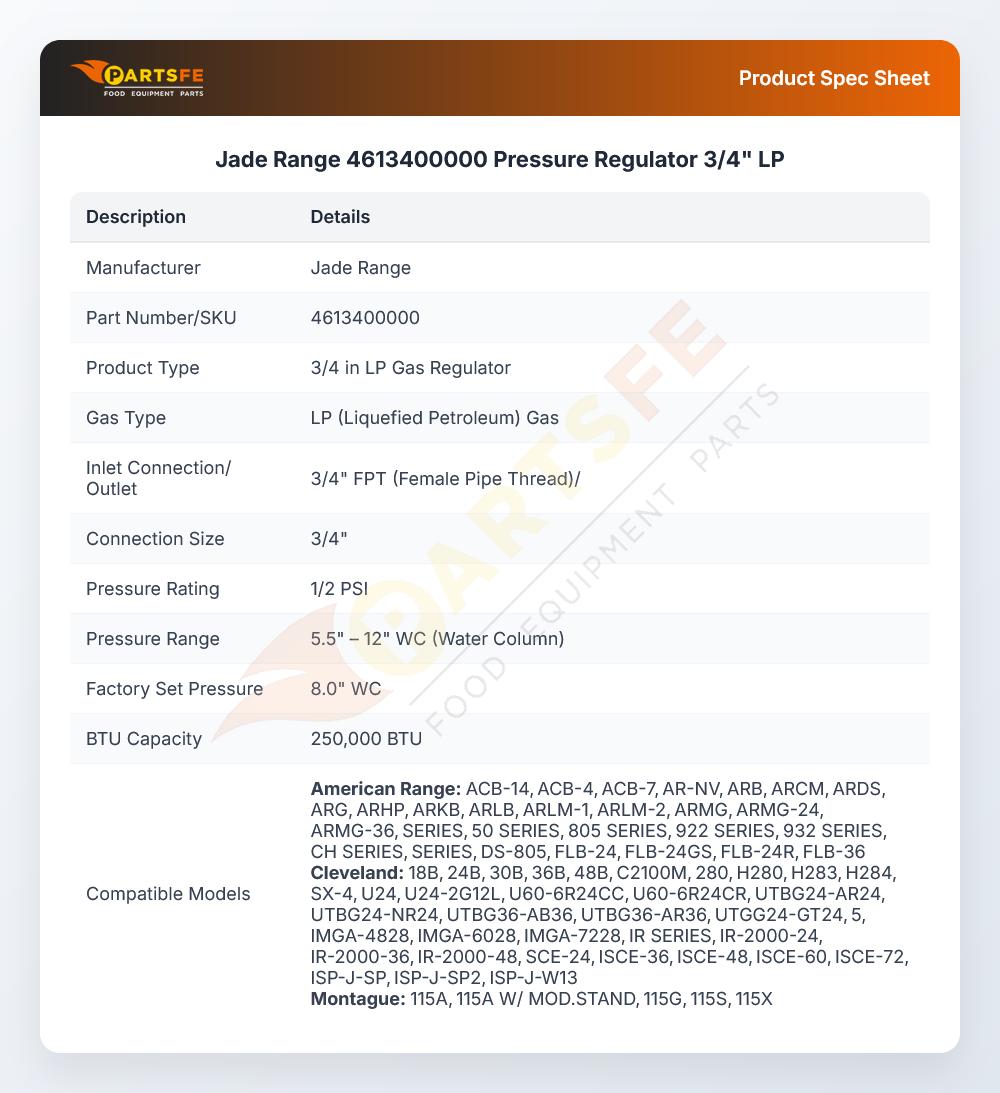

Specifications:

  • Lp Gas, 3/4" Fpt Gas In/Out, 5.5" - 12" Wc
  • 1/2"Psi, 250,000 Btu, Maxitrol Rv48L-66-0033 Preset At
  • Factory To 8.0
  • American Range
  • Bakers Pride Oven Where Applicable.
  • Blodgett Oven Series: 900, 999, 1000, Bcg, Fa, Gzl.
  • Garland Griddle Series: Gd
  • Imperial Oven Ir,Ihr
  • Keating Fryer Bb, Cc & Ts: 18" & Up.
  • Southbend
  • Oven Series: 300.
  • Griddle Series: Sg Counter Top
  • Vulcan Broiler, Grill, Warmer Where Applicable.
  • Fryer 7594G, Oven Series 7000
  • Range 24L, 36L/Lc, 48L/Lc, 148L/Lc, 60L/Lc/Lcc, 161L/Lc,

Description

The Jade Range 4613400000 Gas Pressure Regulator is a spare component that is used to control the flow of liquefied petroleum gas in a commercial cooking system. Normal operation involves the regulator to regulate inlet pressure so that it can keep the gas supply to the burners constant. It can be installed directly with the gas supply on compatible ranges and is connected directly to the manifold to assist in maintaining a steady flow of ignition and flame control. In practice, the part is utilized in the installation or service process to rectify the level of pressure to prevent.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.5 in
  • Height: 3.5 in
  • Width: 3 in

AMERICAN RANGE:

10481 A80011

BAKERS PRIDE:

AS-M1009A BKPM1009A M1009A M1009X

BLODGETT:

10248 10441 11504 BL10441 BL11504 Z1160206

CECILWARE:

GML203A GML203F L203A L203F

CLEVELAND:

2127500 KE54618-1

DORMONT:

R48P42-0512-10 R48P42-0512-10R

GARLAND:

1019004 1019011 2127500 228052-14 4516401 G01740-2 GL1019004 GL1019011 GL2127500

GRINDMASTER:

L203A

GROEN:

003548 101570B 3548 GR3548 Z003548

HOBART:

00-408279-00003 00-408279-00010 00-408279-00021 00-408279-00023 108279-10 108279-21 108279-23 108279-3 20025 408279-00003 408279-00010 408279-00021 408279-00023 408279-10 408279-21 408279-23 408279-3 720025 720065

IMPERIAL:

1051 38734 IMP1051

LANG:

80501-05 LG80501-05

MAGIKITCH'N:

2701-0028300 270100283 27010028300 37LP MK2701-0028300 MK270100283 MK27010028300 MK37LP MKRP1010 RP1010

MONTAGUE:

1040-5 2140-7 43B MON1040-5 R96-2

RANDELL:

RDLR-06D RDLR06A3/4

RANKIN DELUX:

RDLR-06D RDLR06A3/4

ROYAL RANGE:

1619

SOUTHBEND:

1160173 1160206

STAR MFG:

2J-39284 2J-Z3199 2J-Z7092 2J39284 59284 WS-59284

STERO:

WEL2J-39284 WEL2J39284

VULCAN HART:

00-408279-00003 00-408279-00010 00-408279-00021 00-408279-00023 108279-10 108279-21 108279-23 108279-3 20025 408279-00003 408279-00010 408279-00021 408279-00023 408279-10 408279-21 408279-22 408279-23 408279-3 720025 720065 VH108279-3 VH408279-21 VH408279-22 VH408279-3

Step1: Shut off the LP gas supply and unplug the appliance before beginning installation.

Step2: Remove the existing regulator and inspect the gas line for debris or damage.

Step3: Apply approved LP gas thread sealant to the pipe threads only.

Step4: Install the new regulator with the directional flow arrow facing the appliance.

Step5: Tighten all fittings securely while avoiding excessive force.

Step6: Turn the gas supply back on and test every connection with a leak-detection solution before operating the range.

  • What maintenance is required for the Jade Range 4613400000 Pressure Regulator?

    Inspect the regulator periodically for leaks, corrosion, or damage to the body and fittings. Ensure all connections are tight and free from grease or debris. Check that gas pressure remains consistent during operation. Shut off the gas supply before any inspection or servicing.

  • What are common issues with the Jade Range 4613400000 Pressure Regulator?

    • Fluctuating gas pressure causing uneven burner output.
    • Gas leakage from worn internal components or loose joints.
    • Blocked regulator restricting gas flow.
    • Failure to maintain proper outlet pressure under load.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Quality Regulator
    Teddington —

    Good quality regulator, no leaks
