Frymaster 8261177 Fryer Safety Thermostat 425°F
Special Price $138.13 Regular Price $223.91
In stock
SKU
8261177
The Frymaster 8261177 High Limit Safety Thermostat is a temperature controller used in Frymaster commercial fryers. It controls the temperature of the oil and turns off the heating components in case the oil temperature surpasses 425°F and overheats and could pose a safety issue. It is usually fitted in the control assembly of the fryer along with the other temperature control elements to ensure safe and stable cooking conditions. The thermostat is also essential in terms of safety for the appliance and the kitchen surroundings around it when there is normal frying by performing an automatic shut-off feature at the essential temperature levels.
Manufacturer:
Dimensions
- Length: 10 In
- Width: 1 In
- Height: 10 In
- Weight: 0.5 lbs
Product Notes

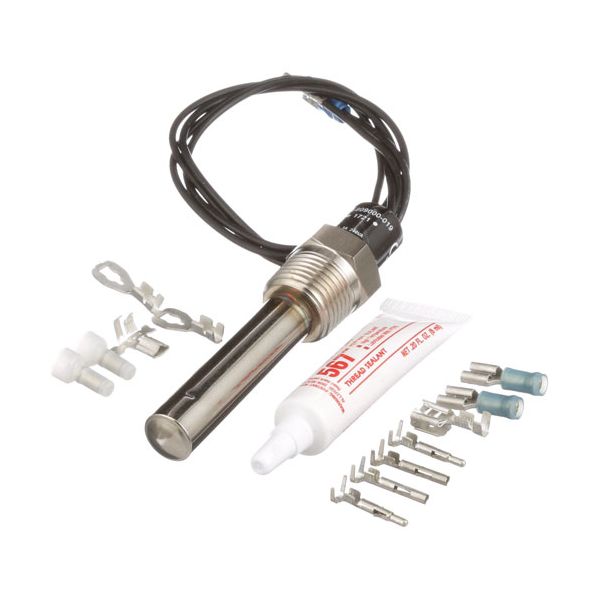

- [ Fenwal Hi-Limit Kit 826-1177 ] [ Temp 425 Fixed ]
- [ Bulb 2-1/4" ] [ Size 1/2" Mpt ]
- Kit Includeds: 806-7545 Hi-Limit T'Stat. 807-0280 Adp
- Thermocouple, 807-1050 Split-Pin Male Terminals, 807-3448
- Piggy-Back Terminals, 807-3479 Push-On Terminals, 807-3481
- Nylon Bobtail Terminals, 807-3482 Female Disconnect Pins,
- 807-3523 Spade Terminals, 807-3524 Pin Receptacle Terminals,
- 815-8000 Loctite 567 Tube,
- 819-5393 Instruction Sheet.
- Does Not Come W/Lead Wire Adapter H-132A, # 38-1524.
- Frymaster Fryer Bimh-52, Fh-50-Sc, Fph-250-Sd (2Nd High
- Limit), Gf14, Mac(50,51,150,151,250,251,350,351 All 2Nd
- Hi-Limit), Fm45 Mach52, Mj35, Mj45, Mj56, Mj235,
- Series: H50, Mjh-(50,250) Hi Effeciency.
- Mjcf/Mjcfe, Series: Fm35,Biph14, Bire14, Fph17, H14, H14
