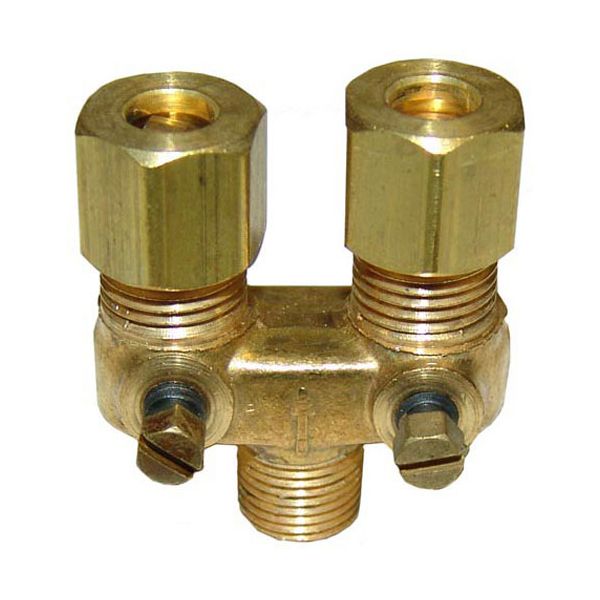

Southbend SOU1166004 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT

Rating:
5 5 1
1  Review Add Your Review
Special Price $19.12 Regular Price $28.03
In stock
SKU
SOU1166004
Add to Wish List
Griddle & Grill Parts, Pilot Safety Valves,
Manufacturer:
The Southbend SOU1166004 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT regulates the flow of gas to a pilot burner by rotating an internal adjustable mechanism that opens or closes the passage to adjust the pilot gas flow to the required amount. Gas passes through the 1/8" male pipe thread inlet and out through the 3/16" compression connection to the pilot assembly. It is mounted in the line of gas supply of compatible Garland cooking equipment where a small, straight pilot connection is required.

Dimensions

  • Length: 1.2 In
  • Width: 0.7 In
  • Height: 1.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-sou1166004-pilot-valve-1-8-mpt-x-3-16-cc-67062.jpg

Product Notes

  • Dual Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
  • [ Comes With Twin 3/16" Cct ]
  • American Range, Royal Range
  • Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
  • Imperial Broiler Series: Eba, Gd, Icb, Irb.
  • Grill Series: Imga.
  • Range Series: Icra, Ispa.
  • Roaster Series: Ipr, Ipra.
  • Rankin-Deluxe Broiler Series: Drb.
  • Southbend Oven Series 400
  • Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
  • Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
  • Wolf Broiler Cmss, Fcb, Scb.
  • Range Ch, Chss.
More Information
Disable SaleableNo
Replaces Parts
AMERICAN RANGE:
10432, A29301, AMRA29301
APW WYOTT:
ATOSA:
BAKERS PRIDE:
2V-R3020A, BKPR3020A, R3020A, R3020X
COMSTOCK CASTLE:
IMPERIAL:
1003, 1003-1, 1608, IMP1608
ROYAL RANGE:
053-AP6-1, 0531-AP6-1, 1211, 53AP6-1, ROY053-AP6-1, ROY53AP6-1
SOUTHBEND:
Reviews 1
Write Your Own Review
You're reviewing:Southbend SOU1166004 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Southbend SOU1166004 Pilot Valve?

Inspect the valve regularly for gas leaks and ensure all connections are secure. Clean internal passages if accessible to prevent blockage. Verify smooth adjustment operation. Proper maintenance ensures a stable pilot flame, stable gas flow, and accurate equipment performance.

What are the common issues with the Southbend SOU1166004 Pilot Valve?

  • Pilot flame inconsistency or failure to remain lit during use.
  • Gas leakage from worn seals or improperly tightened fittings.
  • Valve sticking or becoming difficult to adjust over time.
  • Restricted gas flow due to internal debris or buildup.
  • Erratic pilot flame size is affecting burner ignition accuracy.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the gas supply before starting.

Step2: Remove the old pilot valve carefully.

Step3: Clean connection threads and surrounding area.

Step4: Install the new pilot valve securely.

Step5: Reconnect gas lines as needed.

Step6: Turn on gas and check for leaks.

Step7: Test pilot flame for proper operation.
