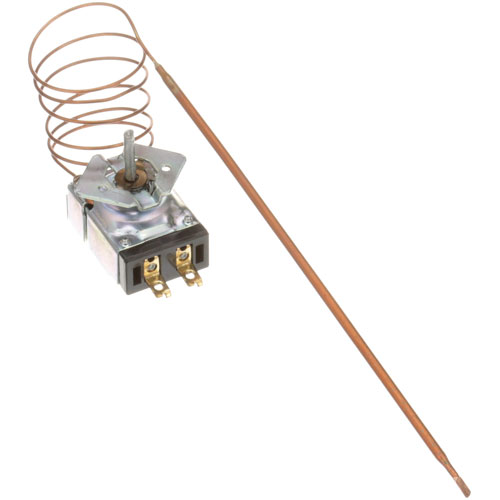

Hobart 00-342027-00001 Thermostat SP 200-450°F 3/16" X 10" 36"CAP

SKU: 00-342027-00001 1-00-342027-00001 Brand:
Hobart
Availability:
In Stock
(0)
$109.61 Price reduced from $168.89
Save $59.28
Have a Question? +1 (866) 863-0907

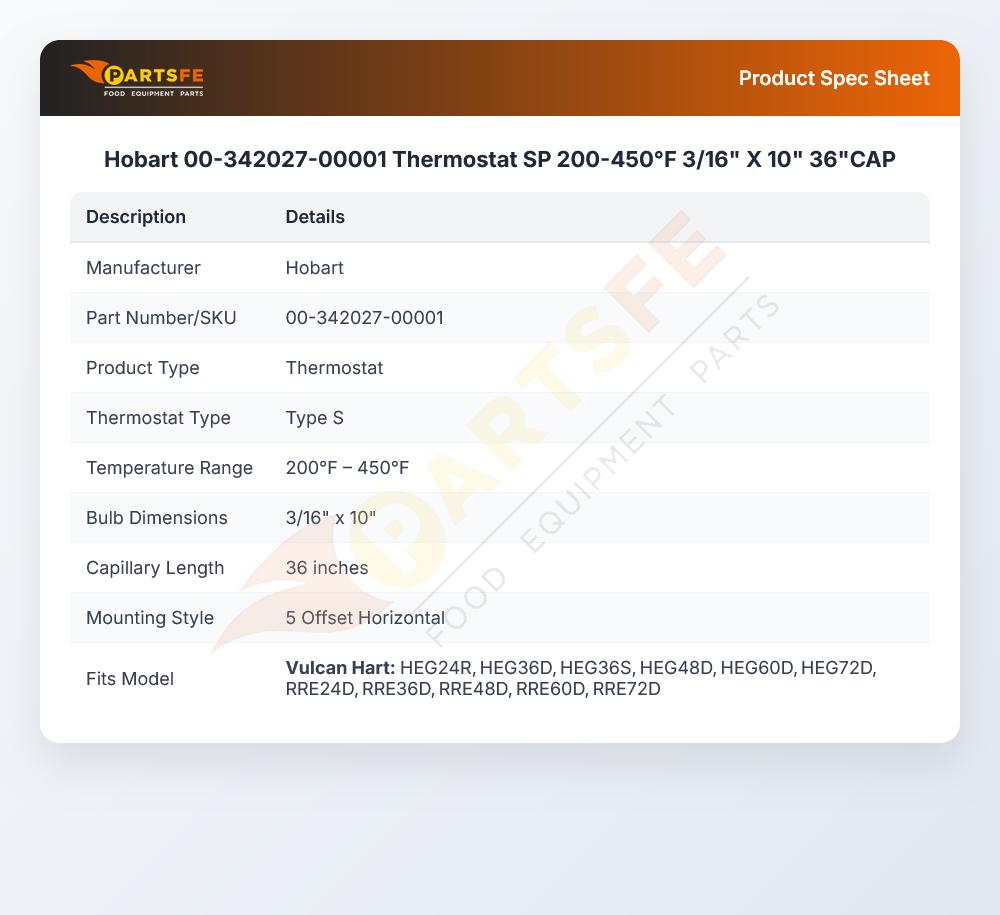

Specifications:

  • T'Stat
  • [ Type - S ] [ Temp 200-450 ] [ Bulb 3/16" X 10" ]
  • [ Cap 36" ] [ Mount 5 Off-Set Horizontal ]
  • [ Dial A1102, # 22-1088 ] [ 2-1/4" Dia ] [ Off-400-200]
  • [Mount D-Stem .187" ] [Flat Up ]
  • Ge/Hobart Grill Series: Cg (Except Cg33B, Cg700, Cg800), Hg
  • (Except Hgs)
  • Vulcan Grill Heg24, 365, 36D, 48D, 60D, 72D

Description

Hobart 00-342027-00001 Thermostat is used to control the temperature of the equipment. It works between 200-450°F and has a diameter of 3/16” and a capillary length of 36”. This thermostat is applied in home appliances such as ovens, fryers as well as grills to allow proper heating to enhance performance. It is built with high levels of solidity and solidity to guarantee long lasting durability and reliability. The temperature control is variable to fit the desired cooking preference while its fast acting heating element increases energy conservation, thereby cutting down energy expenses while at the same time providing a precise and safe heat control.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 10 in
  • Height: 2.5 in
  • Width: 3 in

GENERAL ELECTRIC:

XNC8X67

HOBART:

00-342027-00008 00-344635-00002 00-344635-00006 00-344635-2 00-344635-6 00-347111-1 142027-1 144635-2 342027-00001 342027-1 342027-8 344635-00002 344635-00006 344635-2 344635-6 347111-1 HOB00-344635-2 HOB00-344635-6 HOB00-347111-1 HOB344635-2 HOB344635-6 HOB347111-1 HOBXNC8X15 HOBXNC8X67 XNC8X15 XNC8X67 XNC8X67/344635-2

U-LINE:

5300-114 5300-11D S12-36 S384-36 SP463-36

VULCAN HART:

00-342027-00008 00-344635-00002 00-344635-00006 142027-1 144635-2 342027-00001 342027-1 342027-8 344635-00002 344635-00006 344635-2 344635-6 VH342027-8 VH344635-00006 VH344635-2 VH344635-6

Step1: Disconnect electrical power and shut off gas supply before servicing the equipment.

Step2: Remove control panel and carefully detach the existing thermostat sensing bulb and capillary tube.

Step3: Unscrew and remove the old thermostat from its mounting bracket.

Step4: Install the new thermostat, securing the mount firmly in place.

Step5: Route the bulb and capillary without kinks or sharp bends.

Step6: Reconnect wiring, restore power and gas, then test temperature control through full range.

  • What maintenance is required for the Hobart 00-342027-00001 Thermostat?

    Inspect the thermostat regularly for proper temperature control in equipment. Ensure all wiring connections are tight and free from corrosion. Keep the component dry and clean to prevent sensor faults and maintain accurate heating performance during operation.

  • What are common issues with the Hobart 00-342027-00001 Thermostat?

    • Incorrect temperature regulation during cycles.
    • Failure to trigger heating elements.
    • Wiring corrosion or loose connections.
    • Sensor drift causing inaccurate readings.
    • Intermittent heating performance issues.
