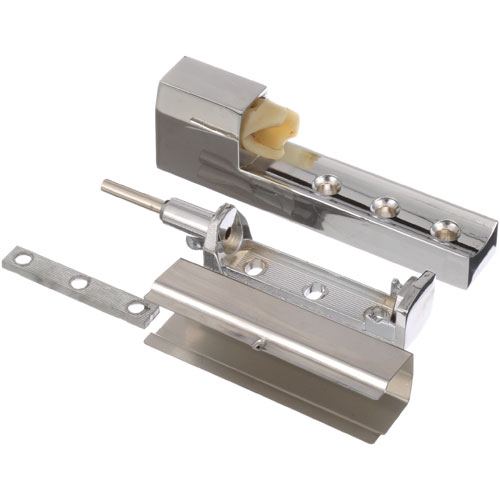

Hobart 00-436057-00022 Edgemount Cam Lift Hinge

SKU: 00-436057-00022 1-00-436057-00022 Brand:
Hobart
Availability:
In Stock
(0)
$18.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88

Description

The Hobart 00-436057-00022 Edgemount Cam Lift Hinge is a door hinge that is utilized in commercial foodservice equipment. It assists in the controlled movement of the door by lifting the door a bit as it is opened to aid in reducing wear and keeping it in position. The cam lift mechanism is installed on the door edge and the cabinet interface, making it easy to open and close normally. This hinge has a functional purpose in the door assembly because it assists in the correct positioning and constant contact between the door and the frame.

Dimensions:

  • Weight: 0.92 lbs
  • Length: 6 in
  • Height: 1 in
  • Width: 2 in

BEVERAGE AIR:

00C34-031D-01 00C34031D01 401-239B 401-657B 401657B BEV401-239B BEV401-657B

CHG:

R50-2850

DELFIELD:

323-4617 3234593 3234617 3234617-S 3234617KT 3234617KT-S 3234750 DEL3234617KT

FOGEL:

HA-349-A

HOBART:

430098 436057-00022 436057-22

HUSSMANN:

35S014

RANDELL:

HD HIN0001 HD HIN400 HD-HIN0001 HD-HIN400 HDHIN0001 HDHIN400

STAR MFG:

SP-880-3 SP880-1 SP880-3

STERO:

2HAL0880-001 2HAL0880-003

VULCAN HART:

430098 436057-00022 436057-22

Step1: Disconnect power and support door/lid to prevent accidental drop or injury during handling.

Step2: Remove the existing hinge by loosening and detaching mounting screws carefully.

Step3: Position new cam lift hinge on edgemount bracket and align mounting holes.

Step4: Secure hinge loosely, then adjust cam for proper lift action and alignment.

Step5: Tighten all fasteners to specified torque.

Step6: Test full opening and closing cycle for smooth, safe operation before use.

  • What maintenance is required for the Hobart 00-436057-00022 Cam Lift Hinge?

    Keep hinge and cam mechanism clean and free of grease buildup and debris. Lubricate moving parts regularly with food-safe lubricant. Check mounting screws for tightness and alignment. Inspect for wear or binding during operation.

  • What are common issues with the Hobart 00-436057-00022 Cam Lift Hinge?

    • Cam wear causing loose or stiff movement.
    • Misalignment leading to uneven door closure.
    • Screw loosening over time.
    • Corrosion or rust on hinge components.
    • Binding due to debris accumulation.
