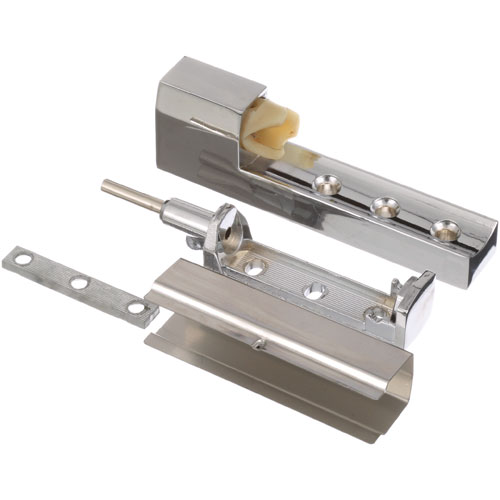

Delfield 323-4617 Edgemount Cam Lift Hinge

SKU: 323-4617 1-323-4617 Brand:
Delfield
Availability:
In Stock
(0)
$18.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88

Description

The Delfield 323-4617 Edgemount Cam Lift Hinge is a door placement element designed to fit the refrigeration units. It is a cam-assisted movement to raise and close the door to assist in correct positioning and closing. The hinge is mounted at the edge of the cabinet and it works together with the door assembly to ensure that there is a straight seal and controlled movement. It is used in commercial kitchens to deal with the pressure of opening and closing the door repeatedly, allowing the refrigeration system to keep the internal conditions steady in normal operation.

Dimensions:

  • Weight: 0.92 lbs
  • Length: 6 in
  • Height: 1 in
  • Width: 2 in

BEVERAGE AIR:

00C34-031D-01 00C34031D01 401-239B 401-657B 401657B BEV401-239B BEV401-657B

CHG:

R50-2850

DELFIELD:

3234593 3234617 3234617-S 3234617KT 3234617KT-S 3234750 DEL3234617KT

FOGEL:

HA-349-A

HOBART:

00-436057-00022 430098 436057-00022 436057-22

HUSSMANN:

35S014

RANDELL:

HD HIN0001 HD HIN400 HD-HIN0001 HD-HIN400 HDHIN0001 HDHIN400

STAR MFG:

SP-880-3 SP880-1 SP880-3

STERO:

2HAL0880-001 2HAL0880-003

VULCAN HART:

00-436057-00022 430098 436057-00022 436057-22

Step1: Align hinge mounting plate with cabinet edge and mark screw points.

Step2: Pre-drill pilot holes carefully; avoid splitting wood or panel material.

Step3: Secure hinge using appropriate screws, tightening evenly for stability.

Step4: Attach door or panel to hinge arm and test cam lift movement.

Step5: Ensure smooth operation; wear gloves and support panel during installation for safety.

Step6: Check alignment and adjust cam tension if needed.

  • What maintenance is required for the Delfield 323-4617 Cam Lift Hinge?

    Regularly inspect the hinge for wear, looseness, and smooth cam action. Clean debris and food buildup to prevent binding. Lightly lubricate moving parts to ensure smooth door operation and reduce friction-related pressure on mounting points.

  • What are common issues with the Delfield 323-4617 Cam Lift Hinge?

    • Loose hinge causing door misalignment.
    • Cam wear leading to uneven lifting action.
    • Rust or corrosion from moisture exposure.
    • Binding due to debris buildup.
    • Mounting screw loosening over time.
