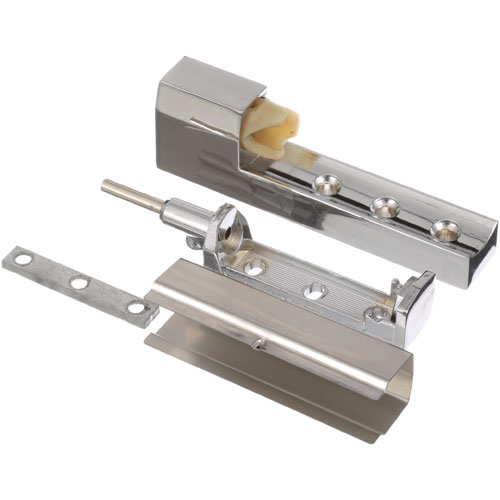

Hussmann 35S014 Door Hinge 1-5/8" Offset
Specifications:
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
Description
Dimensions:
- Weight: 0.92 lbs
- Length: 6 in
- Height: 1 in
- Width: 2 in
BEVERAGE AIR:
00C34-031D-01 00C34031D01 401-239B 401-657B 401657B BEV401-239B BEV401-657B
CHG:
FOGEL:
HOBART:
RANDELL:
HD HIN0001 HD HIN400 HD-HIN0001 HD-HIN400 HDHIN0001 HDHIN400
STERO:
VULCAN HART:
Step1: Disconnect power and support the door to prevent sudden movement.
Step2: Remove the old hinge and clean the mounting surface.
Step3: Align the cam lift hinge with existing edgemount holes.
Step4: Secure the hinge using proper screws; tighten evenly.
Step5: Reattach the door onto the hinge and test cam lift action.
Step6: Adjust alignment if needed and ensure smooth door operation.
-
What maintenance is required for the Hussmann 35S014 Cam Lift Hinge?
Regularly clean and lubricate the hinge to ensure smooth cam lift operation and prevent friction damage. Inspect mounting screws for tightness and alignment issues. Proper maintenance reduces pressure on door components and enhances safety during use.
-
What are common issues with the Hussmann 35S014 Cam Lift Hinge?
- Door misalignment leading to improper sealing or sagging.
- Cam lift mechanism sticking or stiff during operation.
- Damage on pivot points and bushings causing uneven movement.
- Loose mounting hardware resulting in unstable hinge performance.
- Corrosion buildup in humid or high-moisture conditions.
