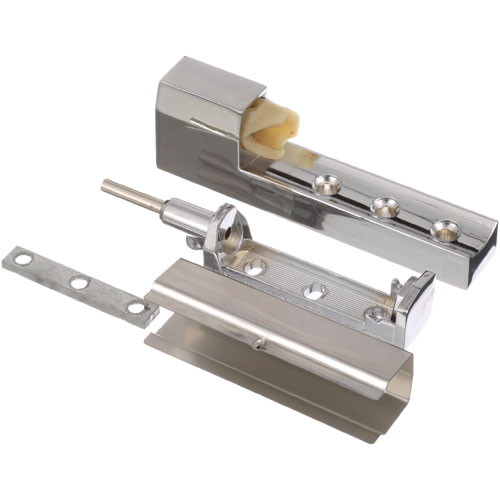

Beverage Air 00C34-031D-01 Lift Off Hinge Assembly Chrome

Hinge Support:
Provides structural support at the door-to-cabinet connection point. The hinge assembly helps distribute the door's load through the mounting structure while maintaining the pivot relationship required for normal operation.

Lift-Off Operation:
Uses a removable hinge configuration that allows the door to separate from the hinge connection when required. This design provides flexibility within the door hardware arrangement while maintaining a stable connection during normal operation.

Replacement Guidelines:
Replace the Beverage Lift Off Hinge Assembly if it is cracked, bent, deformed, worn, loose, or no longer supports proper door movement and alignment. The part number 00C34-031D-01 and chrome finish should be verified before replacement to ensure the correct hinge assembly is selected. Replace the hinge assembly if deterioration affects door support, alignment, movement, closing, or normal equipment operation.

Common Failure Symptoms:

• Door movement becomes uneven or restricted.
• Door appears misaligned within the cabinet opening.
• Hinge shows visible bending, cracking, or deformation.
• Hinge connection becomes loose during normal door movement.
• Door no longer maintains its intended supported position.

Equipment Compatibility:
The Beverage Air 00C34-031D-01 Lift Off Hinge Assembly 1-5/8" is specified for equipment configurations requiring this hinge design. Verify the equipment model, part number, hinge position, mounting arrangement, and configuration before purchase.

Technical Specifications:
Brand: Beverage Air
Part Number: 00C34-031D-01
Component Name: Lift-Off Hinge Assembly
Size: 1-5/8"

Step1: Open the door and support it securely to prevent movement.

Step2: Remove the existing hinge by unscrewing it from the door and frame.

Step3: Align the new cam lift hinge with the mounting holes.

Step4: Secure the hinge with screws, ensuring proper engagement of the cam mechanism.

Step5: Check door alignment and adjust hinge position if necessary.

Step6: Test the door for smooth opening and proper lift operation.

• What maintenance is required for the Beverage Air 00C34-031D-01 Cam Lift Hinge?

  Inspect the hinge regularly for loose screws, wear, and proper alignment to ensure smooth door operation. Lubricate moving parts with food-safe lubricant to reduce friction and prevent corrosion. Tighten hardware and replace damaged components promptly to maintain safety and door performance.

• What are common issues with the Beverage Air 00C34-031D-01 Cam Lift Hinge?

  • Door sagging or misalignment.
  • Difficulty in opening or closing.
  • Excessive noise during operation.
  • Wear or damage to the cam mechanism.

• What is the Beverage-Air 00C34-031D-01 used for?

  The Beverage-Air 00C34-031D-01 is used as a lift-off hinge assembly for commercial refrigeration equipment.

• What does a lift-off hinge assembly provide?

  It provides a supported pivot connection while allowing the door to separate from the hinge connection when required.

• Why is proper hinge positioning important?

  Correct positioning helps maintain stable door placement and consistent interaction between the door and cabinet structure.

• What are common signs of hinge wear?

  Visible damage, excessive movement, reduced stability, uneven door positioning, or inconsistent door movement can indicate hinge deterioration.

• What should be verified before selecting this hinge?

  Check the part number, hinge configuration, mounting arrangement, equipment model, and finish to confirm the required component.
