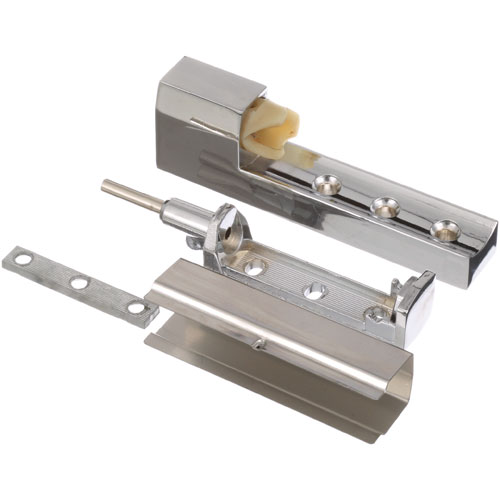

Beverage Air 401657B Edgemount Cam Lift Hinge
Specifications:
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
Description
Dimensions:
- Weight: 0.92 lbs
- Length: 6 in
- Height: 1 in
- Width: 2 in
BEVERAGE AIR:
00C34-031D-01 00C34031D01 401-239B 401-657B BEV401-239B BEV401-657B
CHG:
FOGEL:
HOBART:
HUSSMANN:
RANDELL:
HD HIN0001 HD HIN400 HD-HIN0001 HD-HIN400 HDHIN0001 HDHIN400
STERO:
VULCAN HART:
Step1: Disconnect power to unit and empty door area to avoid movement or injury.
Step2: Remove existing hinge hardware from door and cabinet frame.
Step3: Position new cam lift hinge in correct edgemount alignment.
Step4: Secure hinge using matching screws, ensuring tight and level fit.
Step5: Reattach door and test lift action for smooth, balanced movement.
Step6: Check door closes properly and adjust alignment if needed for better operation.
-
What maintenance is required for the Beverage Air 401657B Edgemount Cam Lift Hinge?
Inspect and clean the cam lift hinge regularly to remove grease buildup and debris. Apply food-grade lubricant to moving parts to ensure smooth door operation and reduce damage. Check alignment and tighten loose fasteners while following safety procedures during maintenance.
-
What are common issues with the Beverage Air 401657B Edgemount Cam Lift Hinge?
- Door misalignment causing improper sealing.
- Cam wear leading to uneven lifting.
- Hinge loosening from repeated use.
- Corrosion affecting smooth operation.
- Binding or stiffness during door movement.
- Improper lubrication causing friction buildup.
