Hobart 00-87711-148-1 Toggle Switch DPST 1/2"

SKU: 00-87711-148-1 1-00-87711-148-1 Brand:
Hobart
Availability:
In Stock
(0)
$14.54 Price reduced from $17.00
Save $2.46
Have a Question? +1 (866) 863-0907

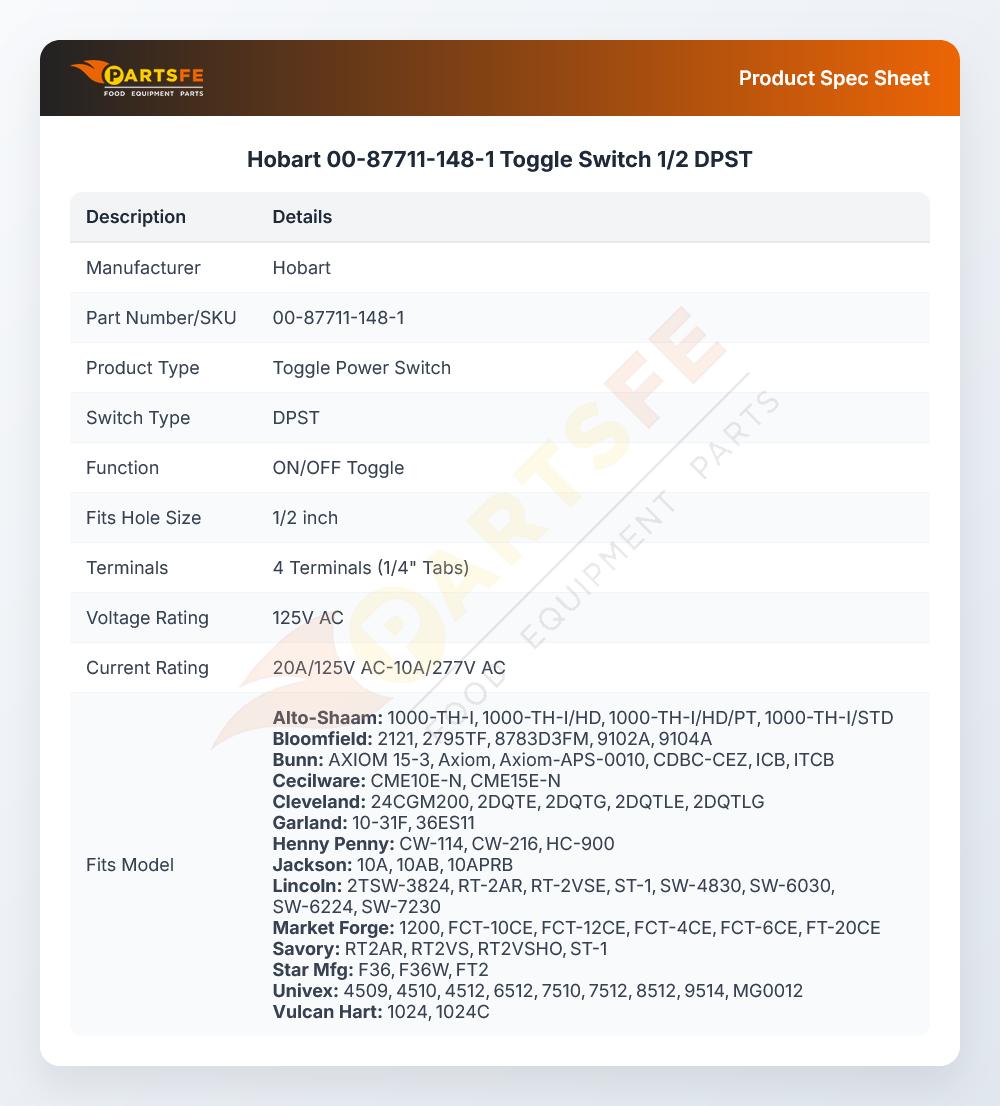

Specifications:

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw

Description

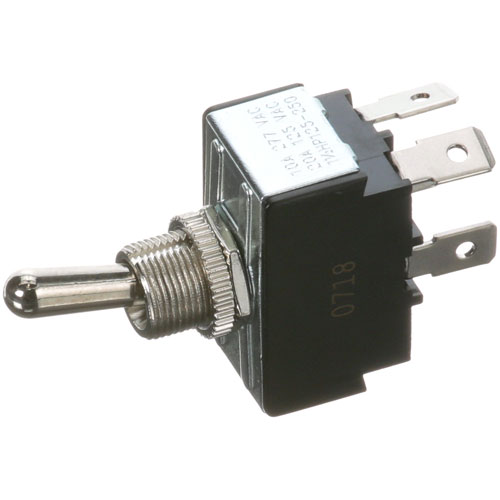

The Hobart 00-87711-148-1 Toggle Switch 1/2" double pole, single-throw is an electrical component that opens or closes both poles in a circuit simultaneously to control the flow of electricity. It is mounted on the control panel of compatible commercial equipment, and it provides a manual interface to either turn on or turn off certain operations. This switch is essential in the system to control power supply to specific parts in a way that the electrical circuits are safe and efficient in line with the intended purposes of the equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.2 in
  • Height: 2.3 in
  • Width: 0.7 in

ALTO-SHAAM:

ALTSW-3528 SW-3528

BLOOMFIELD:

2E-30169 2E-30330 8554-5

BUNN-O-MATIC:

40763-0001 40763.0001 BU40763-0001 BU40763.0001

CECILWARE:

GML133A GML133F L133A L133F L299A

CLEVELAND:

2235100 CLE2235100 CLESK50056 SK50056

CRES COR:

0808-020 0808020 808-20 CRE808-20

CURTIS:

3375000147 WC-103

GARLAND:

1040999 2235100 GL1040999 GL2235100

GENERAL ELECTRIC:

XNC5X196

GRINDMASTER:

L299A

HENNY PENNY:

22198

HOBART:

00-340324-00006 00-825100-00010 087711-148-1 340324-00006 340324-6 825100-00010 825100-10 87711-148-1 XNC5X196/340324-6

INTEDGE:

U651

JACKSON:

05930-301-22-18 157500 5930-301-22-18 59303012218 JAC157500

LINCOLN:

68117SP

MARKET FORGE:

10-6511 97-5011 S10-6511

MERCO:

970105 970105SP

SAVORY:

14614 68117 68117SP

SOUTHBEND:

9110-1 SOU9110-1

STAR MFG:

200543 2E-200543 2E-30169 2E-30330 50169 50330 WS-50169 WS-50330

STERO:

WEL2E-30169

UNIVEX:

7120-009 7120009

VULCAN HART:

00-340324-00006 00-825100-00010 00-881970 30017 340324-00006 340324-6 825100-00010 825100-10 VH00-825100-00010 VH00-881970 VH30017 VH825100-10

WINSTON:

PS-2257 WINPS-2257

Step1: Turn off and unplug appliance; verify no power with tester for safety.

Step2: Remove access panel and label wire connections before disconnecting old toggle switch.

Step3: Install new Hobart DPST toggle switch, transferring wires to matching terminals per configuration.

Step4: Secure switch, reassemble panel, ensure all connections are tight and insulated.

Step5: Restore power and test appliance for proper operation; observe safety during initial run.

  • What maintenance is required for the Hobart 00-87711-148-1 Toggle Switch?

    Regularly inspect the toggle switch for loose connections, wear, or corrosion on terminals. Ensure the switch operates smoothly without sticking. Keep the area dry and free from debris to prevent electrical faults. Always disconnect power before servicing to ensure safety.

  • What are common issues with the Hobart 00-87711-148-1 Toggle Switch?

    • Switch fails to toggle or becomes stuck.
    • Intermittent electrical connection or power loss.
    • Worn or corroded internal contacts.
    • Loose terminal connections causing inconsistent operation.
