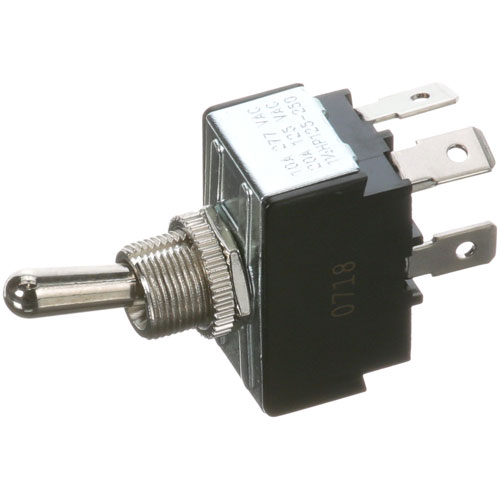

Merco 970105 Toggle Switch DPST 1/2"

SKU: 970105 1-970105 Brand:
Merco
Availability:
In Stock
(0)
$14.54 Price reduced from $17.00
Save $2.46
Have a Question? +1 (866) 863-0907

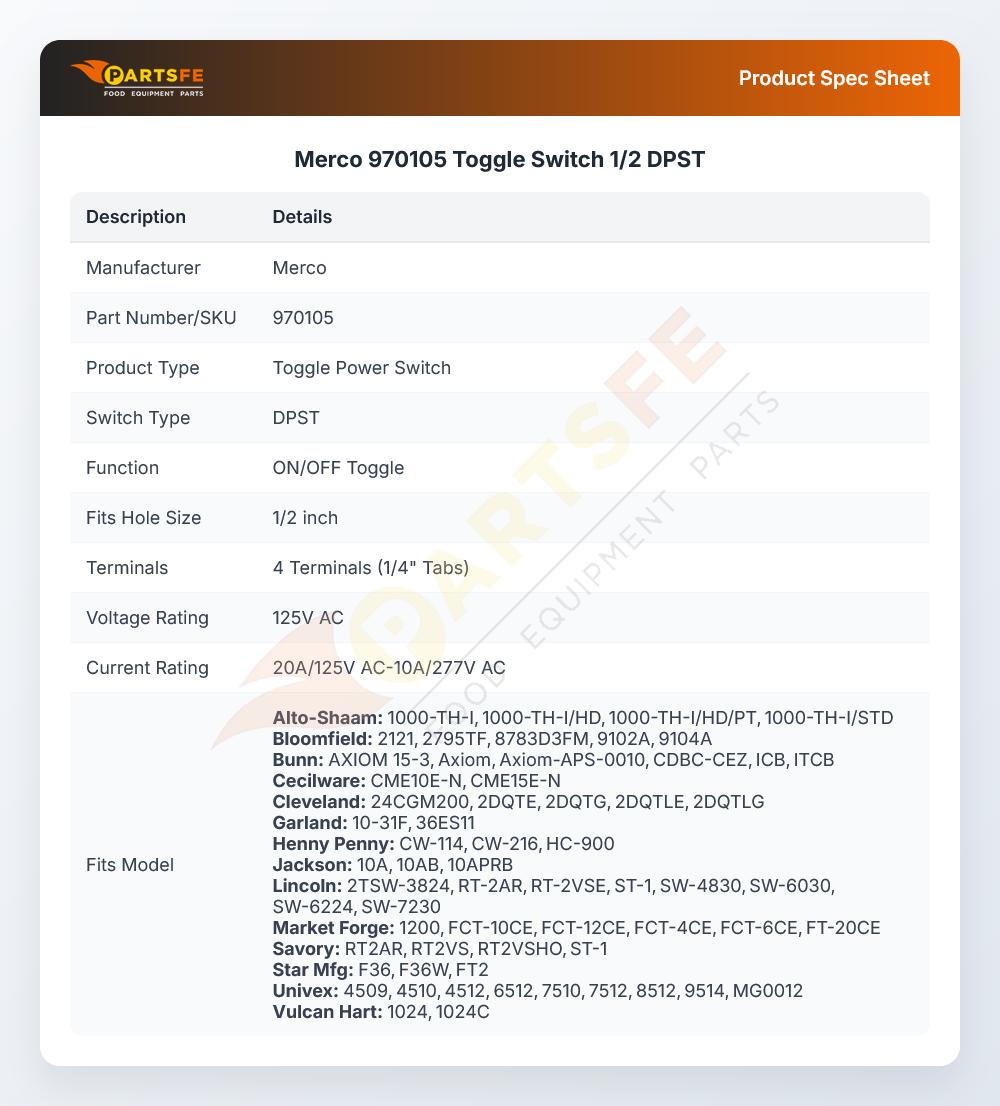

Specifications:

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw

Description

The Merco 970105 Toggle Switch 1/2" DPST is a two-pole, one throw it opens and closes two circuits at the same time by a single lever action. It is made to fit into a 1/2" panel aperture, which gives a user interface to toggle between ON and OFF power states. The switch is connected to the rest of the electrical system and coordinates the distribution of power as a component of the control circuitry. It is applied in cases where the dual circuit control is required.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.2 in
  • Height: 2.3 in
  • Width: 0.7 in

ALTO-SHAAM:

ALTSW-3528 SW-3528

BLOOMFIELD:

2E-30169 2E-30330 8554-5

BUNN-O-MATIC:

40763-0001 40763.0001 BU40763-0001 BU40763.0001

CECILWARE:

GML133A GML133F L133A L133F L299A

CLEVELAND:

2235100 CLE2235100 CLESK50056 SK50056

CRES COR:

0808-020 0808020 808-20 CRE808-20

CURTIS:

3375000147 WC-103

GARLAND:

1040999 2235100 GL1040999 GL2235100

GENERAL ELECTRIC:

XNC5X196

GRINDMASTER:

L299A

HENNY PENNY:

22198

HOBART:

00-340324-00006 00-825100-00010 00-87711-148-1 087711-148-1 340324-00006 340324-6 825100-00010 825100-10 87711-148-1 XNC5X196/340324-6

INTEDGE:

U651

JACKSON:

05930-301-22-18 157500 5930-301-22-18 59303012218 JAC157500

LINCOLN:

68117SP

MARKET FORGE:

10-6511 97-5011 S10-6511

MERCO:

970105SP

SAVORY:

14614 68117 68117SP

SOUTHBEND:

9110-1 SOU9110-1

STAR MFG:

200543 2E-200543 2E-30169 2E-30330 50169 50330 WS-50169 WS-50330

STERO:

WEL2E-30169

UNIVEX:

7120-009 7120009

VULCAN HART:

00-340324-00006 00-825100-00010 00-881970 30017 340324-00006 340324-6 825100-00010 825100-10 VH00-825100-00010 VH00-881970 VH30017 VH825100-10

WINSTON:

PS-2257 WINPS-2257

Step1: Turn off power at the main circuit breaker to prevent electric shock.

Step2: Remove the old switch (if applicable) and disconnect wires carefully.

Step3: Connect wires to the new switch terminals following the wiring diagram (DPST configuration).

Step4: Secure the switch into the panel or mounting hole.

Step5: Tighten screws and ensure stable placement.

Step6: Restore power and test operationality safely.

  • What maintenance is required for the Merco 970105 Toggle Switch?

    Inspect the toggle switch for secure electrical connections and stable mounting. Keep the surface clean to prevent grease or dust buildup affecting operation. Test switching response regularly. Ensure wiring insulation remains intact to maintain safe and proper electrical performance.

  • What are common issues with the Merco 970105 Toggle Switch?

    • Switch not turning equipment on/off.
    • Loose internal electrical contacts.
    • Intermittent power function.
    • Failure to maintain consistent circuit flow.
