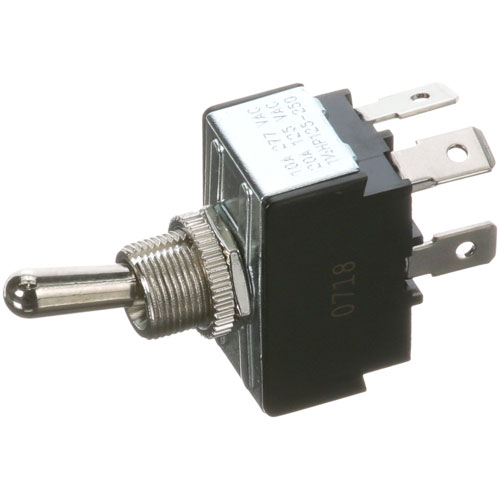

Jackson 5930-301-22-18 Dishmachine Toggle Switch DPST 4-Pins 1/2"

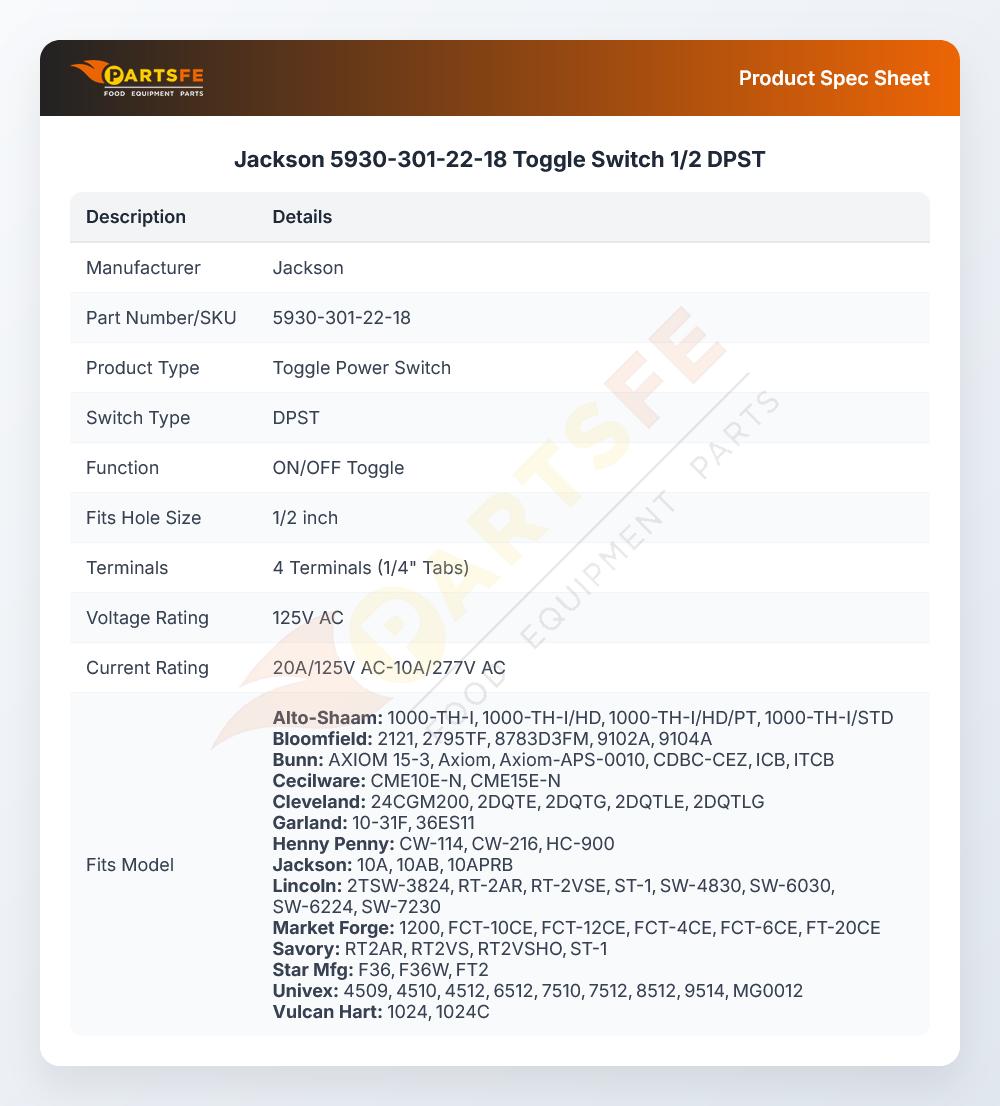

Specifications:
- [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
- [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
- Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
- Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
- 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
- 1000-Th-I,1000-Th-Ii, Ch-100.
- Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
- 750-Gdu/Pt, Gd-80, Gd-80P.
- Cecilware Warmer Ffw, Fw, Fwl.
- Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
- Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
- Henny Penny Fryer 680
- Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw
Description
Dimensions:
- Weight: 0.1 lbs
- Length: 1.2 in
- Height: 2.3 in
- Width: 0.7 in
ALTO-SHAAM:
BUNN-O-MATIC:
CURTIS:
GENERAL ELECTRIC:
GRINDMASTER:
HENNY PENNY:
HOBART:
00-340324-00006 00-825100-00010 00-87711-148-1 087711-148-1 340324-00006 340324-6 825100-00010 825100-10 87711-148-1 XNC5X196/340324-6
INTEDGE:
JACKSON:
05930-301-22-18 157500 59303012218 JAC157500
LINCOLN:
STERO:
WEL2E-30169
VULCAN HART:
00-340324-00006 00-825100-00010 00-881970 30017 340324-00006 340324-6 825100-00010 825100-10 VH00-825100-00010 VH00-881970 VH30017 VH825100-10
WINSTON:
PS-2257 WINPS-2257
Step1: Turn off power and unplug dishmachine to secure from shock.
Step2: Remove access panel and locate faulty old switch wiring.
Step3: Disconnect terminals safely.
Step4: Mount new toggle switch in same orientation, secure hardware.
Step5: Reconnect wires to matching terminals per diagram.
Step6: Reassemble panel and restore power.
Step7: Test switch operation; ensure proper function before use.
-
What maintenance is required for the Jackson 5930-301-22-18 Toggle Switch ?
Inspect Dishmachine contacts regularly for corrosion and pitting to ensure reliable switching. Clean with electrical contact cleaner and keep connections tight to prevent overheating. Proper maintenance reduces downtime and prevents intermittent power loss during dishmachine operation.
-
What are common issues with the Jackson 5930-301-22-18 Toggle Switch ?
- Dishmachine Contact wear causing intermittent switching.
- Loose terminals leading to power failure.
- Moisture ingress causing corrosion.
- Switch actuator sticking or failing.
- Electrical arcing under load.
- Overheating at terminals due to high current.
