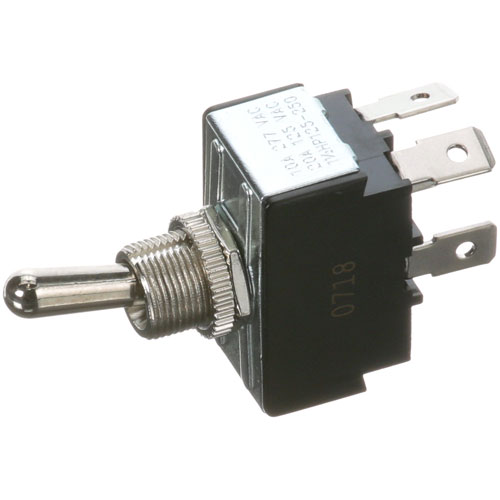

Vulcan Hart 00-825100-00010 Heat Rocker Switch DPST

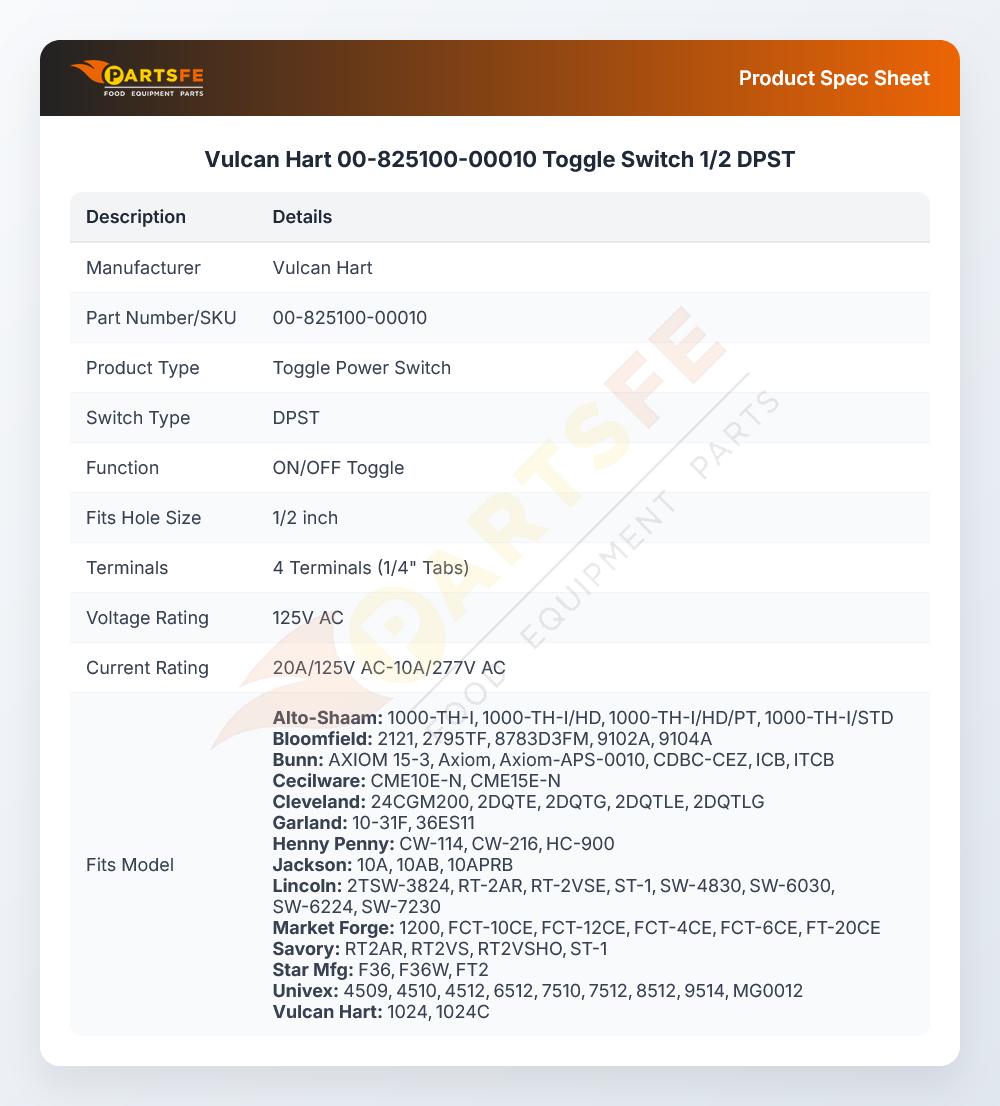

Specifications:
- [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
- [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
- Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
- Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
- 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
- 1000-Th-I,1000-Th-Ii, Ch-100.
- Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
- 750-Gdu/Pt, Gd-80, Gd-80P.
- Cecilware Warmer Ffw, Fw, Fwl.
- Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
- Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
- Henny Penny Fryer 680
- Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw
Description
Dimensions:
- Weight: 0.1 lbs
- Length: 1.2 in
- Height: 2.3 in
- Width: 0.7 in
ALTO-SHAAM:
BUNN-O-MATIC:
CURTIS:
GENERAL ELECTRIC:
GRINDMASTER:
HENNY PENNY:
HOBART:
00-340324-00006 00-87711-148-1 087711-148-1 340324-00006 340324-6 825100-00010 825100-10 87711-148-1 XNC5X196/340324-6
INTEDGE:
JACKSON:
05930-301-22-18 157500 5930-301-22-18 59303012218 JAC157500
LINCOLN:
STERO:
WEL2E-30169
VULCAN HART:
00-340324-00006 00-881970 30017 340324-00006 340324-6 825100-00010 825100-10 VH00-825100-00010 VH00-881970 VH30017 VH825100-10
WINSTON:
PS-2257 WINPS-2257
Step1: Disconnect the appliance from electrical power before servicing.
Step2: Remove the control panel cover to access the existing rocker switch.
Step3: Label and disconnect the wires from the old switch terminals.
Step4: Press or unscrew the switch from the mounting opening and remove it.
Step5: Install the new rocker switch securely into the panel opening.
Step6: Reconnect wiring correctly, replace the panel cover, and restore power to test operation.
-
What maintenance is required for the Vulcan Hart 00-825100-00010 Heat Rocker Switch?
Keep the switch clean and free of grease using a dry cloth. Check electrical connections regularly for tightness and wear to prevent overheating. Avoid moisture and excessive heat for safe operation.
-
What are common issues with the Vulcan Hart 00-825100-00010 Heat Rocker Switch?
- Contact wear causing intermittent switching.
- Arcing at terminals.
- Overheating under load.
- Loose or corroded connections.
- Rocker mechanism sticking or failing.
- Complete switch failure or no response.
- Inconsistent electrical continuity.
- Heat damage to internal contacts.
