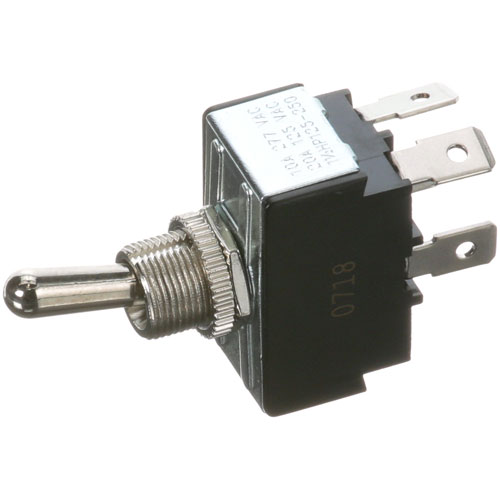

Hobart 087711-148-1 Toggle Switch DPST 1/2"

SKU: 087711-148-1 1-087711-148-1 Brand:
Hobart
Availability:
In Stock
(0)
$14.54 Price reduced from $17.00
Save $2.46
Have a Question? +1 (866) 863-0907

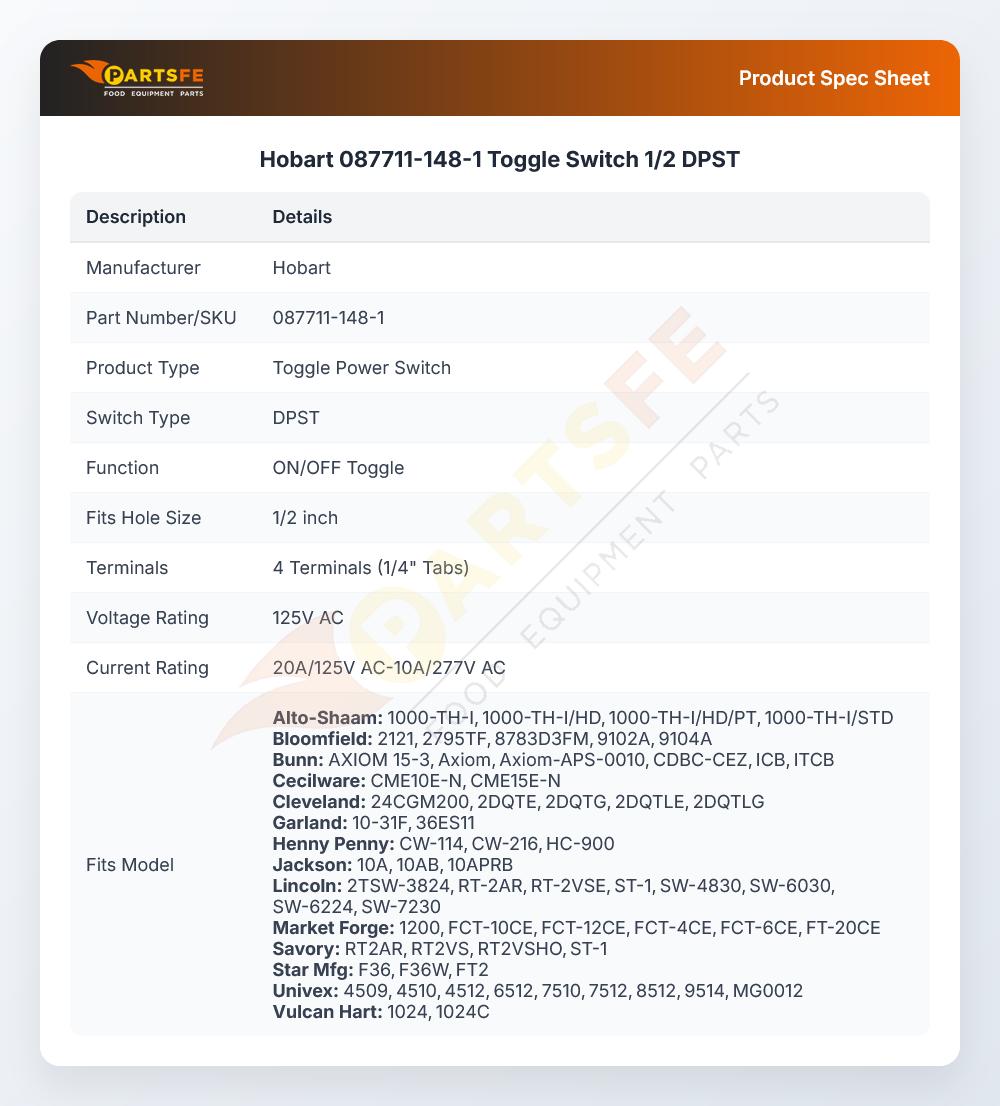

Specifications:

  • [ Toggle Switch] [ Fits Hole 1/2" ] [ On/Off ] [ Dpst ]
  • [ Terminals 4 (1/4" Tabs) ] [ Volt/Amp 20A/125-10A/277V ]
  • Alto-Shaam Oven Models Made In 1985 & After: 767-Sk,
  • Ch-50-1,Ch-75-1,Chs-76. Series (Made In 1985 & After):
  • 100-Th-I, 100-Th-Ii, 500-Th-Ii, 750-B, 750-Th-Ii,
  • 1000-Th-I,1000-Th-Ii, Ch-100.
  • Warmer Models Made In 1985 & After: 750-B, 750-Gdu,
  • 750-Gdu/Pt, Gd-80, Gd-80P.
  • Cecilware Warmer Ffw, Fw, Fwl.
  • Cleveland Braising Pan Set-10, Set-15, Series: Sem, Sel
  • Cres-Cor Warmer 747-(29,30,32,33), Hj, Hjr.
  • Henny Penny Fryer 680
  • Warmer Bw-4,6,8, Hc-900,902,903,906,908,942,943,944, Hcw

Description

The Hobart 087711-148-1 Toggle Switch 1/2" DPST is an electromechanical part that controls the passage of electrical current between two distinct electrical circuits by either opening or closing electrical contacts based on user action. It has a dual-pole single-throw design that enables paired loads to be controlled simultaneously heating elements or motors, by the same actuator. This switch is installed in the control panel of the equipment and is connected to the internal wiring harness to create a better interface.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.2 in
  • Height: 2.3 in
  • Width: 0.7 in

ALTO-SHAAM:

ALTSW-3528 SW-3528

BLOOMFIELD:

2E-30169 2E-30330 8554-5

BUNN-O-MATIC:

40763-0001 40763.0001 BU40763-0001 BU40763.0001

CECILWARE:

GML133A GML133F L133A L133F L299A

CLEVELAND:

2235100 CLE2235100 CLESK50056 SK50056

CRES COR:

0808-020 0808020 808-20 CRE808-20

CURTIS:

3375000147 WC-103

GARLAND:

1040999 2235100 GL1040999 GL2235100

GENERAL ELECTRIC:

XNC5X196

GRINDMASTER:

L299A

HENNY PENNY:

22198

HOBART:

00-340324-00006 00-825100-00010 00-87711-148-1 340324-00006 340324-6 825100-00010 825100-10 87711-148-1 XNC5X196/340324-6

INTEDGE:

U651

JACKSON:

05930-301-22-18 157500 5930-301-22-18 59303012218 JAC157500

LINCOLN:

68117SP

MARKET FORGE:

10-6511 97-5011 S10-6511

MERCO:

970105 970105SP

SAVORY:

14614 68117 68117SP

SOUTHBEND:

9110-1 SOU9110-1

STAR MFG:

200543 2E-200543 2E-30169 2E-30330 50169 50330 WS-50169 WS-50330

STERO:

WEL2E-30169

UNIVEX:

7120-009 7120009

VULCAN HART:

00-340324-00006 00-825100-00010 00-881970 30017 340324-00006 340324-6 825100-00010 825100-10 VH00-825100-00010 VH00-881970 VH30017 VH825100-10

WINSTON:

PS-2257 WINPS-2257

Step1: Turn off main power supply and unplug the appliance completely.

Step2: Remove the access panel and document existing wiring connections for reference.

Step3: Disconnect the old toggle switch carefully using insulated tools to avoid shock.

Step4: Install the new Hobart toggle switch ensuring terminals match the wiring diagram exactly.

Step5: Secure the switch firmly, reassemble the panel, restore power, and test operation safely.

Step6: Ensure all connections are tight and recheck grounding before final use.

  • What maintenance is required for the Hobart 087711-148-1 Toggle Switch?

    Regularly inspect the toggle switch for loose connections, wear, or corrosion on terminals. Clean dust or debris from the switch housing to ensure smooth operation. Ensure power is disconnected before servicing to avoid electrical hazards. Tighten mounting hardware periodically to maintain secure installation and accurate performance.

  • What are common issues with the Hobart 087711-148-1 Toggle Switch?

    • Intermittent electrical connection or failure to switch properly.
    • Worn internal contacts causing inconsistent operation.
    • Loose or damaged terminals affecting conductivity.
    • Toggle lever becoming stiff, stuck, or unresponsive.
    • Electrical arcing or overheating during use.
