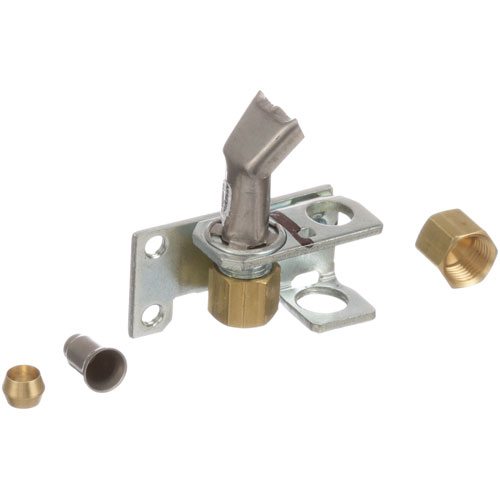

Garland 1028297 Pilot Assembly Natural Gas

SKU: 1028297 1-1028297 Brand:
Garland
Availability:
In Stock
(0)
$32.84 Price reduced from $58.65
Save $25.81
Have a Question? +1 (866) 863-0907

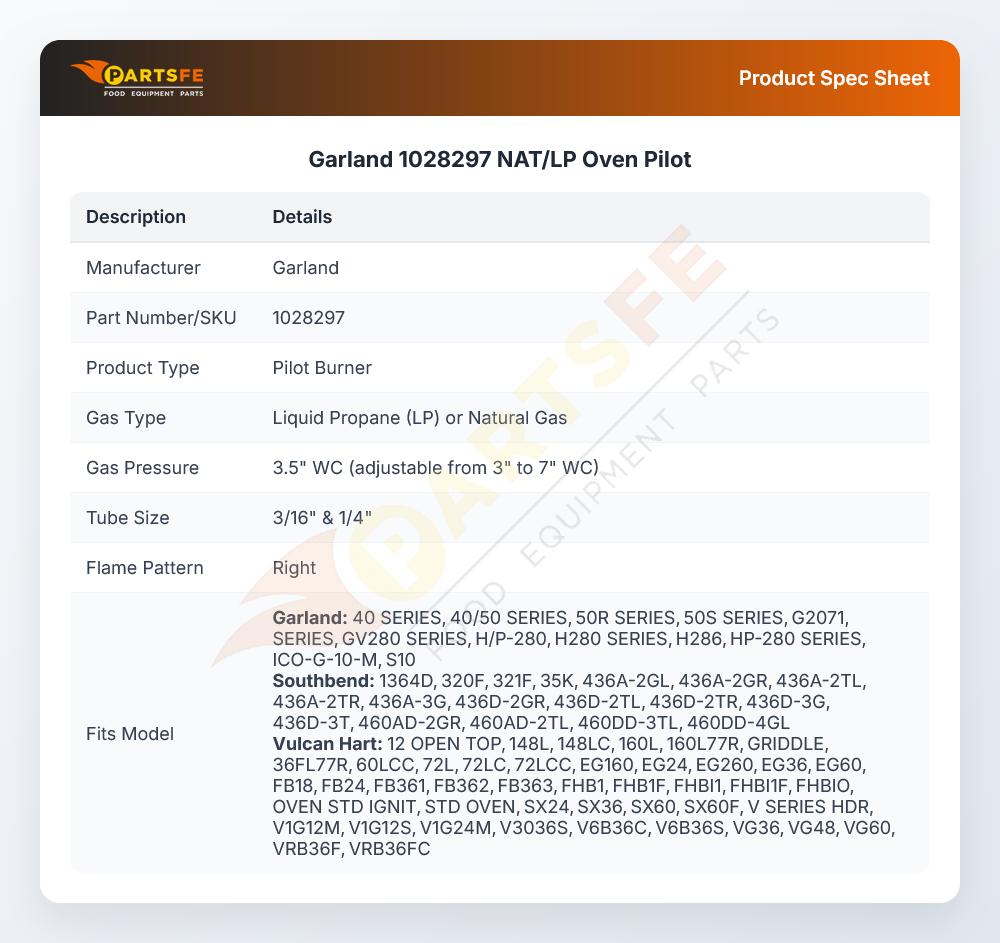

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

The Garland 1028297 Pilot Assembly Natural Gas is made to provide a continuous source of flame which triggers the main burner when the appliance is turned on. It works by passing the natural gas through its assembly whereby it combines with air to generate a controlled pilot flame to ensure a stable ignition performance. This assembly is actually installed in the compatible Garland cooking equipment, which is usually close to the burner area to make sure that the primary gas flow is ignited correctly and that the unit operates as intended.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 2 in

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028298 1028299 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2

SOUTHBEND:

1163869 1163870 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Turn off main gas supply and disconnect electrical power.

Step2: Remove access panel and detach old pilot assembly carefully.

Step3: Clean mounting area thoroughly and inspect gas line for damage.

Step4: Position new pilot assembly securely in correct orientation.

Step5: Connect gas line and thermocouple per manufacturer specifications.

Step6: Tighten fittings, ensure proper alignment and stability.

Step7: Restore gas, test ignition, and check carefully for leaks.

  • What maintenance is required for the Garland 1028297 Pilot Assembly?

    Regularly inspect and clean the pilot assembly to remove debris and carbon deposits that may affect ignition. Ensure gas connections remain tight and free of leaks. regular checks can maintain steady flame performance and better gas operation.

  • What are common issues with the Garland 1028297 Pilot Assembly?

    • Pilot light failing to ignite.
    • Weak or inconsistent flame.
    • Gas flow restriction due to clogging.
    • Thermocouple sensing failures
    • Flame extinguishing during use
