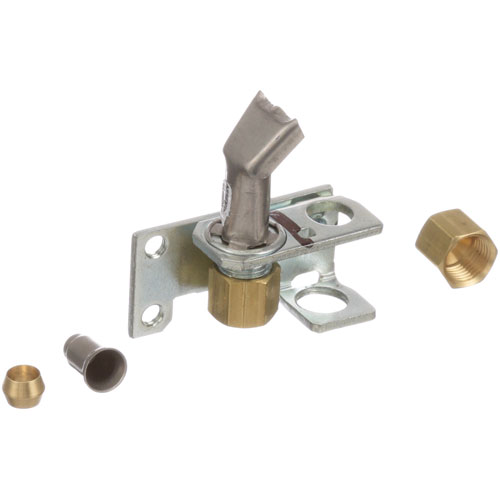

Garland 1028299 NAT/LP Oven Pilot

SKU: 1028299 1-1028299 Brand:
Garland
Availability:
In Stock
(1)
$32.84 Price reduced from $58.65
Save $25.81
Have a Question? +1 (866) 863-0907

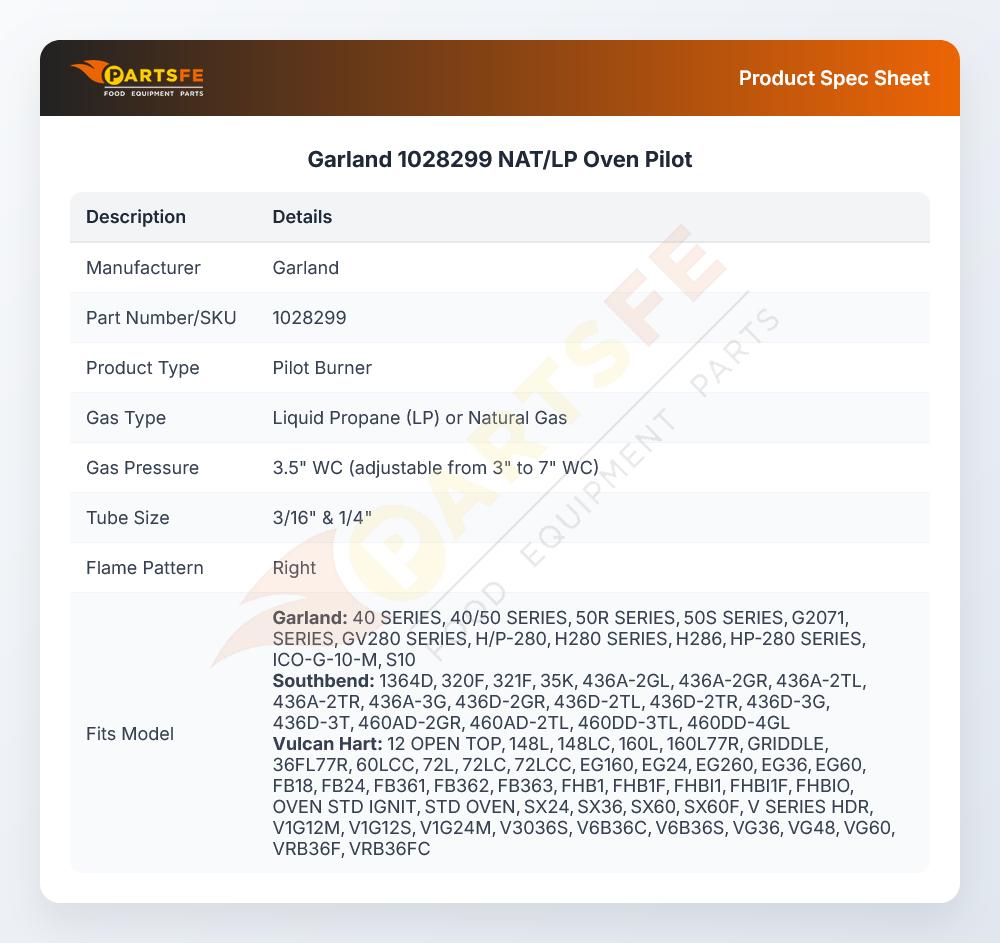

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

The Garland 1028299 NAT/LP Oven Pilot is a burner unit that is used in natural gas or liquid propane. This component produces a regulated flame that activates the main oven burner when heat is needed, with 3/16" and 1/4" tubing connections with a right-side flame pattern. It is installed in the burner compartment of the oven and connected to the gas supply and controls, which assist in making sure that the ignition and the burner operate steadily. It is an essential component of the gas ignition system of the commercial cooking machines.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 2 in

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028297 1028298 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2

SOUTHBEND:

1163869 1163870 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Turn off the gas supply and disconnect electrical power to the oven.

Step2: Remove the access panel to reach the existing pilot assembly.

Step3: Disconnect the tubing and wiring from the old pilot carefully.

Step4: Mount the new pilot in the same location and reconnect all connections securely.

Step5: Replace the panel, restore gas and power, then test ignition and flame operation.

  • What maintenance is required for the Garland 1028299 Oven Pilot?

    Regularly inspect the pilot for dirt, debris, or corrosion. Clean gently to maintain reliable ignition and proper flame. Proper maintenance ensures safe and consistent operation. Always turn off the gas supply before handling or cleaning.

  • What are common issues with the Garland 1028299 Oven Pilot?

    • Pilot flame extinguishing unexpectedly.
    • Delayed ignition when starting the oven.
    • Soot buildup around the pilot tip.
    • Improper flame shape affecting oven performance.
