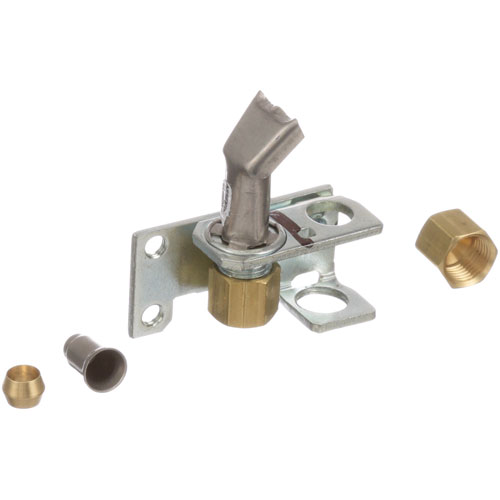

Hobart 412787-00001 Oven Pilot NAT/LP

SKU: 412787-00001 1-412787-00001 Brand:
Hobart
Availability:
In Stock
(0)
$32.84 Price reduced from $58.65
Save $25.81
Have a Question? +1 (866) 863-0907

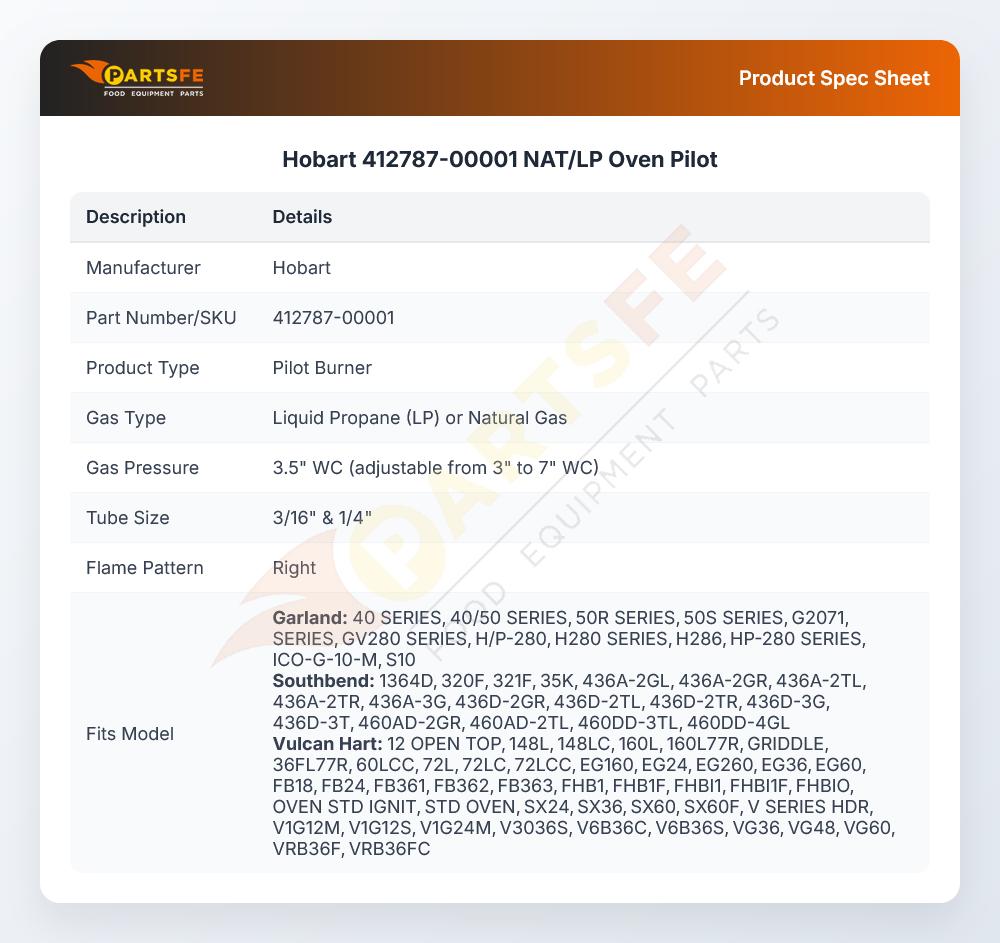

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

Hobart 412787-00001 Oven Pilot NAT/LP works on the concept of igniting a controlled flame, which turns on the main burner when the gas flow is turned on. It also has a fixed pilot flame, which is fed with natural gas or liquid propane, based on the equipment installation. This pilot is attached close to the burner section of the gas appliance cabinet. It is designed to accommodate ignition parts, and it aids in the sustenance of a constant contact of flames during start cycles. The assembly is linked to the gas lines and ignition equipment.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 2 in

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028297 1028298 1028299 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00002 412787-1 412787-2

SOUTHBEND:

1163869 1163870 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Turn off gas supply and disconnect electrical power to oven, allow unit to cool completely.

Step2: Remove access panel and carefully disconnect old pilot assembly, noting routing of tubing.

Step3: Install new pilot assembly securely, reconnect tubing and ensure proper alignment.

Step4: Restore gas supply, check for leaks using soapy solution, then relight pilot following manufacturer instructions.

Step5: Verify stable flame operation and secure panel before returning oven to service.

  • What maintenance is required for the Hobart 412787-00001 Pilot?

    Clean the pilot assembly regularly to remove carbon buildup and debris. Ensure proper gas flow and verify that the flame remains steady. Inspect connections for leaks or wear. Proper maintenance ensures secure ignition and consistent oven performance during operation.

  • What are common issues with the Hobart 412787-00001 Pilot?

    • Pilot not igniting or staying lit.
    • Clogged orifice restricting gas flow.
    • Weak or unstable flame causing ignition failure.
    • Gas leaks affecting safe operation.
