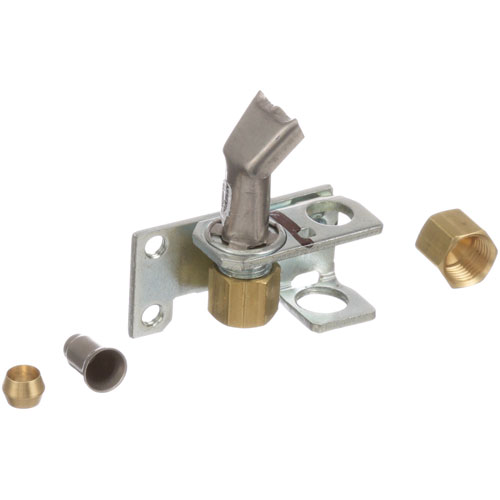

Southbend 1163870 Oven Pilot Assembly Propane

SKU: 1163870 1-1163870 Brand:
Southbend
Availability:
In Stock
(1)
$32.84 Price reduced from $58.65
Save $25.81
Have a Question? +1 (866) 863-0907

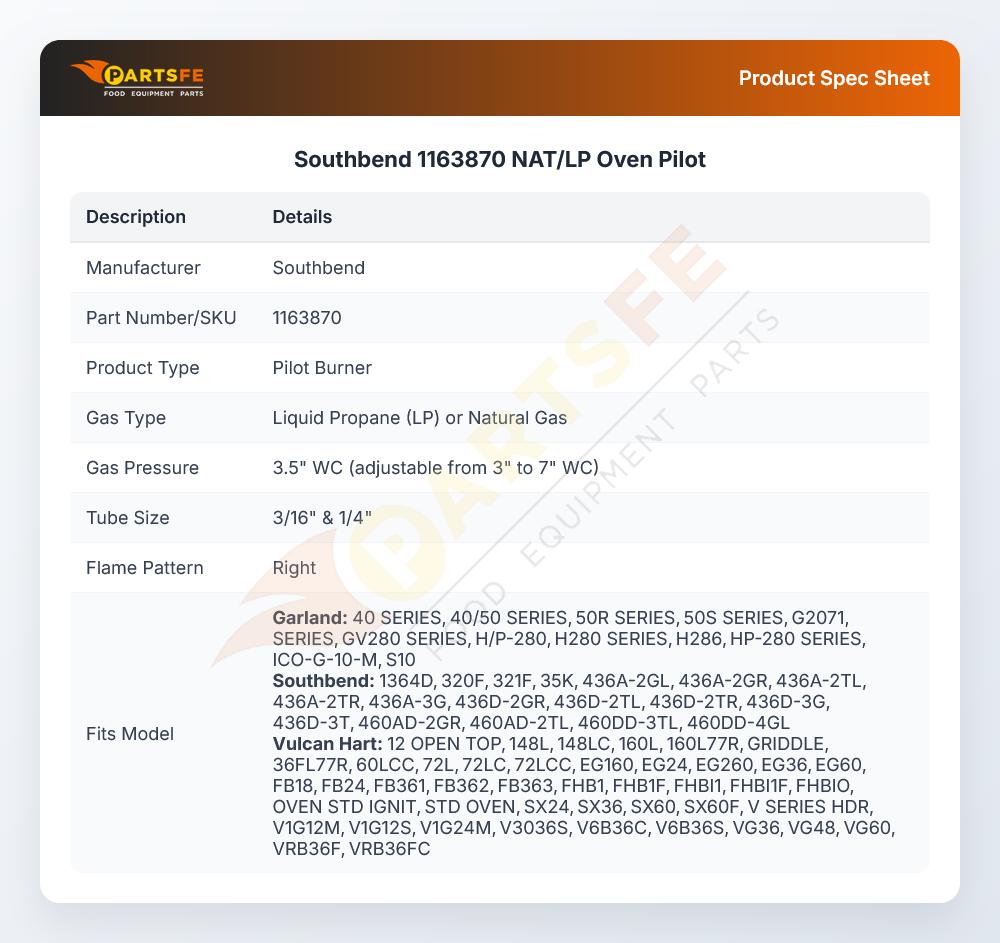

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

The Southbend 1163870 Oven Pilot Assembly Propane source for professional commercial kitchens. This pilot assembly produces a continuous small flame, which is needed to open the burner whenever the thermostat calls the heat during the cooking process. In practical cooking settings, the component is mounted close to the burner tube to give a constant supply of heat to the thermocouple to keep the safety valve open it to operate. It is the key point of the combustion cycle within the appliance system, which ensures the stability of temperature during large-volume service intervals.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 2 in

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028297 1028298 1028299 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2

SOUTHBEND:

1163869 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Turn off the oven gas and power before starting installation.

Step2: Remove the old pilot carefully from the burner assembly.

Step3: Inspect the mounting area and clean debris or dirt.

Step4: Install the new pilot in the same position.

Step5: Reconnect the gas line and wiring securely.

Step6: Restore gas and power supply.

Step7: Test ignition for proper flame and operation.

  • What maintenance is required for the Southbend 1163870 Pilot Assembly?

    Regularly clean the oven pilot assembly to remove soot, grease, and debris that can block the flame. Check for proper alignment and secure connections. Ensure safety by turning off the gas supply before inspection and avoid touching hot components.

  • What are the common issues with the Southbend 1163870 Pilot Assembly?

    • Pilot flame fails to ignite.
    • Weak or flickering flame.
    • Blocked or dirty pilot orifice.
    • Loose or worn connections.
