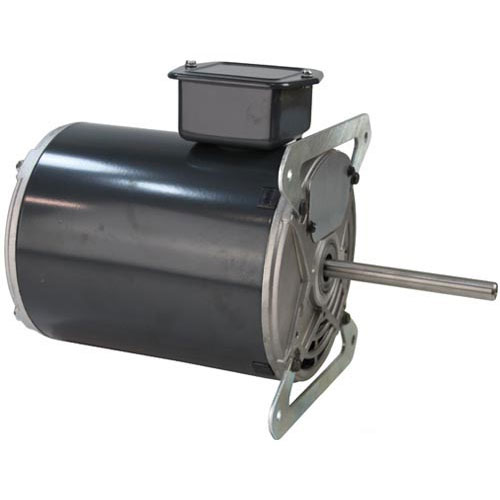

Southbend 1194780 OS MAKE LIST Range Blower Motor W/ 2 Flats 1PH 7.2/4.5AMP CW
Specifications:
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
Description
The Southbend 1194780 OS MAKE LIST range Blower Motor is an essential tool in the provision of air circulation in commercial cooking sections to improve the cooking process. This component rotates clockwise at 7.2/4.5 amps, and it is suitable for different Southbend models, which makes it easy to install. Its operation is based on air streaming which, in turn, gives uniform heat distribution and optimal results for cooking. Some of the advantages it highlighted are improved heat control through the stoves, less consumption of energy, and lastly removal of smoke and bad odor in the kitchen.
Dimensions:
- Weight: 23 lbs
- Length: 10.4 in
- Height: 7 in
- Width: 8.15 in
SOUTHBEND:
1175567 1175571 1177452 1188523 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367
Step1: Disconnect power and gas supply to range; ensure unit is cool; wear gloves before servicing.
Step2: Remove rear panel and access blower housing using screwdriver.
Step3: Disconnect wiring from old motor, label leads for reassembly.
Step4: Unscrew and remove motor assembly carefully.
Step5: Install new motor aligning flats, secure screws firmly.
Step6: Reconnect wiring per labels, ensure tight connections.
Step7: Restore power, test airflow and operation.
-
What maintenance is required for the Southbend 1194780 Blower Motor?
Clean dust and grease buildup from the motor housing and fan regularly. Inspect electrical connections, bearings, and mounting hardware for tightness and signs of wear. Ensure proper airflow, avoid overheating, and lubricate if manufacturer guidelines specify.
-
What are common issues with the Southbend 1194780 Blower Motor?
- Reduced airflow from clogged or imbalanced fan blades.
- Motor overheating during extended operation.
- Electrical faults or intermittent power loss.
- Excessive vibration from worn bearings or misalignment.
- Unusual noise from internal component wear.
