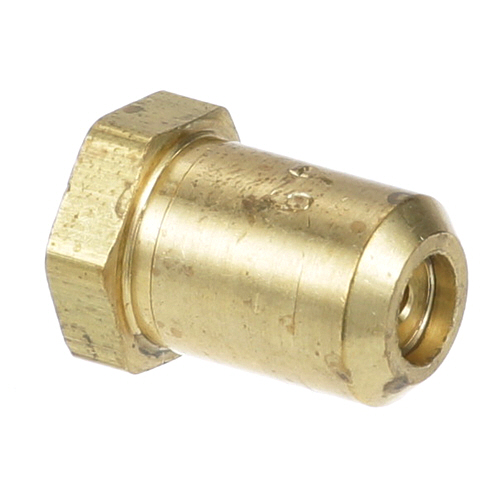

APW 2066849 Charbroiler Hood Orifice #49

SKU: 2066849 1-2066849 Brand:
APW
Availability:
In Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice #49
  • Imperial
  • Broiler Icb-4827, Icb-6027.
  • Series: Gd (Glowing Devil).
  • Range Series: Ihr.

Description

The APW 2066849 Charbroiler Hood Orifice shapes the gas flow to a burner by creating an opening of the proper size to restrict the flow of fuel until it reaches the combustion chamber to form the proper flame size and combustion properties for that burner's use. The orifice has a calibrated hole through which gas flows to regulate the volume to ensure the right amount of gas burns. It is fitted in the gas train at the burner or hood assembly of compatible equipment where the specified size of the orifice of #49 fits.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

APW WYOTT:

AS-2066849

ATOSA:

301040013

BAKERS PRIDE:

BKPR3043A BKPR3043X R3043A R3043X

GARLAND:

1020849 223242-49 G7266-49F GL1020849 GL223242-49 GLM8-49 M8-49

GLASS MAID:

8-49

HOBART:

00-719951-00049 19951-49 719951-00049 719951-49

IMPERIAL:

1700-49 2064 IMP1700-49 IMP2064

JADE RANGE:

46-213 460-213-000 460213000 4621300000

MAGIKITCH'N:

29-08-00323A 2908-0032300 MK29-08-00323A MK2908-0032300

SOUTHBEND:

1006449 1008749 SOU1006449 SOU1008749

STAR MFG:

2A-0032300

VULCAN HART:

00-719951-00049 19951-49 719951-00049 719951-49 VH00-719951-00049 VH19951-49 VH719951-00049 VH719951-49

Step1: Turn off gas supply and disconnect power to the appliance.

Step2: Allow the unit to cool completely before starting.

Step3: Locate and access the burner assembly panel.

Step4: Carefully remove the old orifice using a proper tool.

Step5: Install the new orifice, tightening securely without over-torquing.

Step6: Reassemble components and restore gas and power connections.

  • What maintenance is required for the APW 2066849 Burner Orifice?

    Clean the burner orifice regularly to prevent carbon buildup and ensure consistent gas flow. Inspect for clogging or corrosion during routine servicing. Use proper tools and ensure gas supply is shut off before handling for safety.

  • What are common issues with the APW 2066849 Burner Orifice?

    • Clogging from carbon buildup causing restricted gas flow and weak flame.
    • Corrosion or wear leading to irregular combustion and efficiency loss.
    • Incorrect orifice size causing uneven heating or burner ignition problems.
    • Blockage resulting in intermittent flame failure or shutdown.
