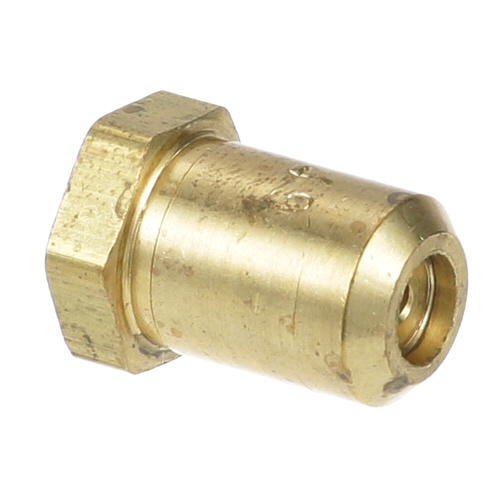

ATOSA 301040013 Burner Orifice #49

SKU: 301040013 1-301040013 Brand:
ATOSA
Availability:
In Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice #49
  • Imperial
  • Broiler Icb-4827, Icb-6027.
  • Series: Gd (Glowing Devil).
  • Range Series: Ihr.

Description

The ATOSA 301040013 Burner Orifice #49 is a gas metering part that controls the flow of fuel to one burner in commercial cooking equipment. The calibrated orifice of the number #49 regulates the amount of gas to pass into the burner tube. It clamps into the jet holder of the burner and it is directly connected to the gas delivery system of the appliance. In the combustion system, it aids in the balanced distribution of fuels and stable operation, which leads to even cooking performance and predictable surface temperatures when in use.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

APW WYOTT:

2066849 AS-2066849

BAKERS PRIDE:

2066849 BKPR3043A BKPR3043X R3043A R3043X

GARLAND:

1020849 223242-49 G7266-49F GL1020849 GL223242-49 GLM8-49 M8-49

GLASS MAID:

8-49

HOBART:

00-719951-00049 19951-49 719951-00049 719951-49

IMPERIAL:

1700-49 2064 IMP1700-49 IMP2064

JADE RANGE:

46-213 460-213-000 460213000 4621300000

MAGIKITCH'N:

29-08-00323A 2908-0032300 MK29-08-00323A MK2908-0032300

SOUTHBEND:

1006449 1008749 SOU1006449 SOU1008749

STAR MFG:

2A-0032300

VULCAN HART:

00-719951-00049 19951-49 719951-00049 719951-49 VH00-719951-00049 VH19951-49 VH719951-00049 VH719951-49

Step1: Turn off gas supply and disconnect power.

Step2: Allow equipment to cool completely.

Step3: Remove burner assembly cover using a proper tool.

Step4: Locate and unscrew the old orifice carefully.

Step5: Install the new orifice and tighten securely.

Step6: Reassemble burner components.

Step7: Restore gas and power, then check for leaks and proper flame.

  • What maintenance is required for the ATOSA 301040013 Burner Orifice?

    Clean the burner orifice regularly to prevent carbon buildup and clogging that can affect gas flow. Inspect for blockages, wear, or corrosion during regular service. Ensure proper alignment and secure fitting to maintain efficient combustion and better operation.

  • What are common issues with the ATOSA 301040013 Burner Orifice?

    • Clogging from grease or carbon buildup causing uneven flame.
    • Reduced gas flow leading to weak burner performance.
    • Corrosion or wear affecting combustion efficiency.
    • Misalignment resulting in improper ignition or flame instability.
