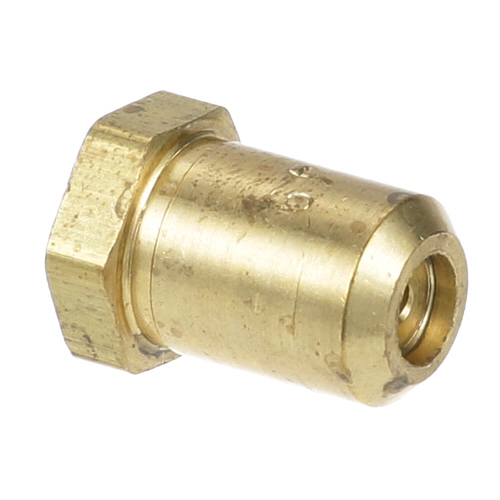

Southbend 1008749 Burner Orifice #49

SKU: 1008749 1-1008749 Brand:
Southbend
Availability:
In Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice #49
  • Imperial
  • Broiler Icb-4827, Icb-6027.
  • Series: Gd (Glowing Devil).
  • Range Series: Ihr.

Description

The Southbend 1008749 Burner Orifice #49 is an accurate Gas Orifice that can be used in compatible commercial ranges, broilers, and other cooking appliances. This orifice regulates the supply of natural gas or propane to the burner to maintain the proper supply of fuel to the burner and a steady supply of heat. Fitted in the burner manifold assembly between the gas valve and the burner port to ensure that the flame properties are maintained. It is a component of the gas delivery system that enhances the effective and dependable cooking performance in the professional kitchen equipment.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

APW WYOTT:

2066849 AS-2066849

ATOSA:

301040013

BAKERS PRIDE:

2066849 BKPR3043A BKPR3043X R3043A R3043X

GARLAND:

1020849 223242-49 G7266-49F GL1020849 GL223242-49 GLM8-49 M8-49

GLASS MAID:

8-49

HOBART:

00-719951-00049 19951-49 719951-00049 719951-49

IMPERIAL:

1700-49 2064 IMP1700-49 IMP2064

JADE RANGE:

46-213 460-213-000 460213000 4621300000

MAGIKITCH'N:

29-08-00323A 2908-0032300 MK29-08-00323A MK2908-0032300

SOUTHBEND:

1006449 SOU1006449 SOU1008749

STAR MFG:

2A-0032300

VULCAN HART:

00-719951-00049 19951-49 719951-00049 719951-49 VH00-719951-00049 VH19951-49 VH719951-00049 VH719951-49

Step1: Turn off gas supply and electrical power, allow burner to fully cool before service.

Step2: Remove burner assembly and carefully extract old orifice using the correct tool.

Step3: Inspect gas line threads, clean debris and ensure no blockages or damage are present.

Step4: Install new burner orifice and tighten securely without over-torquing connections.

Step5: Reassemble burner, verify proper alignment and secure all mounting components firmly in place.

Step6: Restore gas, check for leaks using soapy water, then light burner and test safely.

  • What maintenance is required for the Southbend 1008749 Burner Orifice?

    Regularly clean the orifice to prevent carbon buildup and blockages. Inspect for damage, corrosion, or deformation that can affect gas flow. Ensure proper seating and alignment during installation. Always shut off the gas supply before servicing to ensure safety.

  • What are common issues with the Southbend 1008749 Burner Orifice?

    • Clogged orifice causing uneven flame or low burner output.
    • Gas flow restriction leading to delayed ignition.
    • Corrosion or damage resulting in unstable flame performance.
    • Improper seating causing inconsistent burner operation.
