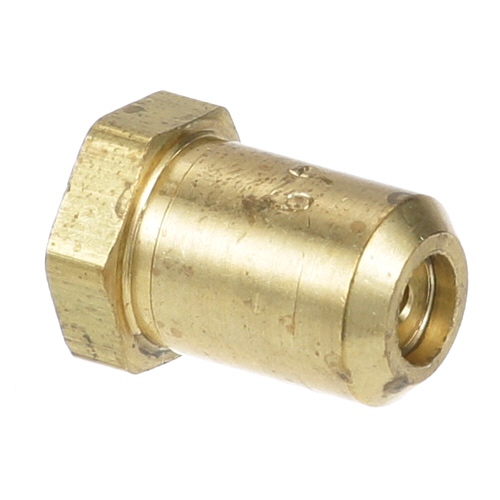

Garland M8-49 Charbroiler Burner Orifice #49

SKU: M8-49 1-M8-49 Brand:
Garland
Availability:
In Stock
(1)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice #49
  • Imperial
  • Broiler Icb-4827, Icb-6027.
  • Series: Gd (Glowing Devil).
  • Range Series: Ihr.

Description

The Garland M8-49 Charbroiler Burner Orifice #49 is a fine-tuning component that controls the amount of gas to the flame to maintain the flame size and heat production to produce uniform cooking performance. It is mounted inside the burner inlet and it places gas in front of the ignition to facilitate the proper combustion. This orifice is used in the system to keep the flames stable, evenly distribute the heat on the cooking surface, and ensure that the cooking temperatures remain controlled when the charbroiler is in use.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

APW WYOTT:

2066849 AS-2066849

ATOSA:

301040013

BAKERS PRIDE:

2066849 BKPR3043A BKPR3043X R3043A R3043X

GARLAND:

1020849 223242-49 G7266-49F GL1020849 GL223242-49 GLM8-49

GLASS MAID:

8-49

HOBART:

00-719951-00049 19951-49 719951-00049 719951-49

IMPERIAL:

1700-49 2064 IMP1700-49 IMP2064

JADE RANGE:

46-213 460-213-000 460213000 4621300000

MAGIKITCH'N:

29-08-00323A 2908-0032300 MK29-08-00323A MK2908-0032300

SOUTHBEND:

1006449 1008749 SOU1006449 SOU1008749

STAR MFG:

2A-0032300

VULCAN HART:

00-719951-00049 19951-49 719951-00049 719951-49 VH00-719951-00049 VH19951-49 VH719951-00049 VH719951-49

Step1: Turn off gas supply and allow system to cool completely before starting.

Step2: Remove burner assembly or access panel carefully to expose the orifice.

Step3: Unscrew old orifice using correct tool without damaging threads.

Step4: Install new orifice, tighten securely by hand then torque to spec.

Step5: Reassemble burner components and ensure proper alignment and fit.

Step6: Restore gas, perform leak test with soapy water; ensure ventilation for safety.

  • What maintenance is required for the Garland M8-49 Burner Orifice?

    Inspect the orifice regularly for carbon buildup or grease blockage and clean it using a fine brush or approved orifice cleaner. Ensure gas flow remains unobstructed and check alignment during servicing. Proper maintenance ensures stable flame performance and safe combustion operation.

  • What are common issues with the Garland M8-49 Burner Orifice?

    • Clogging from grease or carbon deposits restricting gas flow.
    • Irregular flame pattern due to partial blockage or wear.
    • Reduced burner efficiency caused by improper gas delivery.
    • Difficulty igniting burner from obstructed orifice opening.
