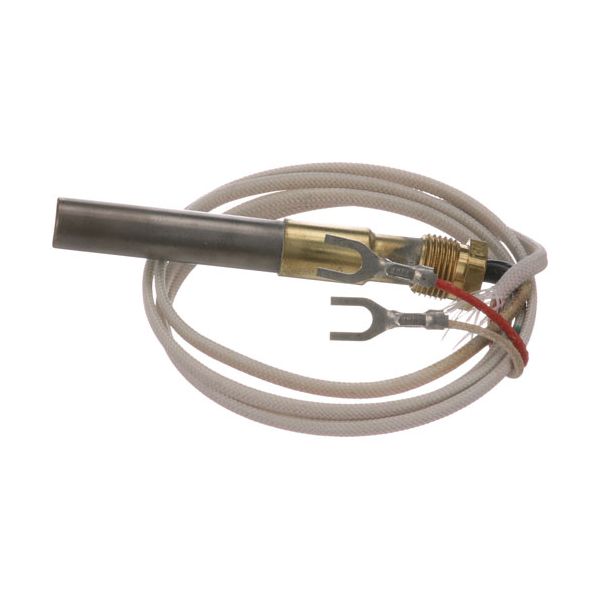

Keating 22567 Thermopile 2 Lead 36" 250-750 MV

Be the first to review this product
Special Price $64.48 Regular Price $83.75
In stock
SKU
22567
Add to Wish List
Fryer Parts, Deep Fryer Temperature Controls,
Manufacturer:
The Keating 22567 Thermopile is a two-lead voltage-generating sensor that is 36 inches long and has an output of 250-750 mV. It is used in compatible cooking equipment and senses the heat of pilot flames and transmits a voltage signal to the gas control module. It is installed between the pilot assembly and control board and helps in safe ignition by ensuring that there is a flame before the main burner is operated. It is a component of the safety control system, and it ensures that there is ignition and flame monitoring.

Dimensions

  • Length: 3.5 In
  • Width: 2.5 In
  • Height: 1 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/k/e/keating-22567-36-thermopile-2-lead-250-750-mv-48119-2.jpg

Product Notes

  • 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
  • Btu - 2 Burners~
  • 150,000 - 3 Burners)~
  • W/3 Probes (160,000
  • Btu - 3 Burners~
  • 200,000 - 4 Burners
  • Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Griddle Model 48Bfld
  • Southbend Fryer Gfs, 4Fr-45
  • Star Fryer 404A, 615Fa, 630Fa
  • Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
  • Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
  • Wells Grill, Gas
  • Wolf Fryer Wtf-35,
ADCRAFT:
AMERICAN RANGE:
A11102, AMRA11102
ATOSA:
BLOOMFIELD:
CLEVELAND:
20410, CLE20410
ENTR?E:
400043-1
GRINDMASTER:
IMPERIAL:
1096, IMP1096
JADE RANGE:
KEATING:
022770, 22567, 22770, 4186, KEA22567, KEA22770, KEA4186
MARKET FORGE:
SOUTHBEND:
STERO:
STA2T-42195, STA2T42195, STA42195
TRI-STAR:
300157, AS-300157, TRS300157
U-LINE:
1950-532, 1950-53B
Reviews
Write Your Own Review
You're reviewing:Keating 22567 Thermopile 2 Lead 36" 250-750 MV
Your Rating
FAQS
Customer Questions
What maintenance is required for the Unknown 22567 Thermopile 2 Lead 250-750 MV?

Keep the thermopile clean by gently removing carbon buildup from the pilot assembly. Inspect lead connections for looseness or corrosion and ensure proper flame contact. Regular checks ensure stable millivolt output and safe heating operation.

What are common issues with the Unknown 22567 Thermopile 2 Lead 250-750 MV?

  • Weak or fluctuating millivolt output.
  • Intermittent heating or burner shutdown.
  • Corroded or damaged thermopile leads.
  • Poor flame contact causing signal loss.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas and power to the appliance and allow it to cool.

Step2: Remove burner access panel to reach pilot assembly.

Step3: Disconnect old thermopile leads and carefully remove probe.

Step4: Install new thermopile in same mounting position near pilot flame.

Step5: Route leads to gas valve and reconnect securely to correct terminals.

Step6: Ensure probe is properly positioned in steady pilot flame.

Step7: Restore gas and power, then check stable flame and proper millivolt output operation.
