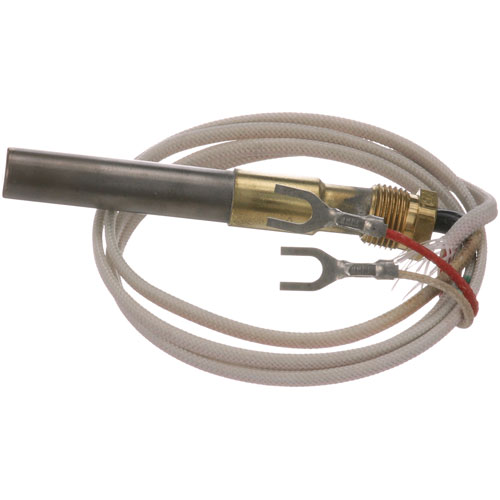

Atosa 301030006 Fryer 36" Thermopile 2-Lead 250-750 MV

Flame Detection:
Detects pilot flame heat through the sensing tip and converts the thermal response into a low-voltage electrical signal. This signal provides feedback to the gas safety control system, allowing it to verify flame presence during operation. Accurate positioning near the pilot burner helps maintain consistent flame sensing and supports proper burner operation.

Replacement Guidelines:
Replace the Fryer Thermocouple if it is damaged, bent, corroded, contaminated, or no longer provides reliable temperature sensing. The part number 301030006 and fryer thermocouple configuration should be verified before replacement to ensure the correct thermocouple is selected. Replace the thermocouple if deterioration affects temperature sensing, signal response, connection integrity, flame-control feedback, or normal fryer operation.

Common Failure Symptoms:

• Pilot flame is not consistently detected.
• Burner shuts down after pilot ignition.
• Repeated ignition or relighting attempts.
• Intermittent flame verification.
• Fryer heating operation is interrupted.

Equipment Compatibility:
The Atosa 301030006 Fryer Thermocouple is designed for compatible Atosa commercial fryers requiring this thermocouple configuration. Verify the equipment model number and manufacturer part number before purchasing to ensure the correct application.

Technical Specifications:
Brand: Atosa
Part Number: 301030006
Component Name: Thermocouple
Appliance Type: Commercial Fryer

Step1: Turn off gas supply to the fryer.

Step2: Access the pilot assembly inside the fryer cabinet.

Step3: Disconnect the two thermopile leads from the gas valve.

Step4: Remove the thermopile from the pilot bracket.

Step5: Install the new thermopile, reconnect leads securely, relight the pilot, and verify proper millivolt output.

• What maintenance is required for the Atosa 301030006 Thermopile?

  Inspect the thermopile regularly for grease buildup, corrosion, or loose connections that may reduce voltage output. Clean the sensor area gently to ensure accurate flame sensing and stable millivolt generation. Verify secure wiring at both leads to prevent intermittent gas control issues. Always shut off gas and power before servicing to maintain safe operation.

• What are common issues with the Atosa 301030006 Thermopile?

  • Inaccurate temperature readings.
  • Loose or disconnected leads.
  • Intermittent heating or failure to ignite.
  • Corrosion from oil or moisture exposure.

• How does the Atosa 301030006 support fryer operation?

  It detects the heat produced by the burner flame and provides the corresponding thermoelectric response for the fryer safety-control system.

• Can thermocouple positioning affect flame detection?

  Yes. The sensing tip needs to remain correctly positioned in relation to the pilot flame so it can produce a consistent thermal response.

• What can cause a thermocouple to produce a weak signal?

  Heat exposure, oxidation, carbon buildup, physical damage, loose connections, and normal component wear can reduce its electrical output.

• Why does the burner shut down when the pilot flame is lost?

  When the pilot flame is lost, the thermocouple signal decreases, allowing the gas safety system to interrupt gas flow and prevent continued burner operation.

• How should the Atosa 301030006 Fryer Thermocouple be maintained?

  Inspect the thermocouple regularly for dirt, corrosion, physical damage, or improper positioning, and keep the sensing area clean according to the manufacturer's service procedures to help maintain reliable temperature sensing.
