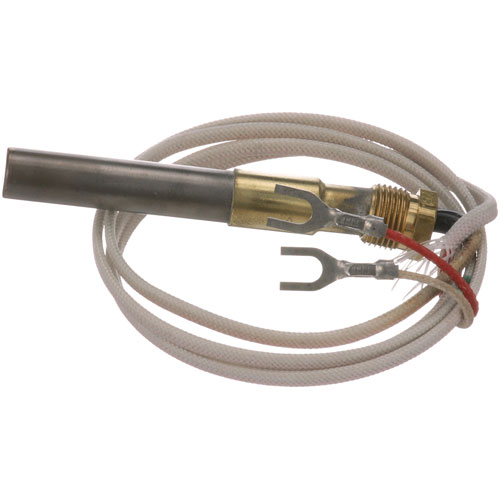

Star Mfg 2J-Y9270 Fryer Thermopile 2 Lead 250-750 MV 36"L

SKU: 2J-Y9270 1-2J-Y9270 Brand:
Star Mfg
Availability:
In Stock
(0)
$64.48 Price reduced from $83.75
Save $19.27
Have a Question? +1 (866) 863-0907

Specifications:

  • 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
  • Btu - 2 Burners~
  • 150,000 - 3 Burners)~
  • W/3 Probes (160,000
  • Btu - 3 Burners~
  • 200,000 - 4 Burners
  • Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Griddle Model 48Bfld
  • Southbend Fryer Gfs, 4Fr-45
  • Star Fryer 404A, 615Fa, 630Fa
  • Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
  • Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
  • Wells Grill, Gas
  • Wolf Fryer Wtf-35,

Description

Star Mfg 2J-Y9270 Fryer Thermopile 2 Lead 36" is a temperature sensor that is installed in commercial gas fryers to transform heat energy in the pilot flame into electrical energy. This thermopile produces the voltage to drive the gas valve and to keep the burner running at a steady rate. It is used in restaurant and food service fryers and is essential in maintaining a constant temperature and safe ignition. It has a two-lead design and a length of 36 inches that enable it to be consistently connected to the fryer control system to manage the heat effectively.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.5 in
  • Height: 1 in
  • Width: 2.5 in

ADCRAFT:

21424

AMERICAN RANGE:

A11102 AMRA11102

ATOSA:

301030006

BLOOMFIELD:

2T-42195

CECILWARE:

F178A F178AL F178F GMF178A GMF178F

CLEVELAND:

20410 CLE20410

DEAN:

810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171

ENTR?E:

400043-1

FRYMASTER:

810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171 FM810-0159 FM810-0617-1 FM810-06171 FM8100159 FM8100617-1 FM81006171

GARLAND:

2525-1 G02525-1 GL1292900 GL2525-1 GLG02525-1

GRINDMASTER:

F178A F178AL

GROEN:

1126 GR001126 GR1126

HOBART:

00-410839-00004 00-497301-00001 00-721027-00001 00-722158 21027-1 410839-00004 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158

IMPERIAL:

1096 IMP1096

JADE RANGE:

8800000012

KEATING:

022770 22567 22770 4186 KEA22567 KEA22770 KEA4186

LANG:

2J-80504-04 80504-04

MARKET FORGE:

93-0189

SOUTHBEND:

1182154 SOU1182154

STAR MFG:

2J-1182154 2J-80504-04 2T-42195 2T42195 42195 4T42195 62195 WS-62195 Y9270

STERO:

STA2T-42195 STA2T42195 STA42195

TRI-STAR:

300157 AS-300157 TRS300157

U-LINE:

1950-532 1950-53B

VULCAN HART:

00-410839-00004 00-497301-00001 00-721027-00001 00-722158 110839-4 21027-1 33681-12 410839-00004 410839-2 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158 VH110839-4 VH33681-12 VH410839-2 VH410839-4 VH497301-1

Step1: Turn off gas/electric and allow fryer to cool completely.

Step2: Remove access panel and disconnect old thermopile leads from gas valve.

Step3: Position new thermopile in pilot bracket ensuring flame contact.

Step4: Secure mounting and reconnect leads to correct terminals.

Step5: Restore panel, turn on gas, light pilot, and test voltage output.

Step6: Check for stable flame, verify millivolt reading, and ensure no gas leaks before full operation.

  • What maintenance is required for the Star Mfg 2J-Y9270 Thermopile?

    Inspect the fryer thermopile regularly for grease buildup or soot that may reduce voltage output. Clean the probe gently to maintain proper flame contact. Check lead wires for damage or looseness. Ensure the pilot flame is steady and correctly positioned for safe operation.

  • What are common issues with the Star Mfg 2J-Y9270 Thermopile?

    • Low millivolt output preventing the fryer from staying lit.
    • Pilot flame not properly heating the thermopile.
    • Grease or carbon buildup affecting performance.
    • Worn or damaged leads causing intermittent operation.
