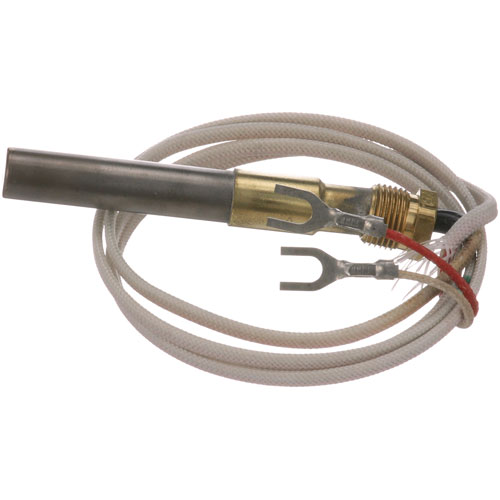

Tri-Star 300157 Fryer 36" Thermopile 2 Lead 250°F-750°F MV
Specifications:
- 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
- Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
- Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
- Btu - 2 Burners~
- 150,000 - 3 Burners)~
- W/3 Probes (160,000
- Btu - 3 Burners~
- 200,000 - 4 Burners
- Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
- Imperial Fryer Series: If, Ihr, Ir.
- Keating Griddle Model 48Bfld
- Southbend Fryer Gfs, 4Fr-45
- Star Fryer 404A, 615Fa, 630Fa
- Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
- Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
- Wells Grill, Gas
- Wolf Fryer Wtf-35,
Description
Dimensions:
- Weight: 0.2 lbs
- Length: 3.5 in
- Height: 1 in
- Width: 2.5 in
ADCRAFT:
AMERICAN RANGE:
A11102 AMRA11102
ATOSA:
BLOOMFIELD:
CLEVELAND:
20410 CLE20410
ENTR?E:
400043-1
FRYMASTER:
810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171 FM810-0159 FM810-0617-1 FM810-06171 FM8100159 FM8100617-1 FM81006171
GARLAND:
HOBART:
00-410839-00004 00-497301-00001 00-721027-00001 00-722158 21027-1 410839-00004 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158
IMPERIAL:
1096 IMP1096
JADE RANGE:
LANG:
MARKET FORGE:
SOUTHBEND:
STAR MFG:
2J-1182154 2J-80504-04 2J-Y9270 2T-42195 2T42195 42195 4T42195 62195 WS-62195 Y9270
STERO:
STA2T-42195 STA2T42195 STA42195
TRI-STAR:
AS-300157 TRS300157
U-LINE:
1950-532 1950-53B
Step1: Ensure gas supply is shut off and wear heat-resistant gloves before servicing.
Step2: Turn off gas/electric supply and allow fryer to cool completely.
Step3: Remove front panel and access thermopile assembly.
Step4: Disconnect old thermopile leads, noting polarity and routing.
Step5: Install new thermopile, secure mounting, and reconnect wires.
Step6: Restore power, relight pilot, and check flame signal and temperature range.
Step7: Test ignition and confirm stable pilot flame before closing panel.
-
What maintenance is required for the Tri-Star 300157 Thermopile?
Regularly inspect the fryer thermopile for soot, grease buildup, or corrosion that can affect voltage output. Clean the sensing tip carefully and ensure proper flame contact. Check the leads for damage or looseness. Turn off gas before servicing to maintain safety.
-
What are common issues with the Tri-Star 300157 Thermopile?
- Pilot light not staying lit during fryer operation.
- Loose or damaged leads interrupting voltage transfer.
- Inconsistent burner heating or sudden shutdowns.
- Poor flame contact reducing thermopile performance.
- Corrosion or soot buildup affecting signal generation.
