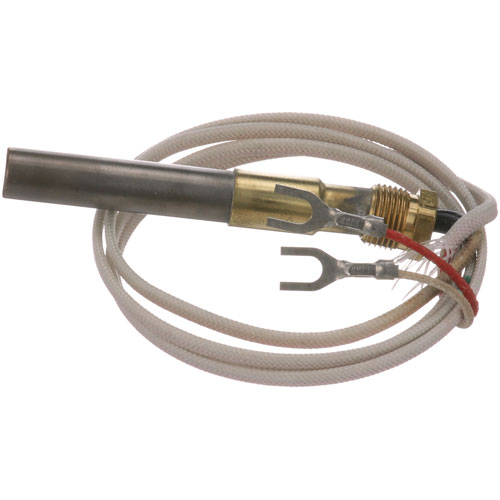

Keating 22567 Thermopile 2 Lead 36" 250-750 MV

SKU: 22567 1-22567 Brand:
Keating
Availability:
In Stock
(0)
$64.48 Price reduced from $83.75
Save $19.27
Have a Question? +1 (866) 863-0907

Specifications:

  • 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
  • Btu - 2 Burners~
  • 150,000 - 3 Burners)~
  • W/3 Probes (160,000
  • Btu - 3 Burners~
  • 200,000 - 4 Burners
  • Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Griddle Model 48Bfld
  • Southbend Fryer Gfs, 4Fr-45
  • Star Fryer 404A, 615Fa, 630Fa
  • Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
  • Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
  • Wells Grill, Gas
  • Wolf Fryer Wtf-35,

Description

The Keating 22567 Thermopile is a two-lead voltage-generating sensor that is 36 inches long and has an output of 250-750 mV. It is used in compatible cooking equipment and senses the heat of pilot flames and transmits a voltage signal to the gas control module. It is installed between the pilot assembly and control board and helps in safe ignition by ensuring that there is a flame before the main burner is operated. It is a component of the safety control system, and it ensures that there is ignition and flame monitoring.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.5 in
  • Height: 1 in
  • Width: 2.5 in

ADCRAFT:

21424

AMERICAN RANGE:

A11102 AMRA11102

ATOSA:

301030006

BLOOMFIELD:

2T-42195

CECILWARE:

F178A F178AL F178F GMF178A GMF178F

CLEVELAND:

20410 CLE20410

DEAN:

810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171

ENTR?E:

400043-1

FRYMASTER:

810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171 FM810-0159 FM810-0617-1 FM810-06171 FM8100159 FM8100617-1 FM81006171

GARLAND:

2525-1 G02525-1 GL1292900 GL2525-1 GLG02525-1

GRINDMASTER:

F178A F178AL

GROEN:

1126 GR001126 GR1126

HOBART:

00-410839-00004 00-497301-00001 00-721027-00001 00-722158 21027-1 410839-00004 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158

IMPERIAL:

1096 IMP1096

JADE RANGE:

8800000012

KEATING:

022770 22770 4186 KEA22567 KEA22770 KEA4186

LANG:

2J-80504-04 80504-04

MARKET FORGE:

93-0189

SOUTHBEND:

1182154 SOU1182154

STAR MFG:

2J-1182154 2J-80504-04 2J-Y9270 2T-42195 2T42195 42195 4T42195 62195 WS-62195 Y9270

STERO:

STA2T-42195 STA2T42195 STA42195

TRI-STAR:

300157 AS-300157 TRS300157

U-LINE:

1950-532 1950-53B

VULCAN HART:

00-410839-00004 00-497301-00001 00-721027-00001 00-722158 110839-4 21027-1 33681-12 410839-00004 410839-2 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158 VH110839-4 VH33681-12 VH410839-2 VH410839-4 VH497301-1

Step1: Shut off gas and power to the appliance and allow it to cool.

Step2: Remove burner access panel to reach pilot assembly.

Step3: Disconnect old thermopile leads and carefully remove probe.

Step4: Install new thermopile in same mounting position near pilot flame.

Step5: Route leads to gas valve and reconnect securely to correct terminals.

Step6: Ensure probe is properly positioned in steady pilot flame.

Step7: Restore gas and power, then check stable flame and proper millivolt output operation.

  • What maintenance is required for the Unknown 22567 Thermopile 2 Lead 250-750 MV?

    Keep the thermopile clean by gently removing carbon buildup from the pilot assembly. Inspect lead connections for looseness or corrosion and ensure proper flame contact. Regular checks ensure stable millivolt output and safe heating operation.

  • What are common issues with the Unknown 22567 Thermopile 2 Lead 250-750 MV?

    • Weak or fluctuating millivolt output.
    • Intermittent heating or burner shutdown.
    • Corroded or damaged thermopile leads.
    • Poor flame contact causing signal loss.
