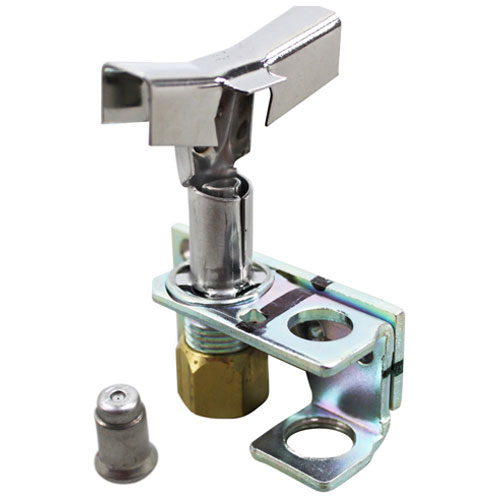

ROYAL RANGE 3231 NAT/LP 3-Way Flame Pilot 1/4" Tube

SKU: 3231 1-3231 Brand:
ROYAL RANGE
Availability:
In Stock
(1)
$54.39 Price reduced from $70.64
Save $16.25
Have a Question? +1 (866) 863-0907

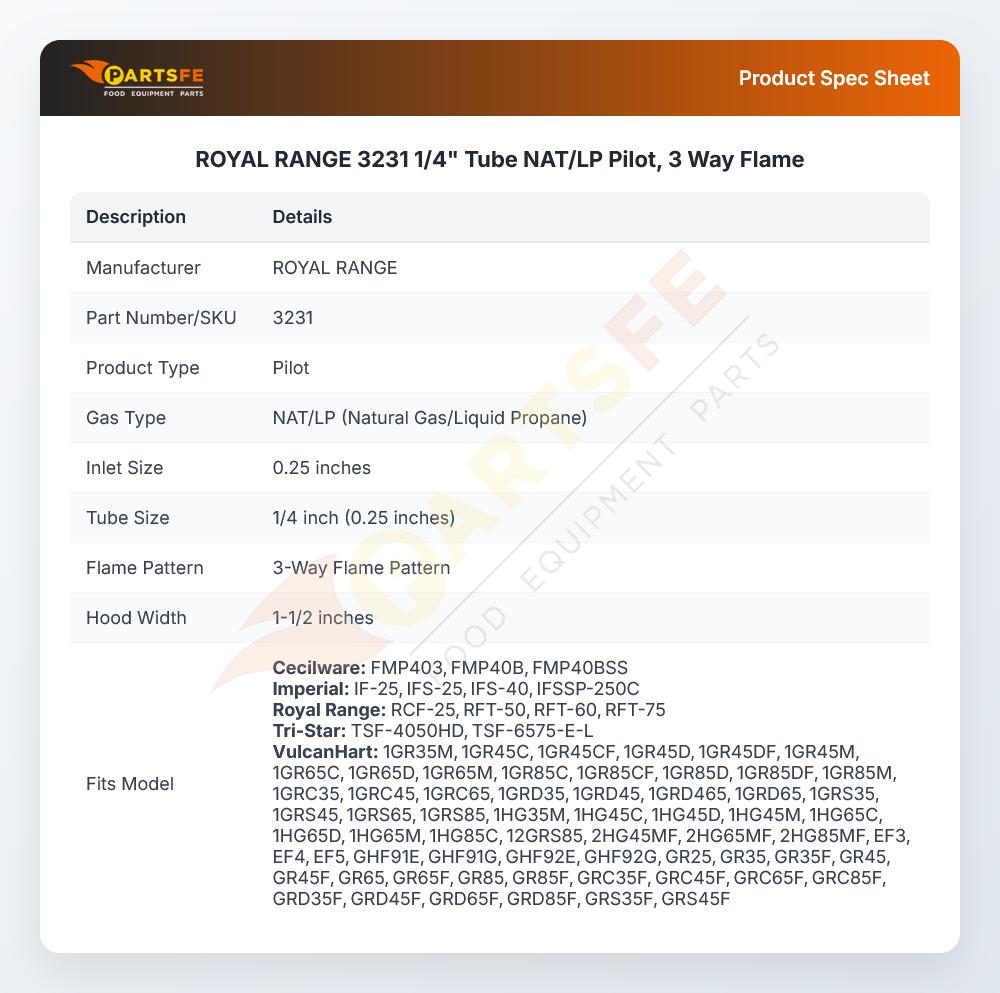

Specifications:

  • Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
  • Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
  • Nat Orifice Pre-Installed # 26-1555, .018
  • Lp Orifice Included # 26-1554, .010
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Imperial Fryer Series: If, Ihr, Ir.
  • Vulcan Hart
  • Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
  • Series: 7400, 7500, 7800 (Depending On Date Of
  • Model). Series: Ef
  • 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
  • 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
  • Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F

Description

The Royal Range 3231 NAT/LP 3-Way Flame Pilot is an igniter designed to be used in gas cooking devices that are compatible, such as fryers and natural gas or liquid propane ranges. It has a 1/4" tube connection with a three-way flame pattern that allows the formation of a steady pilot flame that can be counted on to start the main burners when needed. The pilot is installed in the burner assembly and linked to the gas supply and control of the appliance aiding in safe start-up and consistent burner operation in the foodservice operations.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.75 in
  • Height: 2.5 in
  • Width: 2 in

CECILWARE:

F179A F179A/F180A F179F F180A F180F GMF180A GMF180F

GRINDMASTER:

180A F179A F179A/F180A F179F F180A F180F

HOBART:

00-412212-00001 00-412212-00002 00-412212-00007 00-412212-1/2/7 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 511467 721028-00001 721028-1

IMPERIAL:

0310 1095-16 1095-26 IMP1095-16 IMP1095-26

ROYAL RANGE:

3232

TRI-STAR:

300231 TRS300231 TS-1095-16 TS-1095-26

U-LINE:

1830-491 6CH14-10

VULCAN HART:

00-412212-00001 00-412212-00002 00-412212-00007 00-412212-1/2/7 00-4212212-00002 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 721028-00001 721028-1 VH112212-1 VH112212-2 VH412212-1 VH412212-2 VH412212-7

Step1: Turn off the gas supply and ensure the appliance is cool.

Step2: Open the burner compartment to access pilot assembly.

Step3: Disconnect existing pilot tubing and fittings.

Step4: Remove the old pilot unit from mounting bracket.

Step5: Install the new pilot and secure all connections tightly, and close the burner compartment.

Step6: Restore gas, check for leaks, and test flame stability.

  • What maintenance is required for the Royal Range 3231 NAT/LP Pilot?

    Regularly clean the pilot tube and flame ports to remove soot and debris. Check gas connections for tightness and inspect for leaks. Proper maintenance ensures consistent flame, safe ignition, and reliable appliance operation.

  • What are common issues with the Royal Range 3231 NAT/LP Pilot?

    • Weak or inconsistent flame.
    • Clogged flame ports causing flame obstruction.
    • Corrosion or wear on the pilot tube.
    • Burner misalignment affecting ignition.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Reliable Valve
    Cleme —

    Pilot delivers exceptional service effortlessly
